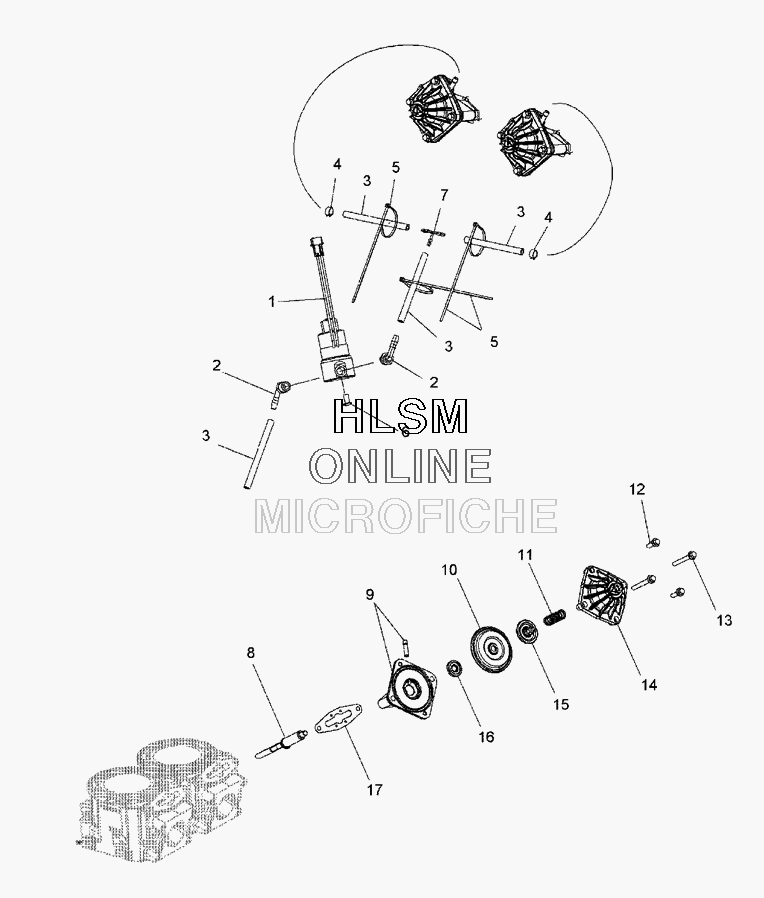

EXHAUST VALVES W/SOLENOID для Polaris 600 IQ TOURING AND EURO (S09PT6HS/HE) - 2009 года выпуска
-
№АртикулНазвание
-
14011244 SOLENOID-EV, N/C, 1/4 DIA.SOLENOID-EV, N/C, 1/4 DIA.
-
27050000 FITTING-1/4''NPT TO 1/4'' BARB90°FITTING-1/4''NPT TO 1/4'' BARB90°
-
38450040-600 LINE FUEL, 1/4 ID (600 CM.)LINE FUEL, 1/4 ID (600 CM.)
-
47080003 CLAMP, HOSECLAMP, HOSE
-
57080138 CABLE TIECABLE TIE
-
67518321 BOLT-#10-32X3/8, PAN, TORXBOLT-#10-32X3/8, PAN, TORX
-
77052075 FITTING, TEEFITTING, TEE
-
85135430 VALVE-GUILLOTINE, EXH 600 SDIVALVE-GUILLOTINE, EXH 600 SDI
-
91203166 ASM-BASE EXH VALVE W/FITTINGASM-BASE EXH VALVE W/FITTING
-
97052145 FITTINGFITTING
-
105412733 BELLOWS-EXH, RIBSBELLOWS-EXH, RIBS
-
117041704-04 SPRING, PURPLESPRING, PURPLE
-
127516820 SCREWSCREW
-
137517932 SCR-M6X1.0X50.0 HX/FL-YDSCR-M6X1.0X50.0 HX/FL-YD
-
141202640 ASM-HOUSING W/BUSHINGASM-HOUSING W/BUSHING
-
155631687 CAP/NUT, BELLOWS-HC ANODIZEDCAP/NUT, BELLOWS-HC ANODIZED
-
165135163 WASHER-BELLOWS, EXH VALVE, DOMWASHER-BELLOWS, EXH VALVE, DOM
-
175812925 GASKET-BASE EXH VALVEGASKET-BASE EXH VALVE
