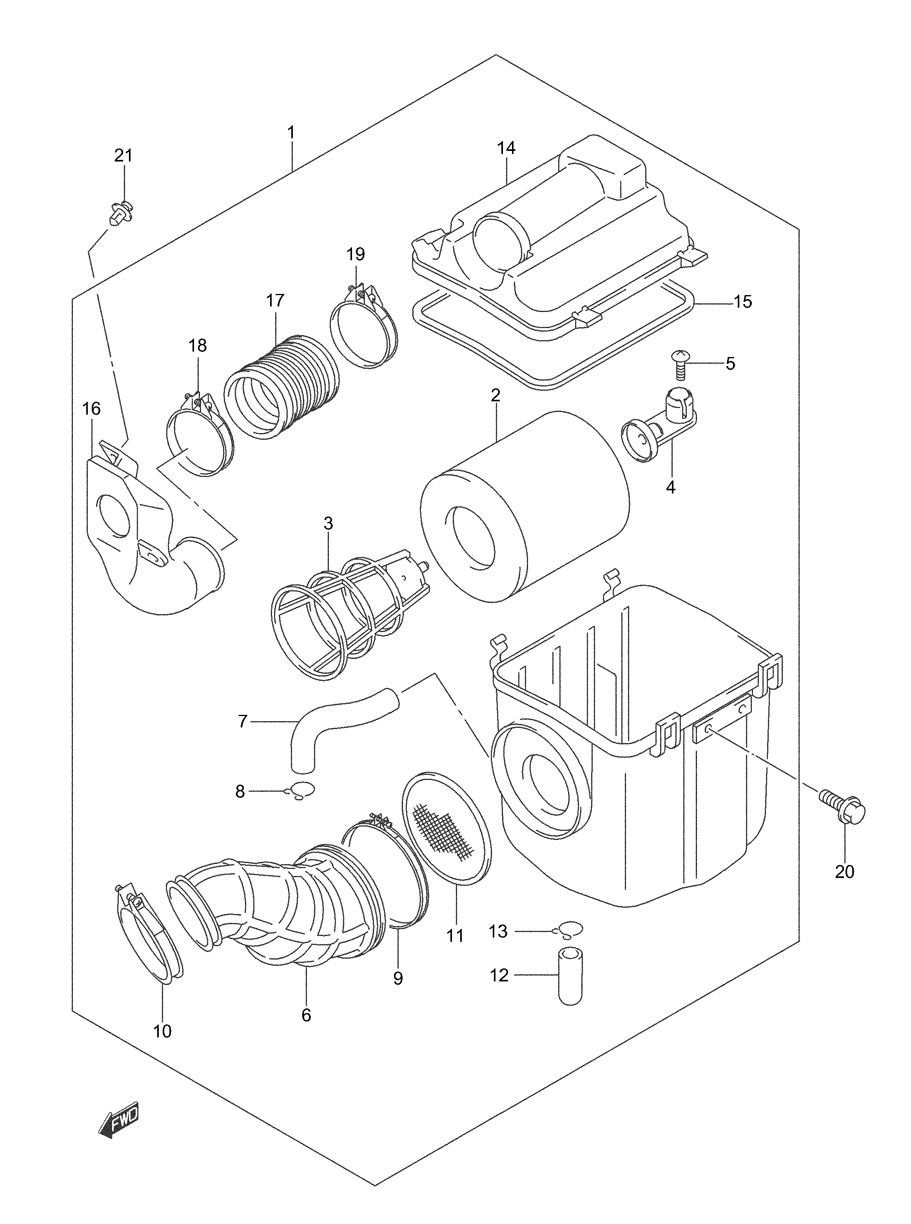

AIR BOX ASSY. для Suzuki LT-A500FB VISION 4X4 AUTOMATIC LTD. EDITION - 2004 года выпуска
-
№АртикулНазвание
-
113700-03G10 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213780-07G00 FILTERFILTER
-
313791-03G00 HOLDERHOLDER
-
413792-03G00 STOPPER, HOLDERSTOPPER, HOLDER
-
502142-06163 SCREW 6X16SCREW 6X16
-
613881-03G00 TUBE, OUTLETTUBE, OUTLET
-
713853-03G10 TUBE, BREATHERTUBE, BREATHER
-
809401-14301 CLIPCLIP
-
913826-38F10 CLAMP (CLEANER SIDE)CLAMP (CLEANER SIDE)
-
1013826-38F20 CLAMP (CARBURETOR SIDE)CLAMP (CARBURETOR SIDE)
-
1113810-03G00 TRAP, FLAMETRAP, FLAME
-
1213878-09F00 PLUG, DRAINPLUG, DRAIN
-
1309401-14301 CLIPCLIP
-
1413741-38F10 CAP, AIR CLEANERCAP, AIR CLEANER
-
1513746-03G00 GASKETGASKET
-
1613896-03G00 DUCT, INLETDUCT, INLET
-
1713891-03G00 JOINT, INLETJOINT, INLET
-
1813826-38F20 CLAMPCLAMP
-
1909402-60208 CLAMPCLAMP
-
2001550-06123 BOLT, AIR CLEANERBOLT, AIR CLEANER
-
2109409-07333 CLIPCLIP
