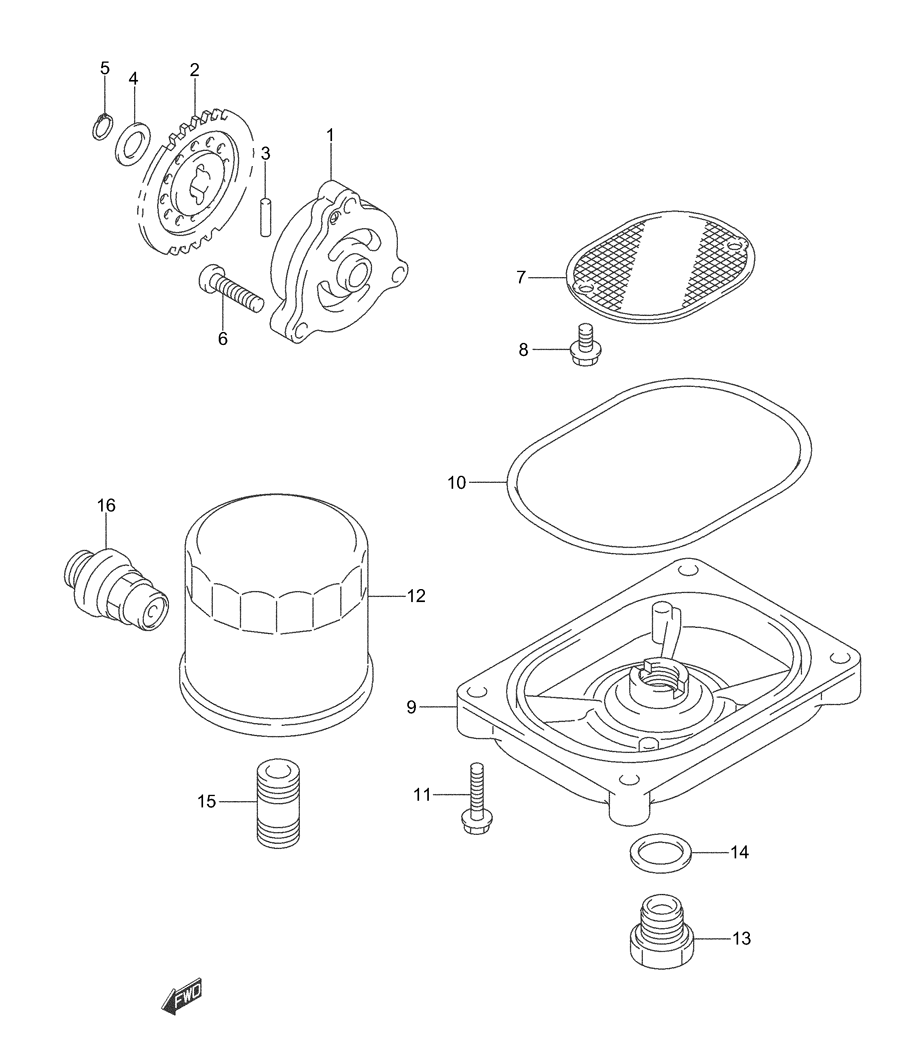

OIL PUMP для Suzuki LT-A500FB VISION 4X4 AUTOMATIC LTD. EDITION - 2004 года выпуска
-
№АртикулНазвание
-
116400-03G00 PUMP, ENGINE OILPUMP, ENGINE OIL
-
216331-09F50 GEAR, DRIVEN (NT:29)GEAR, DRIVEN (NT:29)
-
309261-04009 PINPIN
-
409181-10158 WASHERWASHER
-
508331-31106 CIRCLIPCIRCLIP
-
609125-06035 SCREWSCREW
-
716520-24500 STRAINER, ENGINE OILSTRAINER, ENGINE OIL
-
802112-75123 SCREWSCREW
-
916523-24501 CAP, OIL STRAINERCAP, OIL STRAINER
-
1016528-24500 O RINGO RING
-
1101547-06253 BOLTBOLT
-
1216510-03G00-X07 FILTER, ENGINE OILFILTER, ENGINE OIL
-
1309247-14002 PLUG, DRAINPLUG, DRAIN
-
1409168-14002 GASKETGASKET
-
1516591-06B00 UNION, OIL FILTERUNION, OIL FILTER
-
1616440-44D00 VALVE ASSY, OIL RELIEFVALVE ASSY, OIL RELIEF
