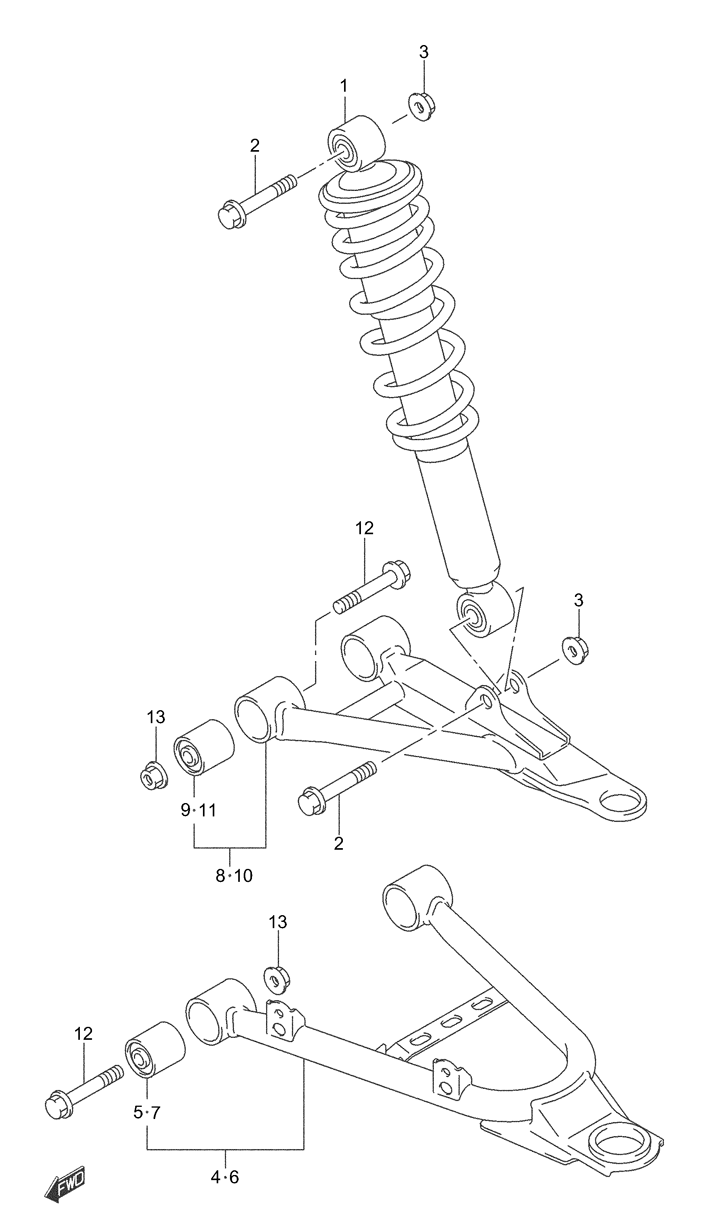

SUSPENSION - FRONT ARM W/ SHOCK для Suzuki LT-A500FB VISION 4X4 AUTOMATIC LTD. EDITION - 2004 года выпуска
-
№АртикулНазвание
-
152100-03G50-019 ABSORBER ASSY, FRONT SHOCK (BLACK)ABSORBER ASSY, FRONT SHOCK (BLACK)
-
209103-10126 BOLT (10X48)BOLT (10X48)
-
309159-10058 NUTNUT
-
452410-03830 ARM SET, SUSPENSION LOWER RIGHT HANDARM SET, SUSPENSION LOWER RIGHT HAND
-
509319-10055 BUSH (10X35.1X38)BUSH (10X35.1X38)
-
652420-03830 ARM SET, SUSPENSION LOWER LEFT HANDARM SET, SUSPENSION LOWER LEFT HAND
-
709319-10055 BUSH (10X35.1X38)BUSH (10X35.1X38)
-
852430-03830 ARM SET, SUSPENSION UPPER RIGHT HANDARM SET, SUSPENSION UPPER RIGHT HAND
-
909319-10055 BUSH (10X35.1X38)BUSH (10X35.1X38)
-
1052440-03830 ARM SET, SUSPENSION UPPER LEFT HANDARM SET, SUSPENSION UPPER LEFT HAND
-
1109319-10055 BUSH (10X35.1X38)BUSH (10X35.1X38)
-
1209103-10301 BOLT (10X60)BOLT (10X60)
-
1309159-10058 NUTNUT
