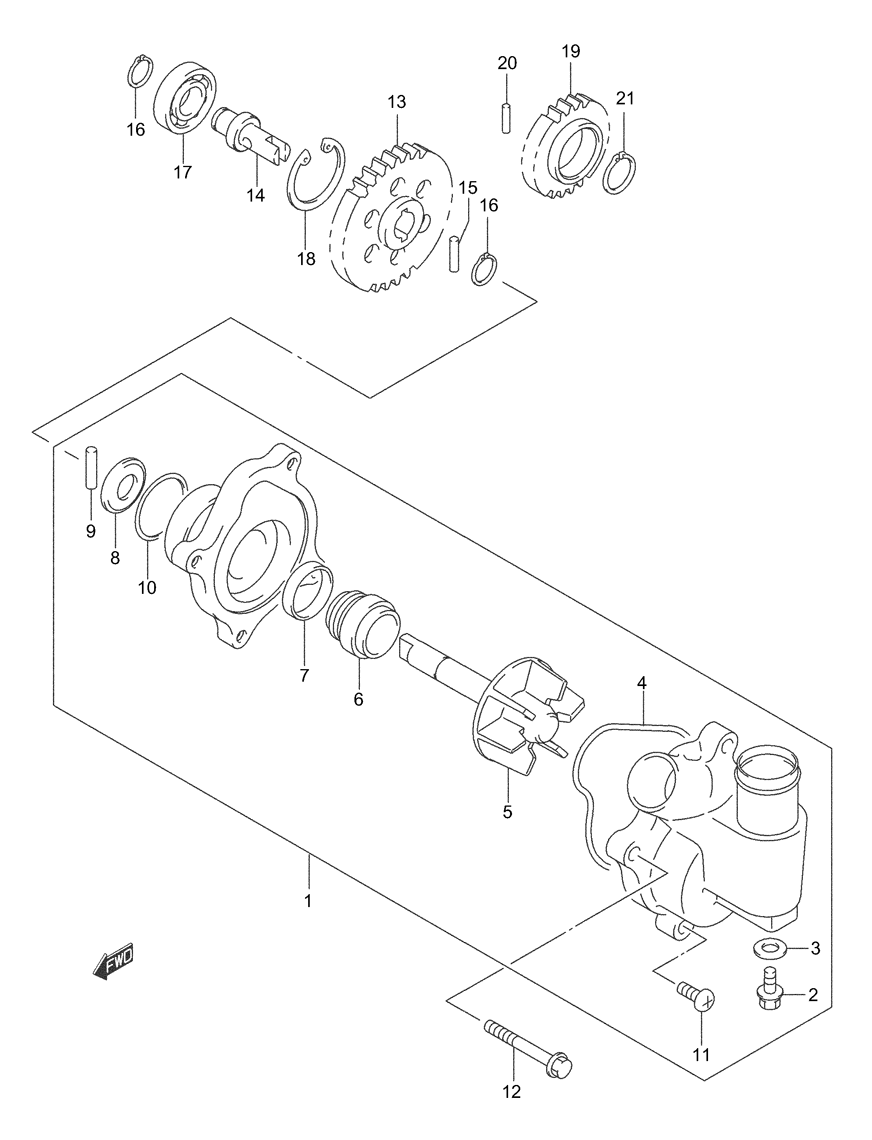

WATER PUMP для Suzuki LT-A500FB VISION 4X4 AUTOMATIC LTD. EDITION - 2004 года выпуска
-
№АртикулНазвание
-
117400-03G00 PUMP ASSY, WATERPUMP ASSY, WATER
-
217415-14300 BOLTBOLT
-
309168-08016 GASKETGASKET
-
417418-09F50 O RINGO RING
-
517491-03G00 IMPELLER/SHAFTIMPELLER/SHAFT
-
617470-02F00 SEAL, MECHANICALSEAL, MECHANICAL
-
709283-10004 OIL SEAL (10X21X5)OIL SEAL (10X21X5)
-
817481-03G00 WASHERWASHER
-
917482-03G00 PINPIN
-
1017435-33400 O RINGO RING
-
1102112-06163 SCREWSCREW
-
1201547-06653 BOLTBOLT
-
1316331-02F00 GEAR, DRIVENGEAR, DRIVEN
-
1417521-09F50 SHAFT, DRIVEN GEARSHAFT, DRIVEN GEAR
-
1509261-04009 PIN, DRIVEN GEARPIN, DRIVEN GEAR
-
1608331-31106 CIRCLIP, DRIVEN GEARCIRCLIP, DRIVEN GEAR
-
1708110-62000 BEARING, SHAFTBEARING, SHAFT
-
1808331-41309 CIRCLIP, SHAFT BEARINGCIRCLIP, SHAFT BEARING
-
1916321-44D01 GEAR, WATER PUMP DRIVEGEAR, WATER PUMP DRIVE
-
2004221-04069 PIN, DRIVE GEARPIN, DRIVE GEAR
-
2108331-31226 CIRCLIP, DRIVE GEARCIRCLIP, DRIVE GEAR
