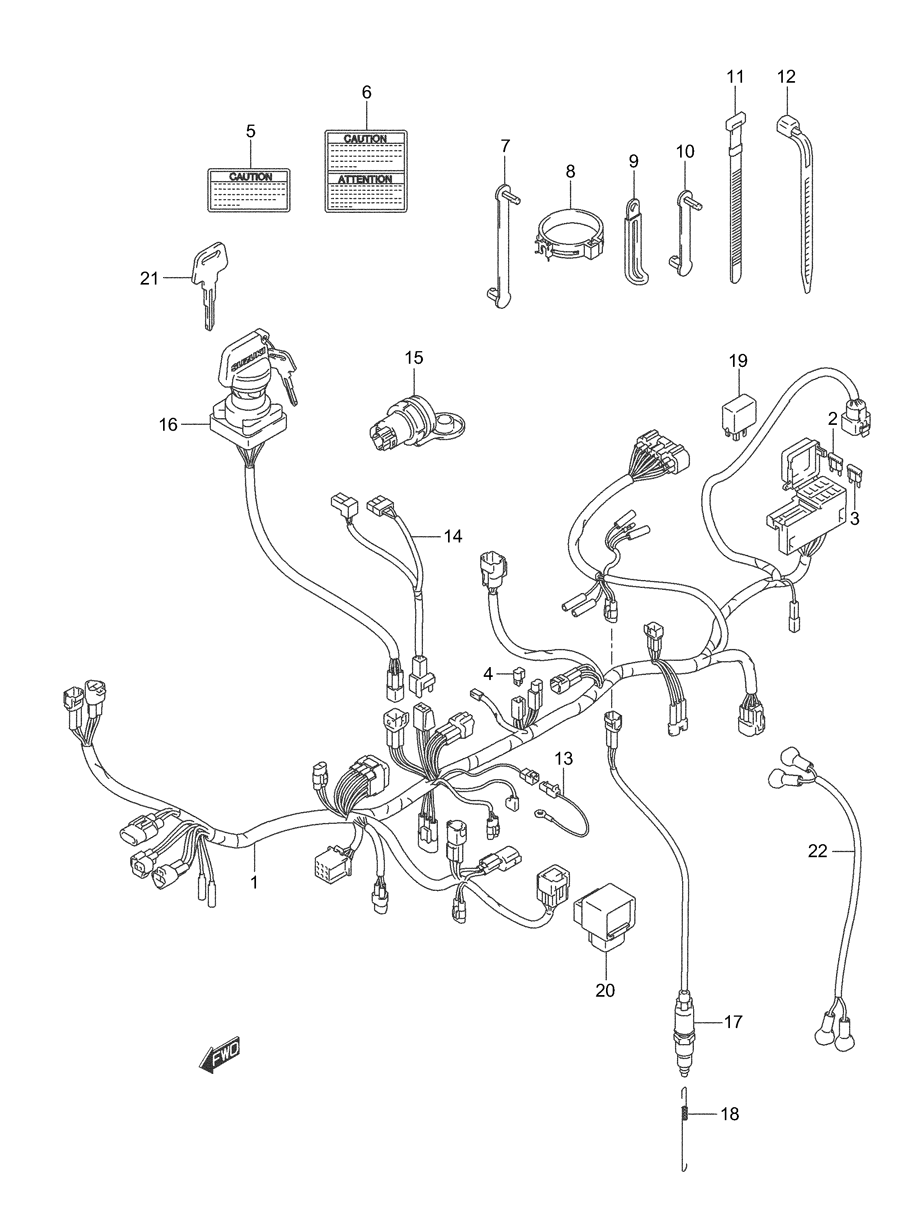

ELECTRICAL - WIRING HARNESS для Suzuki LT-A500FB VISION 4X4 AUTOMATIC LTD. EDITION - 2004 года выпуска
-
№АртикулНазвание
-
136610-03G51 WIRING HARNESSWIRING HARNESS
-
209481-10501 FUSE (10A)FUSE (10A)
-
309481-15501 FUSE (15A)FUSE (15A)
-
432800-16A00 DIODEDIODE
-
538852-09F30 LABEL, CAUTION MAX AMP (ENGLISH)LABEL, CAUTION MAX AMP (ENGLISH)
-
638852-03G10 LABEL, CAUTION MAX AMP (FRENCH)LABEL, CAUTION MAX AMP (FRENCH)
-
736651-48E00 CLAMPCLAMP
-
809403-20403 CLAMP (ID:20)CLAMP (ID:20)
-
809403-25401 CLAMP (ID:25)CLAMP (ID:25)
-
909404-06429 CLAMP (L:45)CLAMP (L:45)
-
1009407-03401 CLAMPCLAMP
-
1109407-12402 CLAMPCLAMP
-
1209407-14403 CLAMP (L:125)CLAMP (L:125)
-
1209407-18402 CLAMP (L:165)CLAMP (L:165)
-
1336851-05D00 WIRE, IGNITION COILWIRE, IGNITION COIL
-
1436857-03G00 WIRE, FRONT BRAKE SWITCH LEADWIRE, FRONT BRAKE SWITCH LEAD
-
1538850-03G00 TERMINAL, POWER SOURCETERMINAL, POWER SOURCE
-
1637110-03G00 SWITCH ASSY, IGNITIONSWITCH ASSY, IGNITION
-
1737740-38F00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1809443-06080 SPRINGSPRING
-
1938730-09F00 RELAY, NEUTRAL STARTRELAY, NEUTRAL START
-
2038750-03G00 RELAY ASSY, DRIVERELAY ASSY, DRIVE
-
2137146-19B00 KEY, BLANK (TYPE:C)KEY, BLANK (TYPE:C)
-
2137146-19B10 KEY, BLANK (TYPE:D)KEY, BLANK (TYPE:D)
-
2137146-19B20 KEY, BLANK (TYPE:E)KEY, BLANK (TYPE:E)
-
2137146-19B30 KEY, BLANK (TYPE:F)KEY, BLANK (TYPE:F)
-
2233870-38F00 WIRE, WINCHWIRE, WINCH
