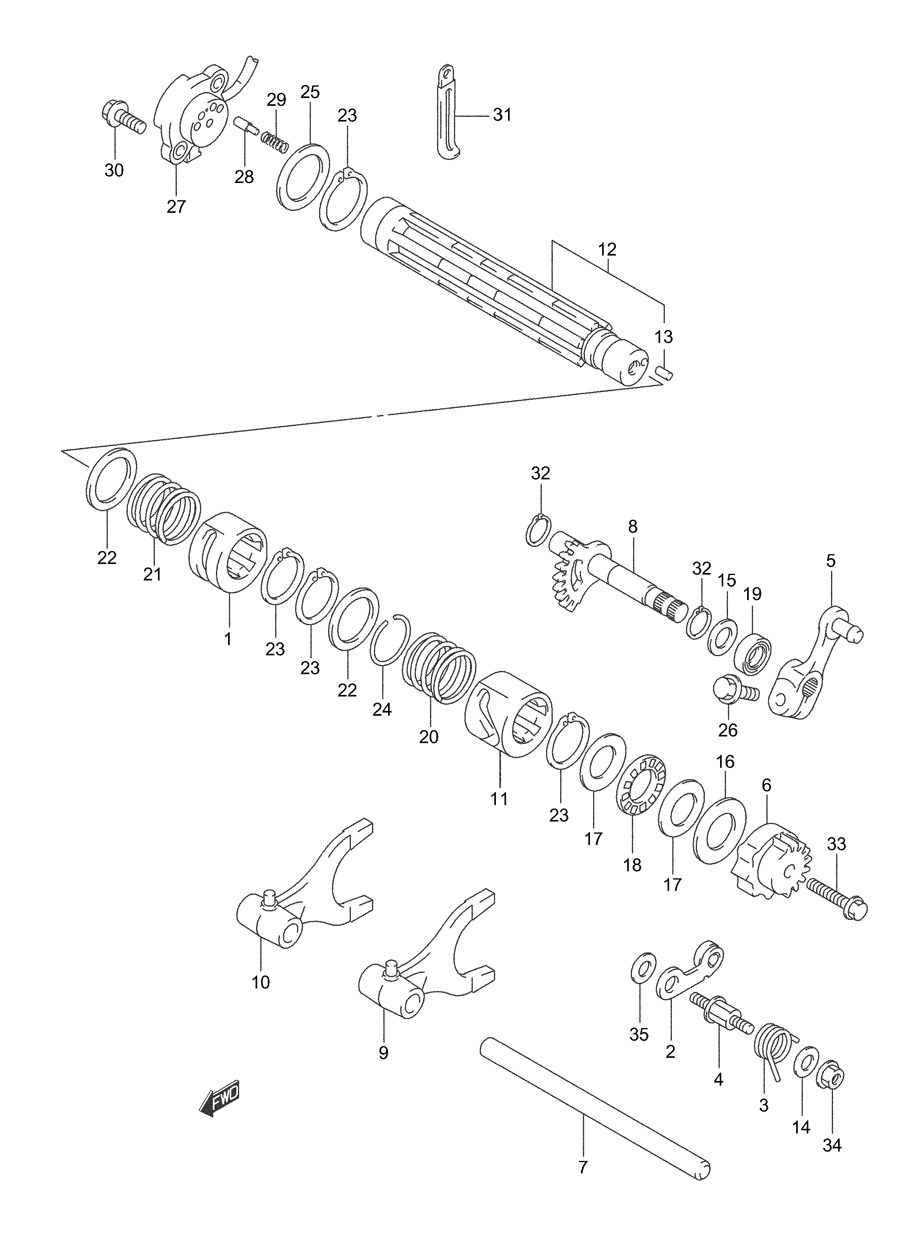

GEAR SHIFTING для Suzuki LT-A500FB VISION 4X4 AUTOMATIC LTD. EDITION - 2004 года выпуска
-
№АртикулНазвание
-
125321-03G20 CAM, GEAR SHIFT REVERSECAM, GEAR SHIFT REVERSE
-
225350-24B00 STOPPER, SHIFT CAMSTOPPER, SHIFT CAM
-
325355-03G00 SPRING, SHIFT CAM STOPPERSPRING, SHIFT CAM STOPPER
-
425356-12C00 SUPPORT, SHIFT CAMSUPPORT, SHIFT CAM
-
525360-03G20 ARM, SELECTARM, SELECT
-
625381-38F00 PLATE, GEAR SHIFT CAMPLATE, GEAR SHIFT CAM
-
725411-30B00 SHAFT, GEAR SHIFT FORKSHAFT, GEAR SHIFT FORK
-
825510-03G00 SHAFT, SUB T/M GEARSHAFT, SUB T/M GEAR
-
929510-03G20 FORK, GEAR SHIFTFORK, GEAR SHIFT
-
1029510-03G20 FORK, GEAR SHIFTFORK, GEAR SHIFT
-
1129611-03G20 CAM, GEAR SHIFTCAM, GEAR SHIFT
-
1229620-03G10 SHAFT, GEAR SHIFTSHAFT, GEAR SHIFT
-
1304221-04089 PINPIN
-
1409160-06022 WASHER, SPRING STOPPERWASHER, SPRING STOPPER
-
1509181-12167 WASHER, SUB T/M SHIFTWASHER, SUB T/M SHIFT
-
1609181-20158 WASHER, SHIFT CAM PLATEWASHER, SHIFT CAM PLATE
-
1709181-20251 WASHER, SUB T/M SHIFTWASHER, SUB T/M SHIFT
-
1809263-20014 BEARING (20X35X2.0)BEARING (20X35X2.0)
-
1909285-12006 SEAL, GEAR SHIFTSEAL, GEAR SHIFT
-
2029612-38F00 SPRING, SUB T/M SHIFT CAMSPRING, SUB T/M SHIFT CAM
-
2129612-38F00 SPRING, REVERSE SHIFT CAMSPRING, REVERSE SHIFT CAM
-
2209181-25139 WASHER, SHIFT CAM SPRINGWASHER, SHIFT CAM SPRING
-
2308331-31256 CIRCLIP, SHIFT CAM SPRINGCIRCLIP, SHIFT CAM SPRING
-
2409380-25012 C RING, SUB T/M CAM STOPC RING, SUB T/M CAM STOP
-
2509181-25167 WASHER, SHIFT SHAFTWASHER, SHIFT SHAFT
-
2601550-06203 BOLT, SHIFT LEVERBOLT, SHIFT LEVER
-
2737720-03G00 BASE ASSY, GEAR SHIFT TERMBASE ASSY, GEAR SHIFT TERM
-
2809209-05011 K S PAWL ROLLERK S PAWL ROLLER
-
2909440-04010 K S PAWL SPRINGK S PAWL SPRING
-
3007120-05163 BOLTBOLT
-
3109404-06429 CLAMPCLAMP
-
3208331-31126 CIRCLIPCIRCLIP
-
3301550-06253 BOLT, GEAR SHIFT CAMBOLT, GEAR SHIFT CAM
-
3408316-10063 NUTNUT
-
3508211-06141 WASHERWASHER
