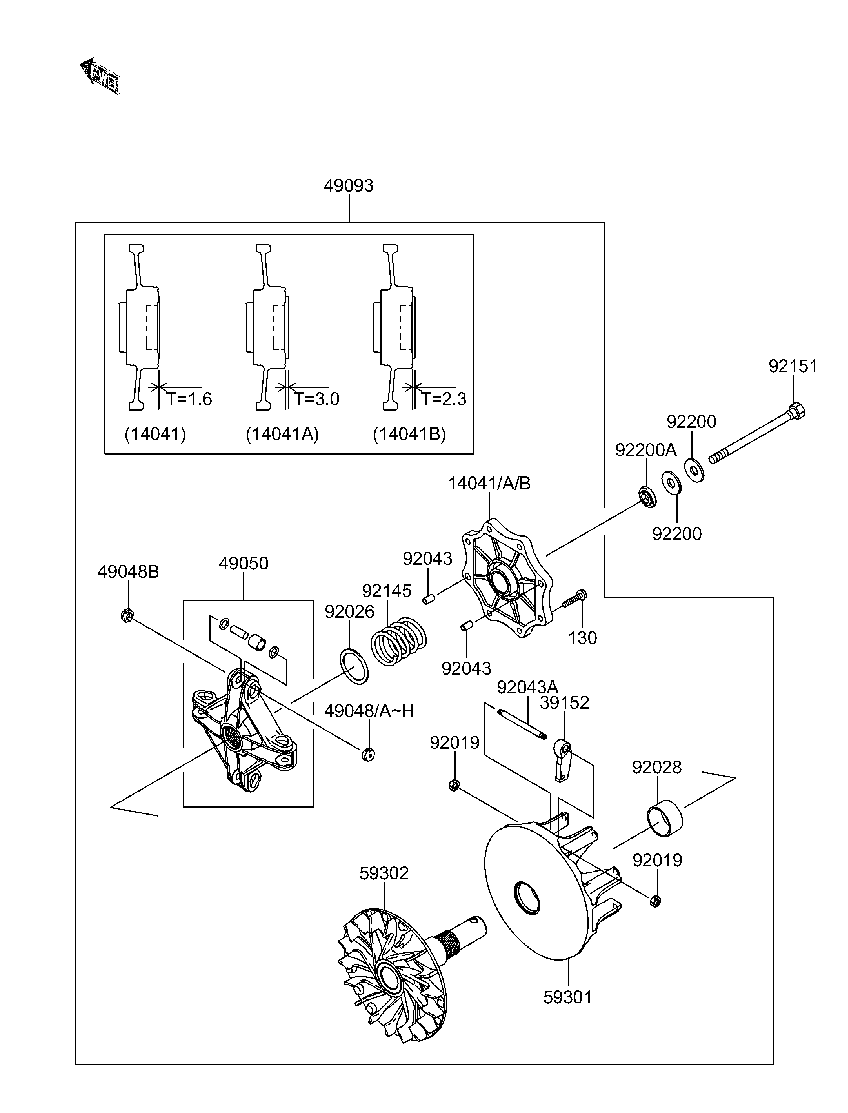

DRIVE CONVERTER для Suzuki LT-V700F TWIN PEAKS - 2004 года выпуска
-
№АртикулНазвание
-
14041K1404-11159 COVER COMP (RED)COVER COMP (RED)
-
14041AK1404-11160 COVER COMP (BLUE)COVER COMP (BLUE)
-
14041BK1404-11161 COVER COMP (STD)COVER COMP (STD)
-
39152K3915-21081 WEIGHT RAMPWEIGHT RAMP
-
49048K4904-81087 SHOE, T=7.2SHOE, T=7.2
-
49048AK4904-81088 SHOE, T=7.3SHOE, T=7.3
-
49048BK4904-81089 SHOE, T=7.4SHOE, T=7.4
-
49048CK4904-81090 SHOE, T=7.5SHOE, T=7.5
-
49048DK4904-81091 SHOE, T=7.6SHOE, T=7.6
-
49048EK4904-81092 SHOE, T=7.7SHOE, T=7.7
-
49048FK4904-81093 SHOE, T=7.8SHOE, T=7.8
-
49048GK4904-81094 SHOE, T=7.9SHOE, T=7.9
-
49048HK4904-81095 SHOE, T=8.0SHOE, T=8.0
-
49050K4905-01081 SPIDERSPIDER
-
49093K4909-30002 CONVERTER ASSY DRIVECONVERTER ASSY DRIVE
-
59301K5930-11070 SHEAVE MOVABLESHEAVE MOVABLE
-
59302K5930-21106 SHEAVE COMPSHEAVE COMP
-
92019KK920-19008 NUT, LOCK, 6MMNUT, LOCK, 6MM
-
92026K9202-61603 SPACER, 39X49.5X1.0SPACER, 39X49.5X1.0
-
92028K9202-81975 BUSHINGBUSHING
-
92043K9204-31263 PIN, 6.2X8X14PIN, 6.2X8X14
-
92043AK9204-31688 PINPIN
-
92145K9214-50021 SPRINGSPRING
-
92151K9215-11393 BOLTBOLT
-
92200K9220-01504 WASHER, SPRINGWASHER, SPRING
-
92200AK9220-01634 WASHERWASHER
-
130KK130-T0630 BOLT FLANGEDBOLT FLANGED
