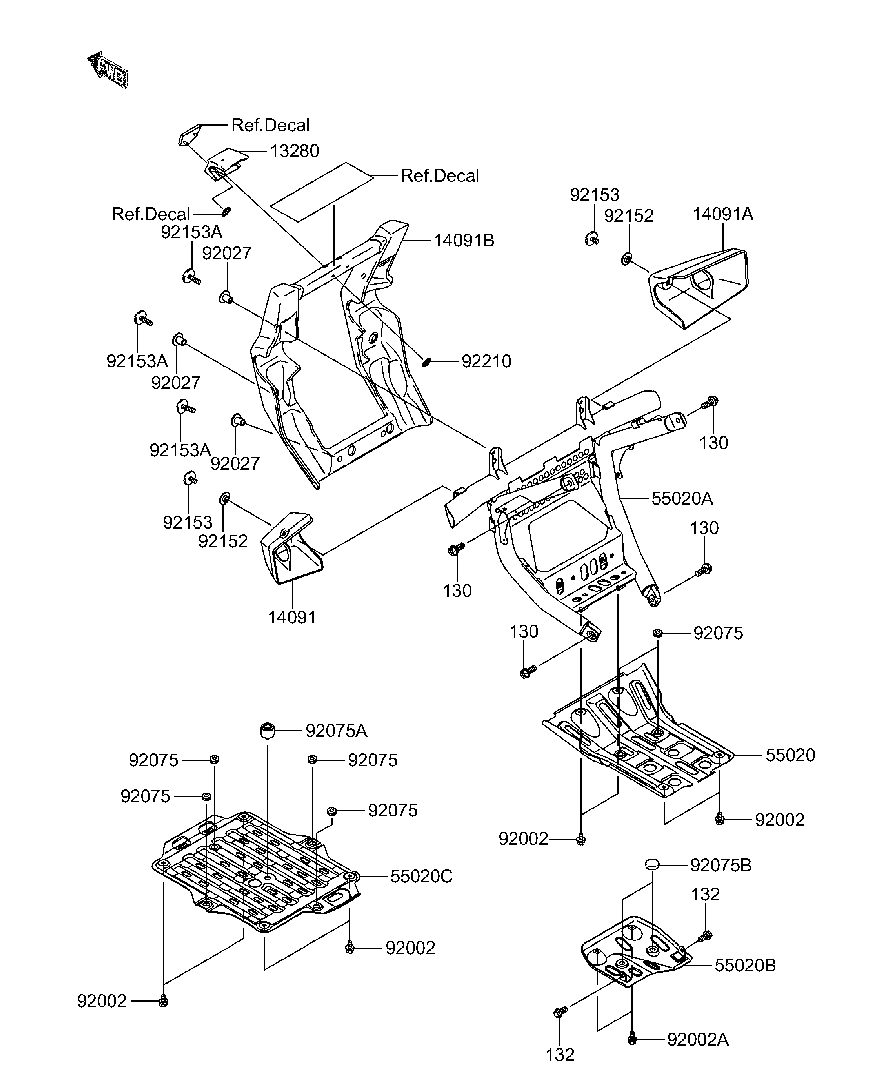

GUARD для Suzuki LT-V700F TWIN PEAKS - 2004 года выпуска
-
№АртикулНазвание
-
13280KK132-80005-26Z HOLDER, EMBLEM (F.BLACK)HOLDER, EMBLEM (F.BLACK)
-
14091KK140-91029-46Z COVER, FRONT GUARD, SIDE, LEFT HAND (BLACK)COVER, FRONT GUARD, SIDE, LEFT HAND (BLACK)
-
14091AKK140-91029-56Z COVER, FRONT GUARD, SIDE, RIGHT HAND (BLACK)COVER, FRONT GUARD, SIDE, RIGHT HAND (BLACK)
-
14091BKK140-91029-66Z COVER, FRONT GUARD (F.BLACK)COVER, FRONT GUARD (F.BLACK)
-
55020K5502-00001 GUARD, FRONT SKIDGUARD, FRONT SKID
-
55020AKK550-20007-521 GUARD, FRONT (BLACK)GUARD, FRONT (BLACK)
-
55020BK5502-01756 GUARD, SWING ARMGUARD, SWING ARM
-
55020CK5502-01808 GUARD, ENGINE, UNDERGUARD, ENGINE, UNDER
-
92002K9200-21449 BOLT, 6X10BOLT, 6X10
-
92002AK9200-21569 BOLT, 6X12BOLT, 6X12
-
92027K9202-71920 COLLAR, L=14.1COLLAR, L=14.1
-
92075KK920-75051 DAMPERDAMPER
-
92075AK9207-51002 DAMPERDAMPER
-
92075BKK920-75157 DAMPERDAMPER
-
92152K9215-20140 COLLARCOLLAR
-
92153K9215-30637 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
-
92153AK9215-30665 BOLT, SOCKET, 6X22BOLT, SOCKET, 6X22
-
92210K9221-00137 NUT, SPEED, 5MMNUT, SPEED, 5MM
-
130KK130-T0820 BOLT FLANGED, 8X20BOLT FLANGED, 8X20
-
132KK132-J0816 BOLT FLANGED SMALL, 8X16BOLT FLANGED SMALL, 8X16
Все узлы модели:
- AIR CLEANER
- BRAKE - CABLE
- BRAKE - FRONT
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR PEDAL
- CAMSHAFT/TENSIONER
- CARBURETOR
- CARBURETOR PARTS
- CARRIER - FRONT / REAR
- CONVERTER COVER/DRIVE BELT
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD
- CYLINDER/PISTON
- DECAL (BLUE)
- DECAL (YELLOW)
- DRIVE CONVERTER
- DRIVE SHAFT FRONT
- DRIVE SHAFT PROPELLER
- DRIVE SHAFT REAR
- DRIVEN CONVERTER
- ELECTRICAL - IGNITION SWITCH
- ELECTRICAL - IGNITION SYSTEM
- ELECTRICAL - WIRING HARNESS
- ENGINE COVER
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BUMBER
- FRAME
- FRAME FITTING
- FRONT BEVEL GEAR
- FRONT HUB
- FUEL TANK
- GEAR CHANGE MECHANISM
- GENERATOR
- • GUARD
- HANDLEBAR W/ CABLES
- HEADLIGHT
- HUB - REAR
- LABELS
- METER
- MUFFLER
- OIL PUMP/OIL FILTER
- OPTIONAL PARTS (DRIVE CONVERTER)
- OPTIONAL PARTS (GUARD)
- OWNER'S TOOL
- RADIATOR
- SEAT
- SHIFT LEVER
- SHOCK ABSORBER
- SIDE COVER
- STARTER - RECOIL
- STARTER MOTOR
- SUSPENSION
- SUSPENSION - REAR SWING ARM
- TAILLIGHT ASSY.
- TRANSMISSION
- VALVE
- WHEEL/TIRE
