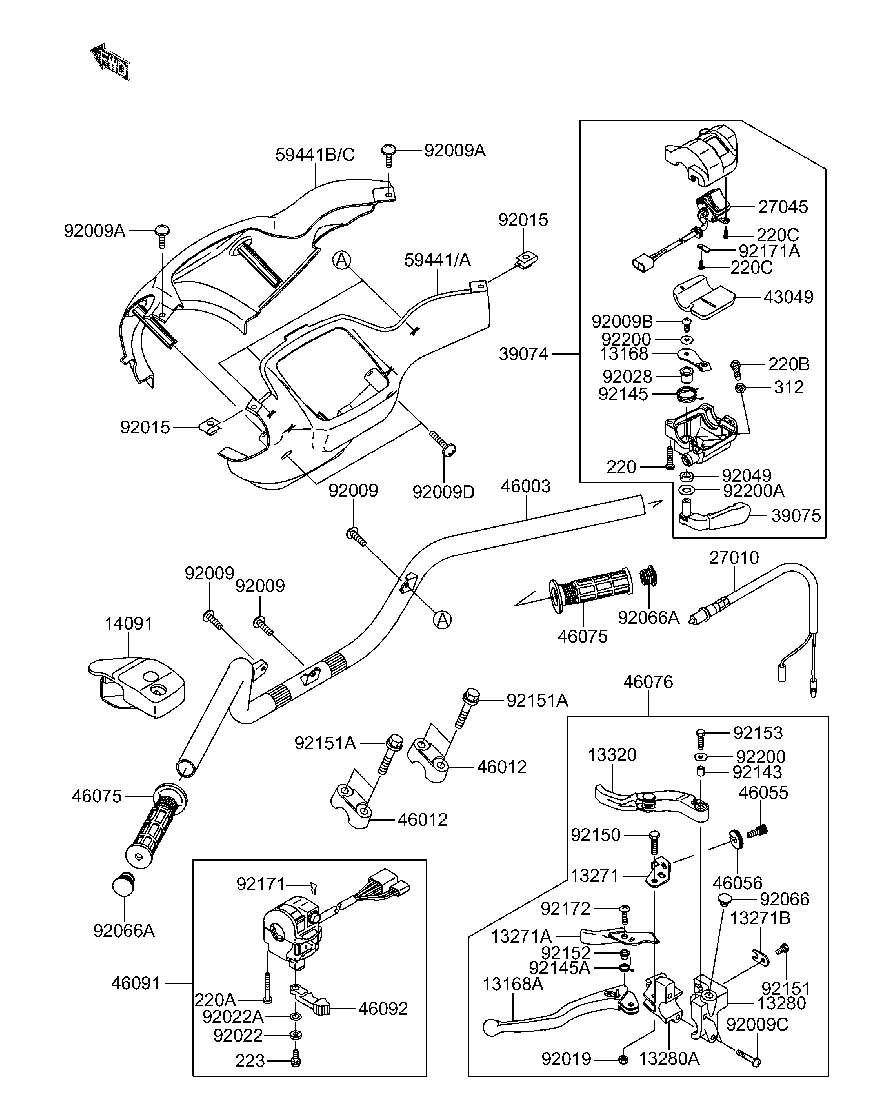

HANDLEBAR W/ CABLES для Suzuki LT-V700F TWIN PEAKS - 2004 года выпуска
-
№АртикулНазвание
-
13168K1316-81715 LEVERLEVER
-
13168AK1316-81736 LEVER, LEFT HANDLEVER, LEFT HAND
-
13271K1327-11259 PLATE, LOCKPLATE, LOCK
-
13271AK1327-11635 PLATE, LEVER LOCKPLATE, LEVER LOCK
-
13271BK1327-11636 PLATE, WIRE OUTER STOPPERPLATE, WIRE OUTER STOPPER
-
13280K1328-01226 HOLDER, DIFF LOCK LEVERHOLDER, DIFF LOCK LEVER
-
13280AK1328-01227 HOLDER, LEVER, LEFT HANDHOLDER, LEVER, LEFT HAND
-
13320K1332-01018 LEVER ASSY, DEFF LOCKLEVER ASSY, DEFF LOCK
-
14091K1409-11403 COVER, DIFF LOCK LEVERCOVER, DIFF LOCK LEVER
-
27010K2701-01294 SWITCH, BRAKESWITCH, BRAKE
-
27045K2704-51081 SWITCH ASSYSWITCH ASSY
-
39074K3907-41062 LEVER ASSY THROTTLELEVER ASSY THROTTLE
-
39075K3907-51062 LEVER THROTTLELEVER THROTTLE
-
43049K4304-91088 PACKINGPACKING
-
46003K4600-31580 HANDLEHANDLE
-
46012K4601-21168 HOLDER HANDLEHOLDER HANDLE
-
46055KK460-55003 SCREW, CABLE ADJUST, 8MMSCREW, CABLE ADJUST, 8MM
-
46056KK460-56005 NUT, CABLE ADJUST LOCK, 8MMNUT, CABLE ADJUST LOCK, 8MM
-
46075K4607-57501 GRIP, HANDLEGRIP, HANDLE
-
46076K4607-61238 LEVER ASSY GRIP, DEFF LOCKLEVER ASSY GRIP, DEFF LOCK
-
46091K4609-11847 HOUSING ASSY CONTROL, LEFT HANDHOUSING ASSY CONTROL, LEFT HAND
-
46092K4609-21217 LEVER GRIP, CHOKELEVER GRIP, CHOKE
-
59441K5944-11150-267 COVER HANDLE, REAR (C.YELLOW)COVER HANDLE, REAR (C.YELLOW)
-
59441AK5944-11150-278 COVER HANDLE, REAR (G.BLUE)COVER HANDLE, REAR (G.BLUE)
-
59441BK5944-11159-267 COVER HANDLE, FRONT (C.YELLOW)COVER HANDLE, FRONT (C.YELLOW)
-
59441CK5944-11159-278 COVER HANDLE, FRONT (G.BLUE)COVER HANDLE, FRONT (G.BLUE)
-
92009K9200-91197 SCREW, TAPPING, 5X14SCREW, TAPPING, 5X14
-
92009AK9200-91652 SCREW, 5X12SCREW, 5X12
-
92009BK9200-91959 SCREWSCREW
-
92009CK9200-91961 SCREW, 6X30SCREW, 6X30
-
92009DK9200-91965 SCREW, TAPPING, 5X30SCREW, TAPPING, 5X30
-
92015K9201-51573 NUT, 5MMNUT, 5MM
-
92019KK920-19008 NUT, LOCK, 6MMNUT, LOCK, 6MM
-
92022K9202-21837 WASHER, 5MMWASHER, 5MM
-
92022AK9202-21838 WASHER, WAVE, 5MMWASHER, WAVE, 5MM
-
92028K9202-81986 BUSHINGBUSHING
-
92049K9204-91578 SEAL OILSEAL OIL
-
92066K9206-61077 PLUG, 9.5X8, POLYETHYLENEPLUG, 9.5X8, POLYETHYLENE
-
92066AK9206-61550 PLUGPLUG
-
92143K9214-31216 COLLARCOLLAR
-
92145K9214-51392 SPRINGSPRING
-
92145AK9214-51429 SPRINGSPRING
-
92150K9215-01420 BOLTBOLT
-
92151K9215-11975 BOLT, 5X10BOLT, 5X10
-
92151AK9215-12130 BOLT, FLANGED, 8X40BOLT, FLANGED, 8X40
-
92152K9215-21176 COLLARCOLLAR
-
92153K9215-31129 BOLT, 5X20BOLT, 5X20
-
92171K9217-11095 CLAMP, CLIPCLAMP, CLIP
-
92171AK9217-11344 CLAMPCLAMP
-
92172K9217-20078 SCREW, 5X20SCREW, 5X20
-
92200K9220-01558 WASHERWASHER
-
92200AK9220-01559 WASHERWASHER
-
220KK220-C0525 SCREW PAN CROSSCREW PAN CROS
-
220AKK220-C0535 SCREW PAN CROSSCREW PAN CROS
-
220BKK220-C0625 SCREW PAN CROS, 6X25 (BLACK)SCREW PAN CROS, 6X25 (BLACK)
-
220CKK220-D0308 SCREW PAN CROSSSCREW PAN CROSS
-
223KK223-C0512 SCREW PAN WS CROSSCREW PAN WS CROS
-
312KK312-C0600 NUT HEX, 6MM, BLACKNUT HEX, 6MM, BLACK
