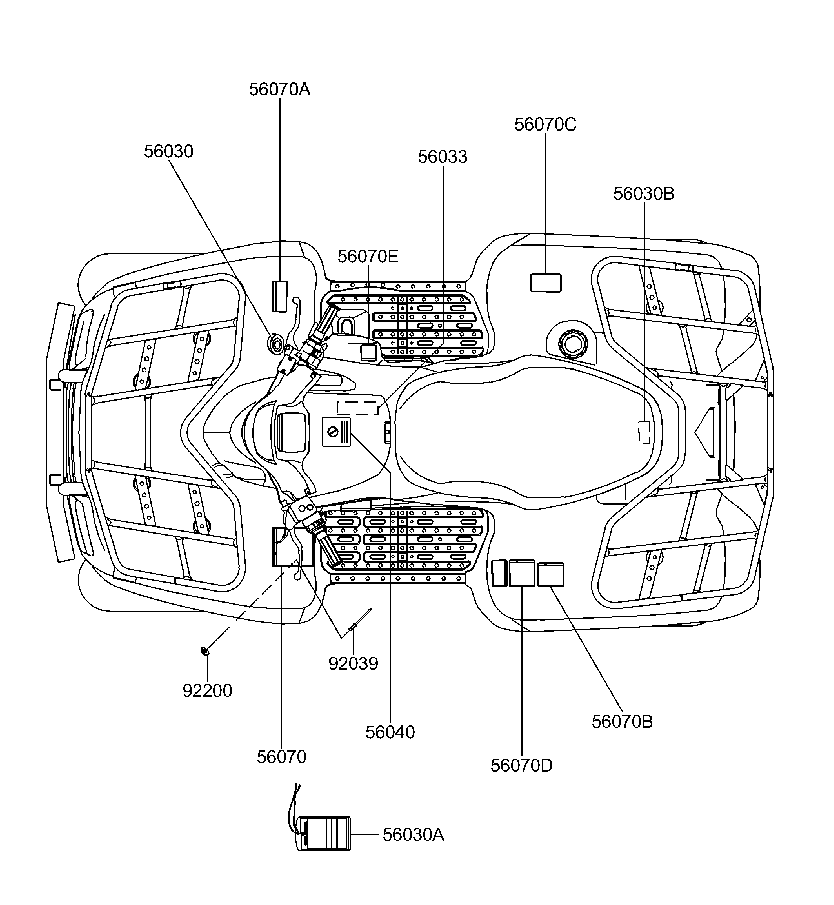

LABELS для Suzuki LT-V700F TWIN PEAKS - 2004 года выпуска
-
№АртикулНазвание
-
56030K5603-00014 LABEL, IGNITION SWITCHLABEL, IGNITION SWITCH
-
56030AK5603-00047 LABELLABEL
-
56030BK5603-00050 LABEL, MANUALLABEL, MANUAL
-
56033K5603-31263 LABEL MANUAL, MANUALLABEL MANUAL, MANUAL
-
56040K5604-01276 LABEL WARNING, UNDER 16LABEL WARNING, UNDER 16
-
56070K5607-01151 LABEL WARNING, SERIOUS INJURYLABEL WARNING, SERIOUS INJURY
-
56070AK5607-01170 LABEL WARNING, SHIFT LEVERLABEL WARNING, SHIFT LEVER
-
56070BK5607-01248 LABEL WARNING, TIRE INFOLABEL WARNING, TIRE INFO
-
56070CK5607-00038 LABEL WARNING, DRIVE BELTLABEL WARNING, DRIVE BELT
-
56070DK5607-01264 LABEL WARNING, MAX VEHICLE LOADLABEL WARNING, MAX VEHICLE LOAD
-
56070EK5607-01269 LABEL WARNING, CVT COVERLABEL WARNING, CVT COVER
-
92039K9203-93763 RIVET, 3.2X8RIVET, 3.2X8
-
92200K9220-01251 WASHER, 3.5X8X1WASHER, 3.5X8X1
