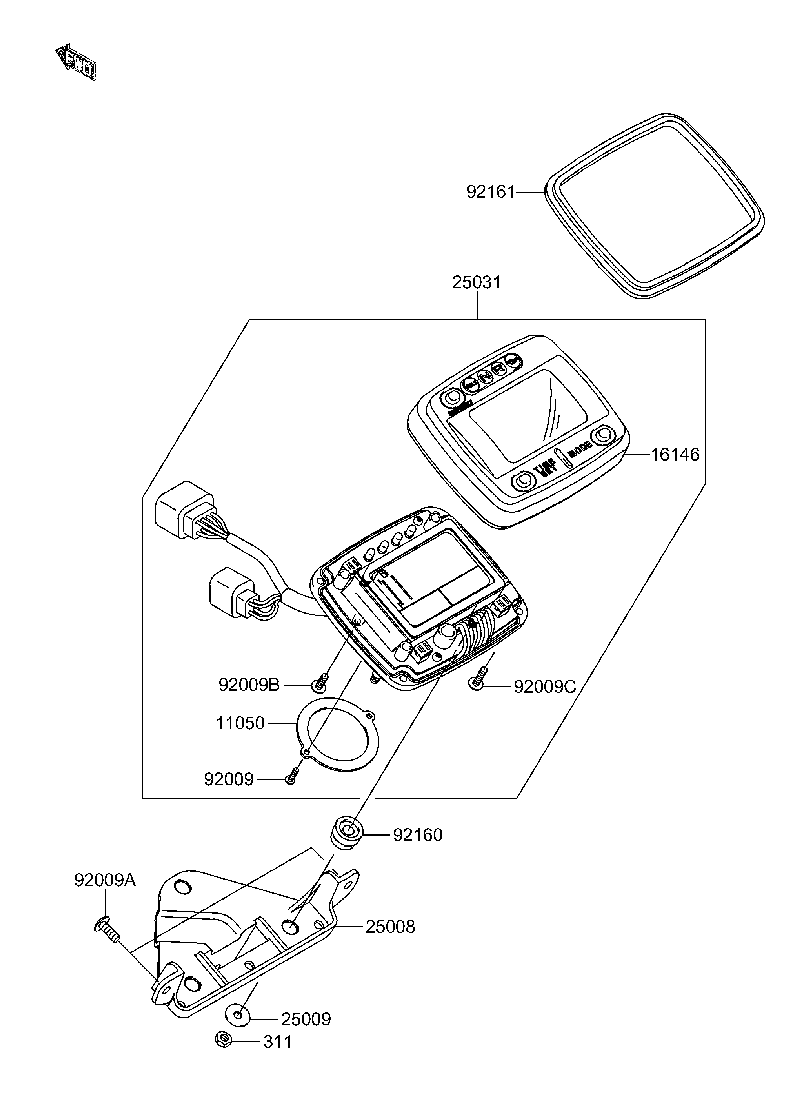

METER для Suzuki LT-V700F TWIN PEAKS - 2004 года выпуска
-
№АртикулНазвание
-
11050K1105-01932 BRACKET, METERBRACKET, METER
-
16146K1614-60015 COVER ASSY, UPPERERCOVER ASSY, UPPERER
-
25008K2500-81226 BRACKET METERBRACKET METER
-
25009KK250-09004 WASHER, 5.2X16X1.2WASHER, 5.2X16X1.2
-
25031K2503-10039 METER ASSY, MPHMETER ASSY, MPH
-
92009K9200-91028 SCREW, TAPPING, 3X12SCREW, TAPPING, 3X12
-
92009K9200-91028 SCREW, TAPPING, 3X12SCREW, TAPPING, 3X12
-
92009AK9200-91197 SCREW, TAPPING, 5X14SCREW, TAPPING, 5X14
-
92009BK9200-91254 SCREW, TAPPING, 4X12SCREW, TAPPING, 4X12
-
92009CK9200-93805 SCREW, 6X18SCREW, 6X18
-
92160K9216-01460 DAMPERDAMPER
-
92161K9216-11114 DAMPER, METER, UPPERDAMPER, METER, UPPER
-
311KK311-C0500 NUT HEXNUT HEX
