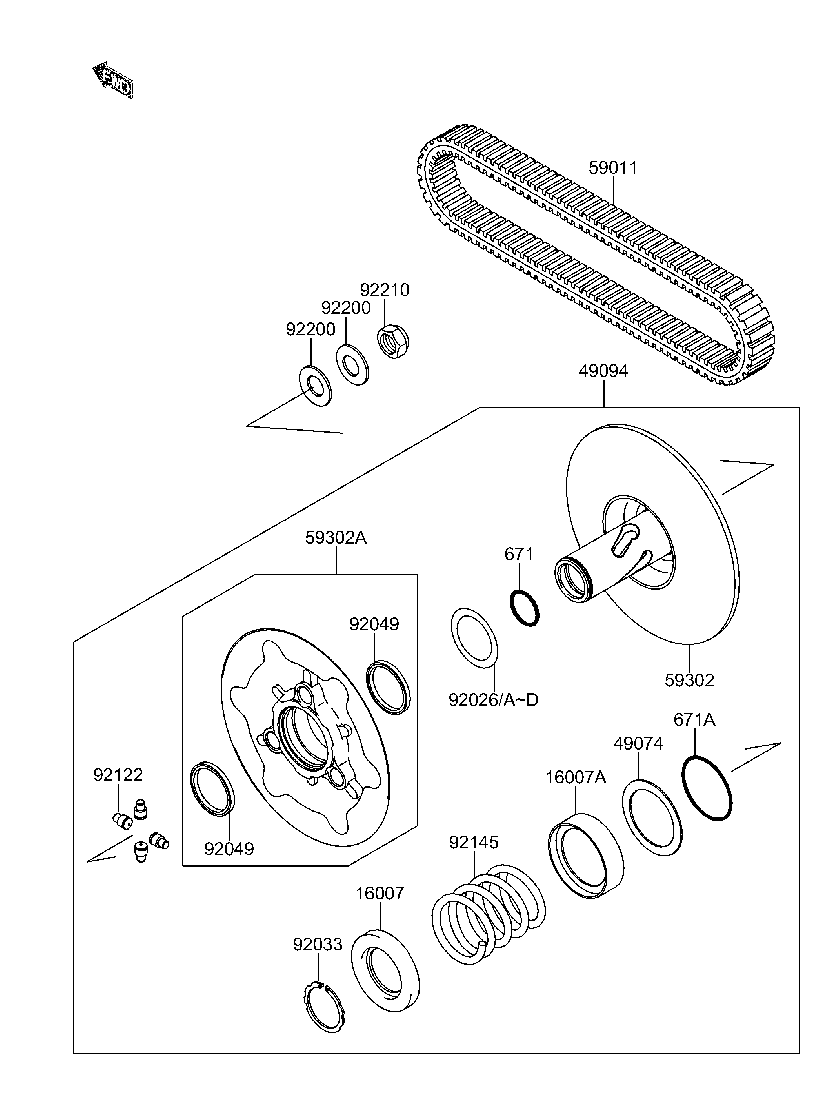

DRIVEN CONVERTER для Suzuki LT-V700F TWIN PEAKS - 2004 года выпуска
-
№АртикулНазвание
-
16007K1600-71203 SEAT SPRINGSEAT SPRING
-
16007AK1600-71221 SEAT SPRING, SHEAVE MOVABLESEAT SPRING, SHEAVE MOVABLE
-
49074K4907-41055 PLATE THRUSTPLATE THRUST
-
49094K4909-40005 CONVERTER ASSY DRIVENCONVERTER ASSY DRIVEN
-
59011K5901-10003 BELTBELT
-
59302K5930-20001 SHEAVE COMP, FIXEDSHEAVE COMP, FIXED
-
59302AK5930-20002 SHEAVE COMP, MOVABLESHEAVE COMP, MOVABLE
-
92026K9202-60034 SPACER, T=0.3SPACER, T=0.3
-
92026AK9202-61565 SPACER, T=1.00SPACER, T=1.00
-
92026BK9202-61569 SPACER, T=0.60SPACER, T=0.60
-
92026CK9202-61570 SPACER, T=1.40SPACER, T=1.40
-
92026DK9202-61617 SPACER, T=0.8SPACER, T=0.8
-
92033K9203-31317 RING SNAPRING SNAP
-
92049K9204-91528 SEAL OILSEAL OIL
-
92122K9212-21209 ROLLERROLLER
-
92145K9214-51462 SPRING (YELLOW)SPRING (YELLOW)
-
92200K9220-01505 WASHERWASHER
-
92210K9221-01367 NUT, 18MMNUT, 18MM
-
671KK671-D2530 O RINGO RING
-
671AKK671-D2550 O RINGO RING
