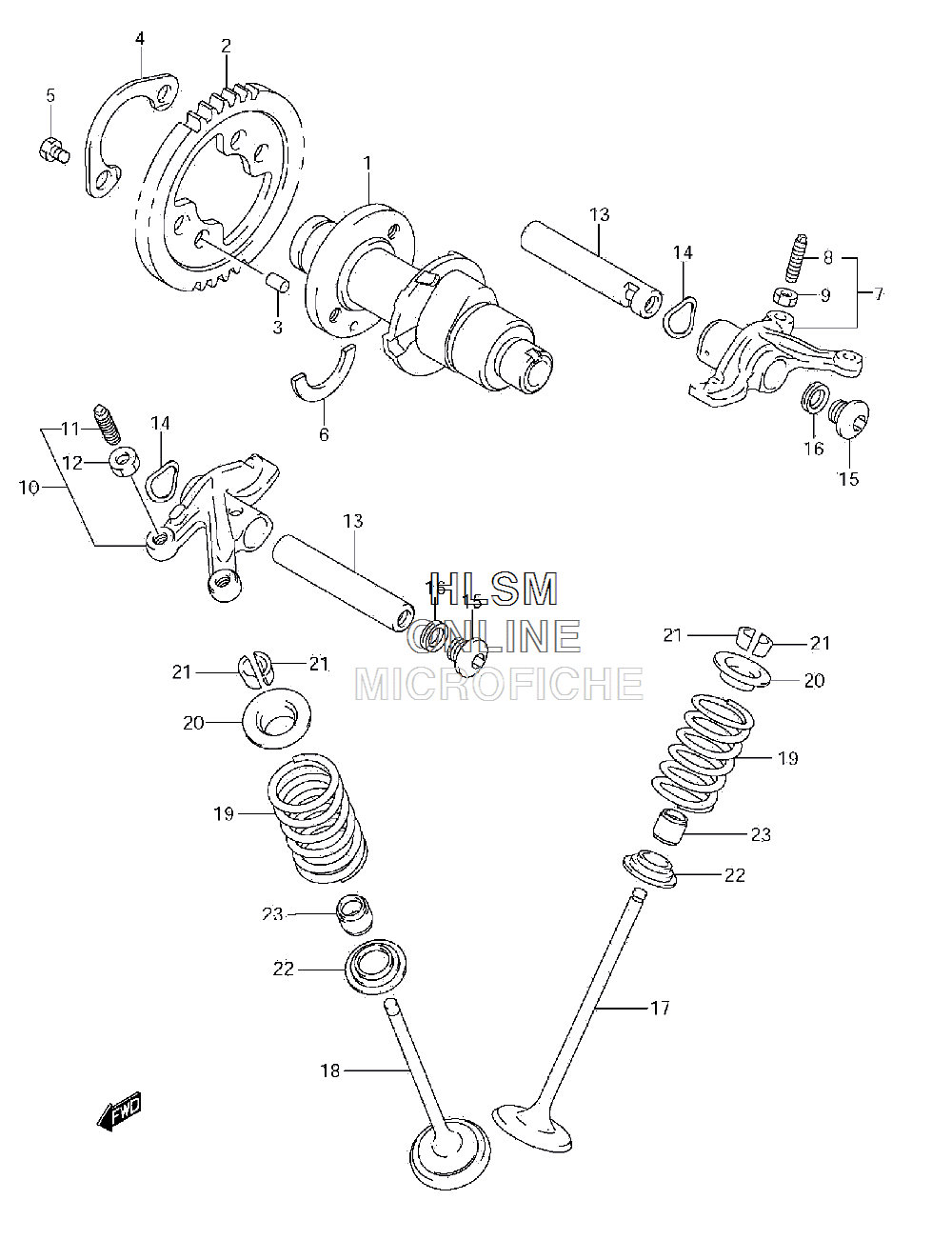

CAM SHAFT - W/ VALVES для Suzuki LT-A500XZ KingQuad 500AXi (CAMO) - 2011 года выпуска
-
№АртикулНазвание
-
112710-31H00 CAM SHAFTCAM SHAFT
-
212741-09F00 SPROCKETSPROCKET
-
309261-05005 PINPIN
-
412747-44B00 WASHERWASHER
-
509100-06166 BOLT (6X10.5)BOLT (6X10.5)
-
609390-22002 C RINGC RING
-
712840-31H00 ARM, VALVE ROCKER INTAKE (INC 8-9)ARM, VALVE ROCKER INTAKE (INC 8-9)
-
812842-17C50 SCREWSCREW
-
912843-27A00 NUTNUT
-
1012850-31H00 ARM, VALVE ROCKER EXHAUST (INC 11-12)ARM, VALVE ROCKER EXHAUST (INC 11-12)
-
1112842-17C50 SCREWSCREW
-
1212843-27A00 NUTNUT
-
1312861-14D50 SHAFT, ROCKER ARMSHAFT, ROCKER ARM
-
1409164-12018 WASHER (12.7X18.1X0.2)WASHER (12.7X18.1X0.2)
-
1509248-14012 PLUGPLUG
-
1609168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
1712911-14D10 VALVE, INTAKEVALVE, INTAKE
-
1812912-14D01 VALVE, EXHAUSTVALVE, EXHAUST
-
1912921-03G00 SPRING, VALVESPRING, VALVE
-
2012931-27A20 RETAINER, SPRINGRETAINER, SPRING
-
2112932-27A00 COTTER, VALVECOTTER, VALVE
-
2212933-81400 SEAT, SPRINGSEAT, SPRING
-
2309289-05011 OIL SEAL (5X10X8.7)OIL SEAL (5X10X8.7)
