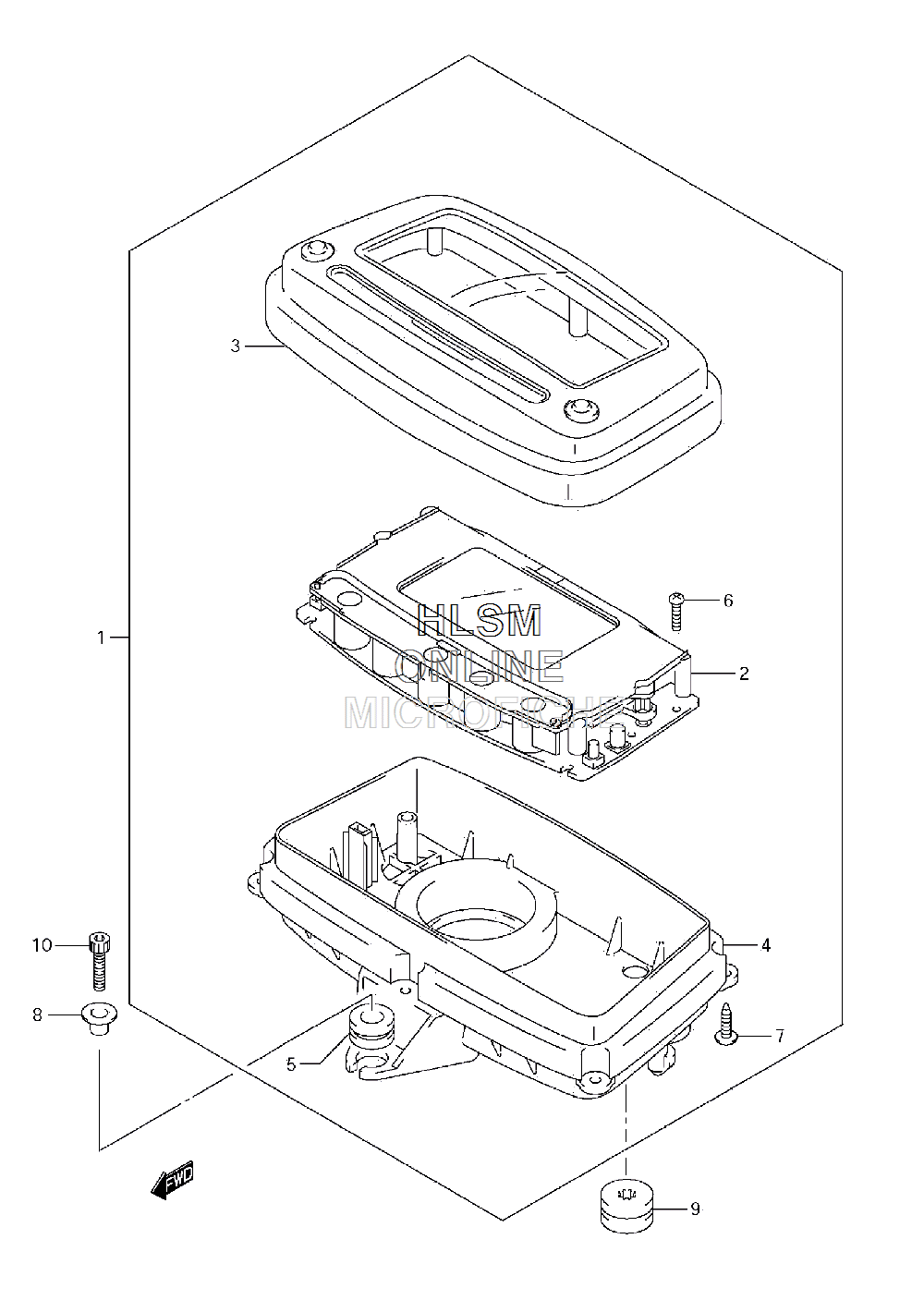

SPEEDOMETER (CANADA) для Suzuki LT-A500XZ KingQuad 500AXi (CAMO) - 2011 года выпуска
-
№АртикулНазвание
-
134100-11HA0 SPEEDOMETER ASSY (INC 2-7)SPEEDOMETER ASSY (INC 2-7)
-
234120-11HA0 SPEEDOMETERSPEEDOMETER
-
334150-31G30 CASE, UPPERCASE, UPPER
-
434111-31G30 CASE, LOWERCASE, LOWER
-
534995-31G30 CUSHION, METERCUSHION, METER
-
634147-31G30 SCREW (3X10)SCREW (3X10)
-
734149-31G30 SCREW (3X12)SCREW (3X12)
-
834187-47F00 SPACER, SPEEDOMETERSPACER, SPEEDOMETER
-
934955-13E00 CUSHION, METER NO.1CUSHION, METER NO.1
-
1007130-0520B BOLTBOLT
