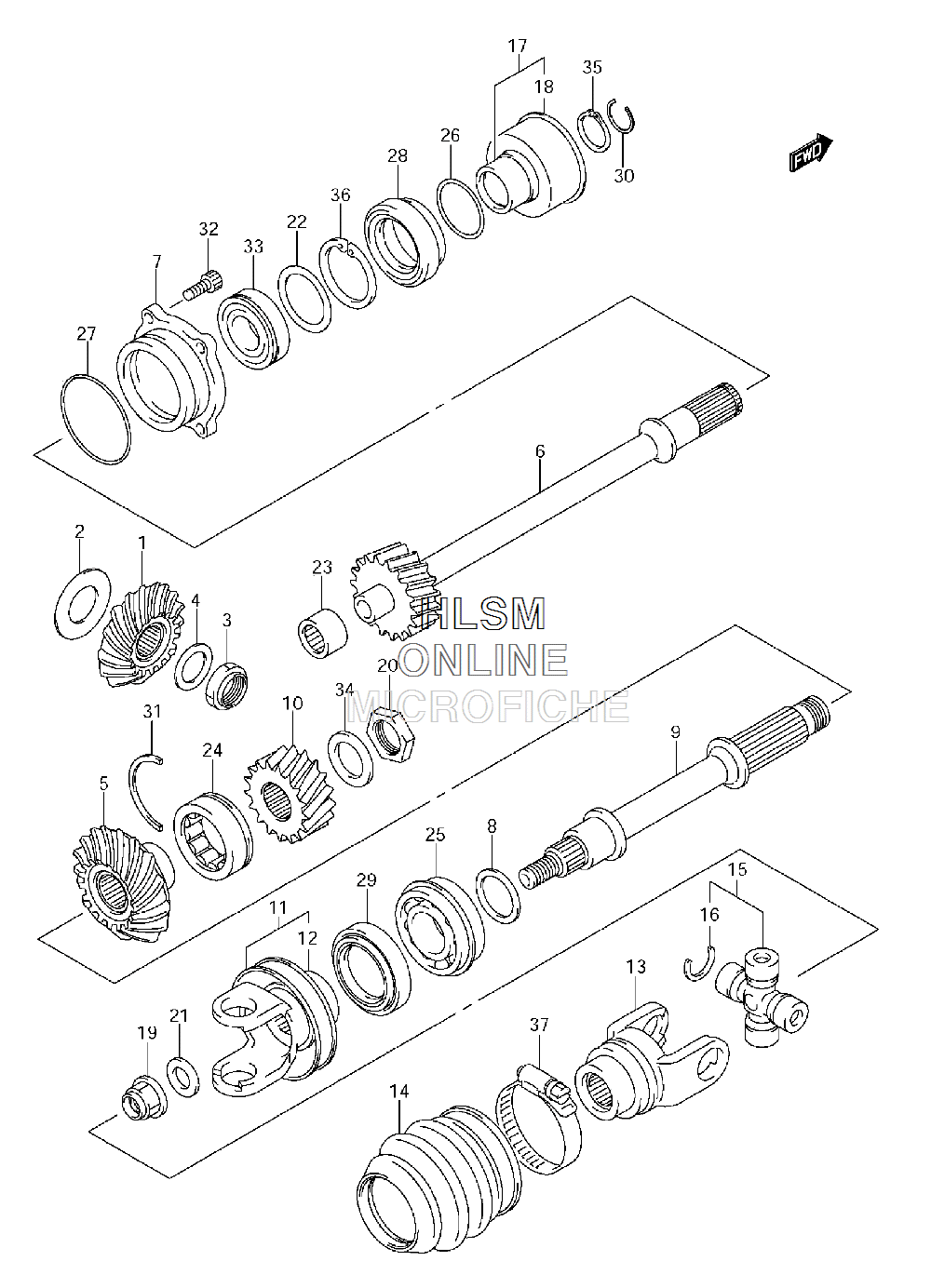

DRIVESHAFT - REAR для Suzuki LT-A500XZ KingQuad 500AXi (CAMO) - 2011 года выпуска
-
№АртикулНазвание
-
124911-11H00 GEAR, SEC DRIVE BEVELGEAR, SEC DRIVE BEVEL
-
224935-03811 SHIM SET, SEC DRIVE BEVELSHIM SET, SEC DRIVE BEVEL
-
309140-20012 NUTNUT
-
409181-20223 WASHER (20X32X1.0)WASHER (20X32X1.0)
-
524921-11H00 GEAR, SEC DRIVEN BEVELGEAR, SEC DRIVEN BEVEL
-
624961-31H00 SHAFT, SEC OUTPUT, FRONTSHAFT, SEC OUTPUT, FRONT
-
724965-31G00 HOUSING, FR OUTPUT SHAFTHOUSING, FR OUTPUT SHAFT
-
824945-03811 SHIM SET, SEC DRIVEN BEVELSHIM SET, SEC DRIVEN BEVEL
-
924971-11H00 SHAFT, SEC OUTPUT, REARSHAFT, SEC OUTPUT, REAR
-
1024972-31G20 GEAR, SEC DRIVEN OUTPUTGEAR, SEC DRIVEN OUTPUT
-
1127130-31G10 YOKE, RR DRIVE OUTPUT (INC 12)YOKE, RR DRIVE OUTPUT (INC 12)
-
1227592-31G30 FLANGE, OUTPUT YOKEFLANGE, OUTPUT YOKE
-
1327141-31G00 YOKE, PROP SHAFTYOKE, PROP SHAFT
-
1427153-31G00 BOOT, REAR OUTPUT JOINTBOOT, REAR OUTPUT JOINT
-
1527200-73813 JOINT SET, UNIVERSAL (INC 16)JOINT SET, UNIVERSAL (INC 16)
-
1609380-25005 CIRCLIPCIRCLIP
-
1727590-31G00 COLLAR, FRONT DRIVE (INC 18)COLLAR, FRONT DRIVE (INC 18)
-
1827592-31G00 PLATE, OUTPUT OIL SEALPLATE, OUTPUT OIL SEAL
-
1909159-16003 NUTNUT
-
2009159-22005 NUTNUT
-
2109160-16026 WASHER (16X30X3.0)WASHER (16X30X3.0)
-
2209181-40195 WASHER (40X52X1.0)WASHER (40X52X1.0)
-
2309263-25068 BEARING (25X37X17)BEARING (25X37X17)
-
2409263-30050 BEARING (30X50X17)BEARING (30X50X17)
-
2509267-25014 BEARING (25X52X20.6)BEARING (25X52X20.6)
-
2609280-25005 O RING (D:1.9,ID:24.5)O RING (D:1.9,ID:24.5)
-
2709280-57002 O RING (D:3.5,ID:65.2)O RING (D:3.5,ID:65.2)
-
2809283-34008 SEAL (34X52X9)SEAL (34X52X9)
-
2909283-34008 SEAL (34X52X9)SEAL (34X52X9)
-
3009381-21002 C-RINGC-RING
-
3109390-50002 RINGRING
-
3207130-0620B BOLTBOLT
-
3309262-25003 BEARING (25X52X15)BEARING (25X52X15)
-
3408211-22365 WASHERWASHER
-
3508331-3125A CIRCLIPCIRCLIP
-
3608331-4152A CIRCLIPCIRCLIP
-
3709402-00512 CLAMPCLAMP
