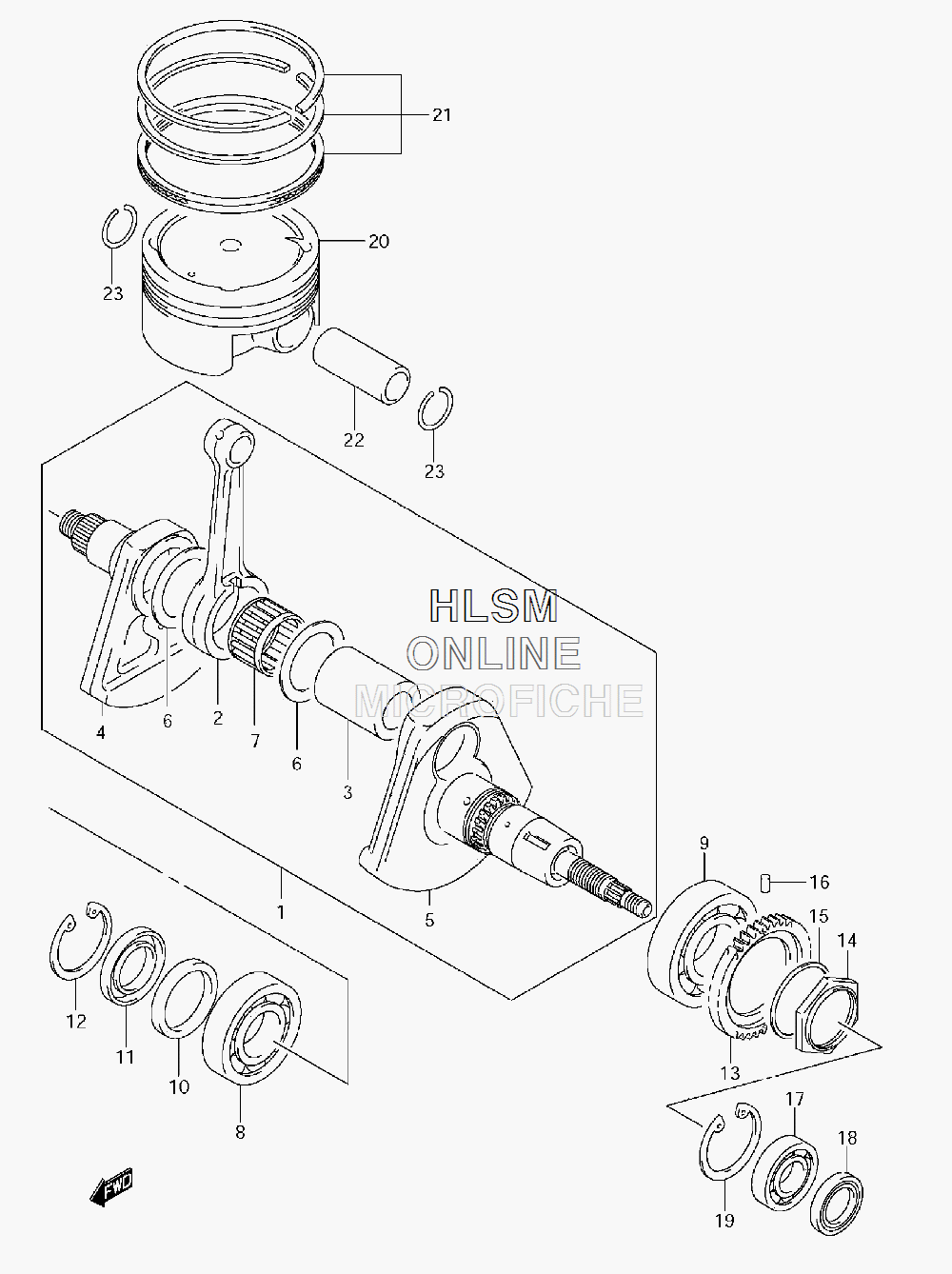

CRANKSHAFT W/ PISTON для Suzuki LT-A500XZ KingQuad 500AXi (CAMO) - 2011 года выпуска
-
№АртикулНазвание
-
112200-11H00 CRANKSHAFT ASSY (INC 2-7)CRANKSHAFT ASSY (INC 2-7)
-
212161-11H00 CONNRODCONNROD
-
312210-11H00 PIN, CRANKPIN, CRANK
-
412220-11H00 CRANKSHAFT RIGHT HANDCRANKSHAFT RIGHT HAND
-
512261-11H00 CRANKSHAFT LEFT HANDCRANKSHAFT LEFT HAND
-
609160-35005 WASHERWASHER
-
709263-35043 BEARING (35X44X25)BEARING (35X44X25)
-
809262-40008 BEARING (40X80X18)BEARING (40X80X18)
-
909262-45007 BEARING (45X85X19)BEARING (45X85X19)
-
1009282-34003 OIL SEAL (34X49X6)OIL SEAL (34X49X6)
-
1109282-34001 OIL SEAL (34X52X6)OIL SEAL (34X52X6)
-
1208331-4152A CIRCLIPCIRCLIP
-
1312661-31G01 GEAR, CRANK BALANCER DRIVEGEAR, CRANK BALANCER DRIVE
-
1412664-31G00 NUT, CRANK BALANCER DRIVE GEARNUT, CRANK BALANCER DRIVE GEAR
-
1509160-45006 WASHER (45X60X1.2)WASHER (45X60X1.2)
-
1609261-05005 PINPIN
-
1709262-25006 BEARING (25X47X8)BEARING (25X47X8)
-
1809283-25095 OIL SEAL (25X42X6)OIL SEAL (25X42X6)
-
1908331-41479 CIRCLIPCIRCLIP
-
2012111-31H00-0F0 PISTONPISTON
-
2112140-03G20 RING SET, PISTONRING SET, PISTON
-
2212151-24A00 PIN, PISTONPIN, PISTON
-
2309381-20004 CIRCLIPCIRCLIP
