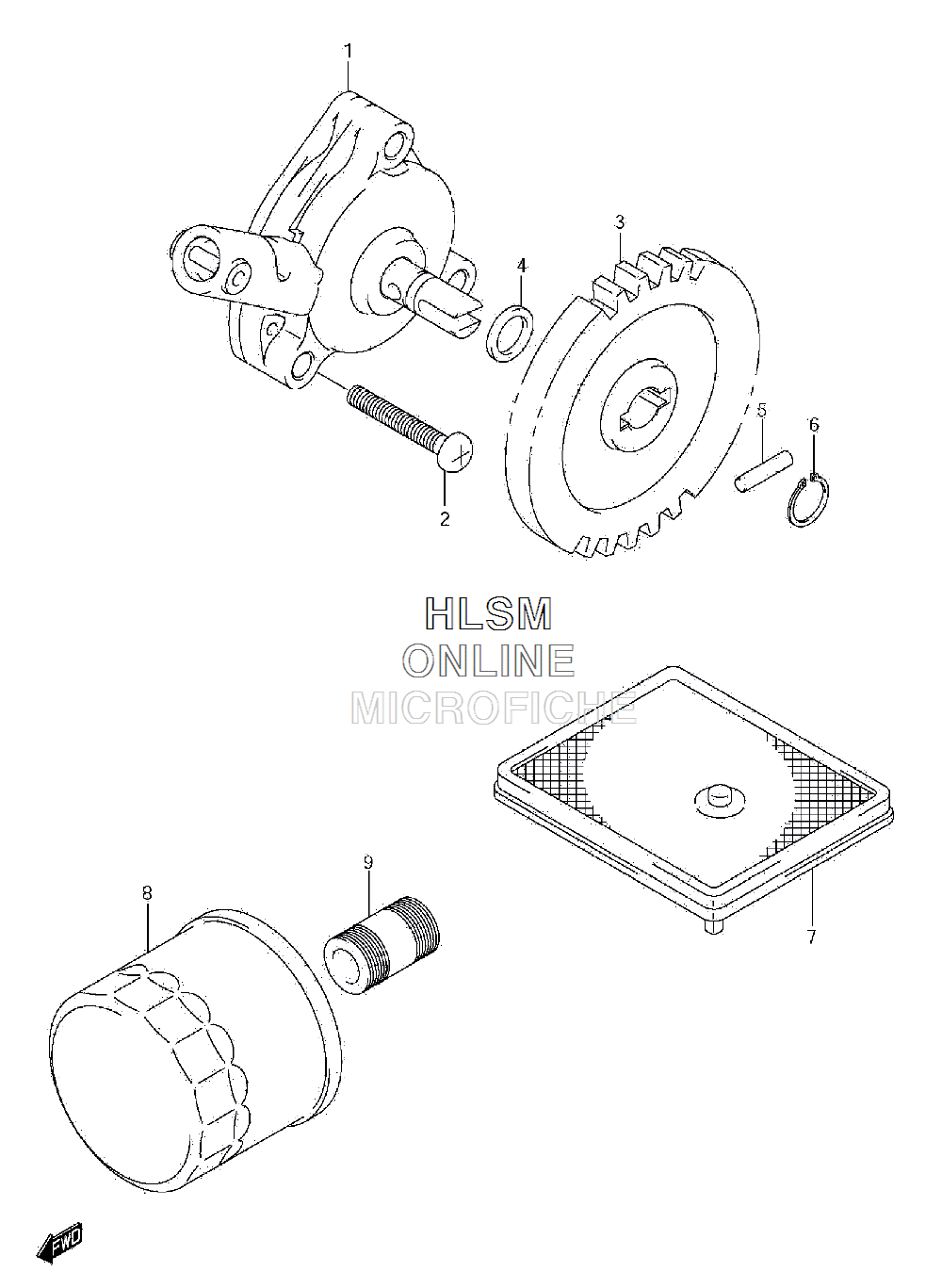

OIL PUMP для Suzuki LT-A500XZ KingQuad 500AXi (CAMO) - 2011 года выпуска
-
№АртикулНазвание
-
116400-11H00 PUMP ASSY, ENG OILPUMP ASSY, ENG OIL
-
209125-06119 SCREW (6X30)SCREW (6X30)
-
316331-31H00 SPROCKET, OIL PUMP DRIVESPROCKET, OIL PUMP DRIVE
-
409181-10158 WASHER (10X18X0.5)WASHER (10X18X0.5)
-
509261-04009 PINPIN
-
608331-3110A CIRCLIPCIRCLIP
-
716520-32E00 STRAINER, OILSTRAINER, OIL
-
816510-03G00-X07 FILTER ASSY, ENG OILFILTER ASSY, ENG OIL
-
916591-06B01 UNION, OIL FILTER STANDUNION, OIL FILTER STAND
