FENDER - FRONT (CANADA) для Suzuki LT-A500XZ KingQuad 500AXi (CAMO) - 2011 года выпуска

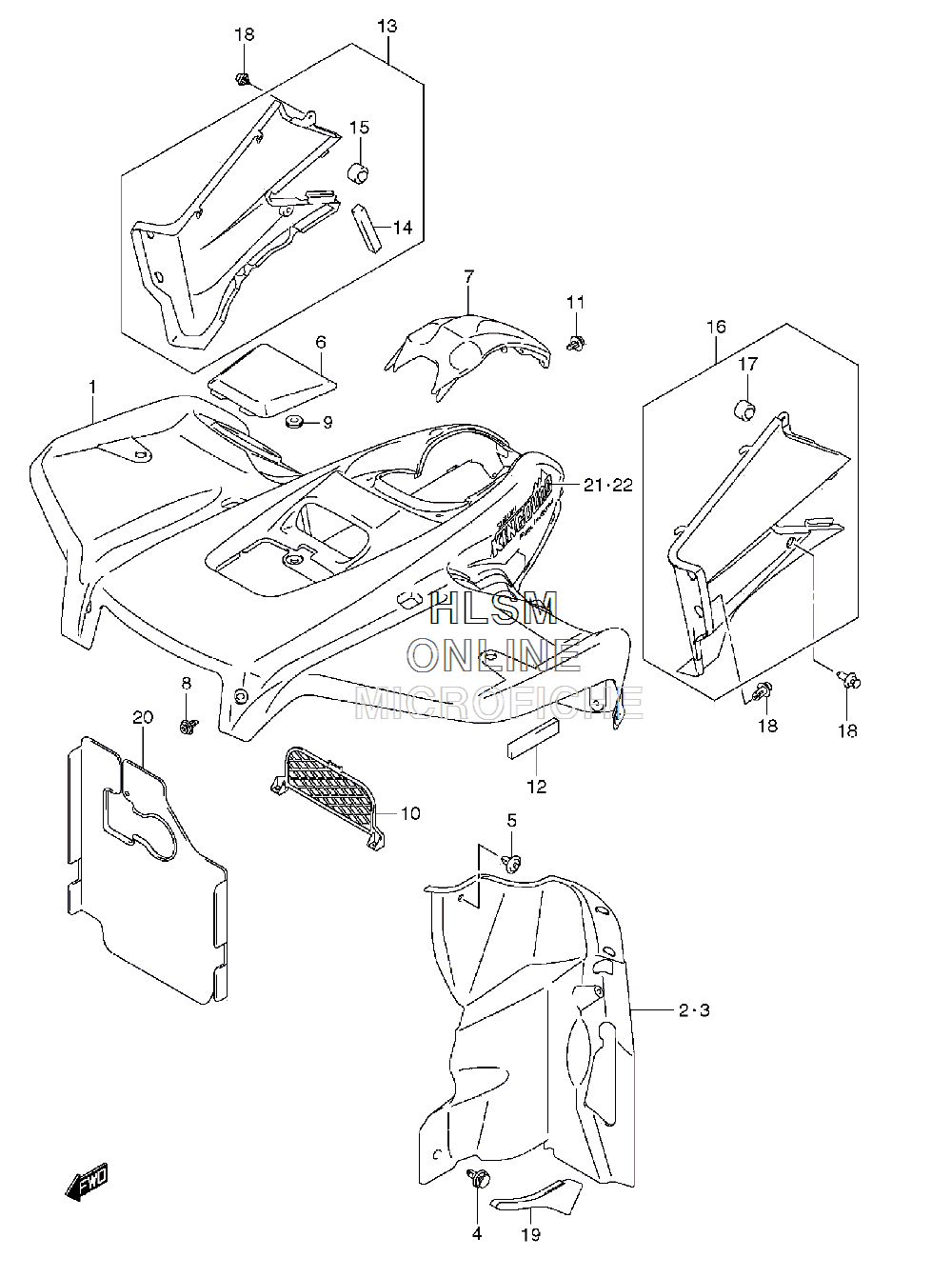

![](/wa-data/public/shop/sheme/suzuki/atv/ba68b760-8d36-43dc-bace-c91754cfbb2a.gif)
-
№АртикулНазвание
-
153111-31GC2-YVA FENDER, FRONT (CAMOUFLAGE)FENDER, FRONT (CAMOUFLAGE)
-
253411-31G02 MUDFLAP, INNER RIGHT HANDMUDFLAP, INNER RIGHT HAND
-
353421-31G01 MUDFLAP, INNER LEFT HANDMUDFLAP, INNER LEFT HAND
-
409409-08335 CLIP, LOWERCLIP, LOWER
-
509409-07333 CLIP, UPPERCLIP, UPPER
-
653341-31GC0-YVA LID (CAMOUFLAGE)LID (CAMOUFLAGE)
-
753119-31GC1-YVA FENDER, CENTER (CAMOUFLAGE)FENDER, CENTER (CAMOUFLAGE)
-
809409-08335 CLIPCLIP
-
909320-08018 CUSHIONCUSHION
-
1053212-31G00 COVER, INNERCOVER, INNER
-
1109409-08335 CLIPCLIP
-
1253145-07G01 CUSHION, FENDER SIDECUSHION, FENDER SIDE
-
1353110-31G10-291 COVER, SIDE RIGHT HAND (BLACK)COVER, SIDE RIGHT HAND (BLACK)
-
1453146-05G00 CUSHION, COVER SIDECUSHION, COVER SIDE
-
1509321-10019 GROMMETGROMMET
-
1653110-31G20-291 COVER, SIDE LEFT HAND (BLACK)COVER, SIDE LEFT HAND (BLACK)
-
1753146-05G00 CUSHION, COVER SIDECUSHION, COVER SIDE
-
1809409-08335 CLIPCLIP
-
1953116-31G00 MUDGUARD, SIDE RIGHT HANDMUDGUARD, SIDE RIGHT HAND
-
2053117-31G00 COVER, CENTERCOVER, CENTER
-
2168151-31GC0-EFG EMBLEM, RIGHT HANDEMBLEM, RIGHT HAND
-
2268152-31GC0-EFG EMBLEM, LEFT HANDEMBLEM, LEFT HAND
