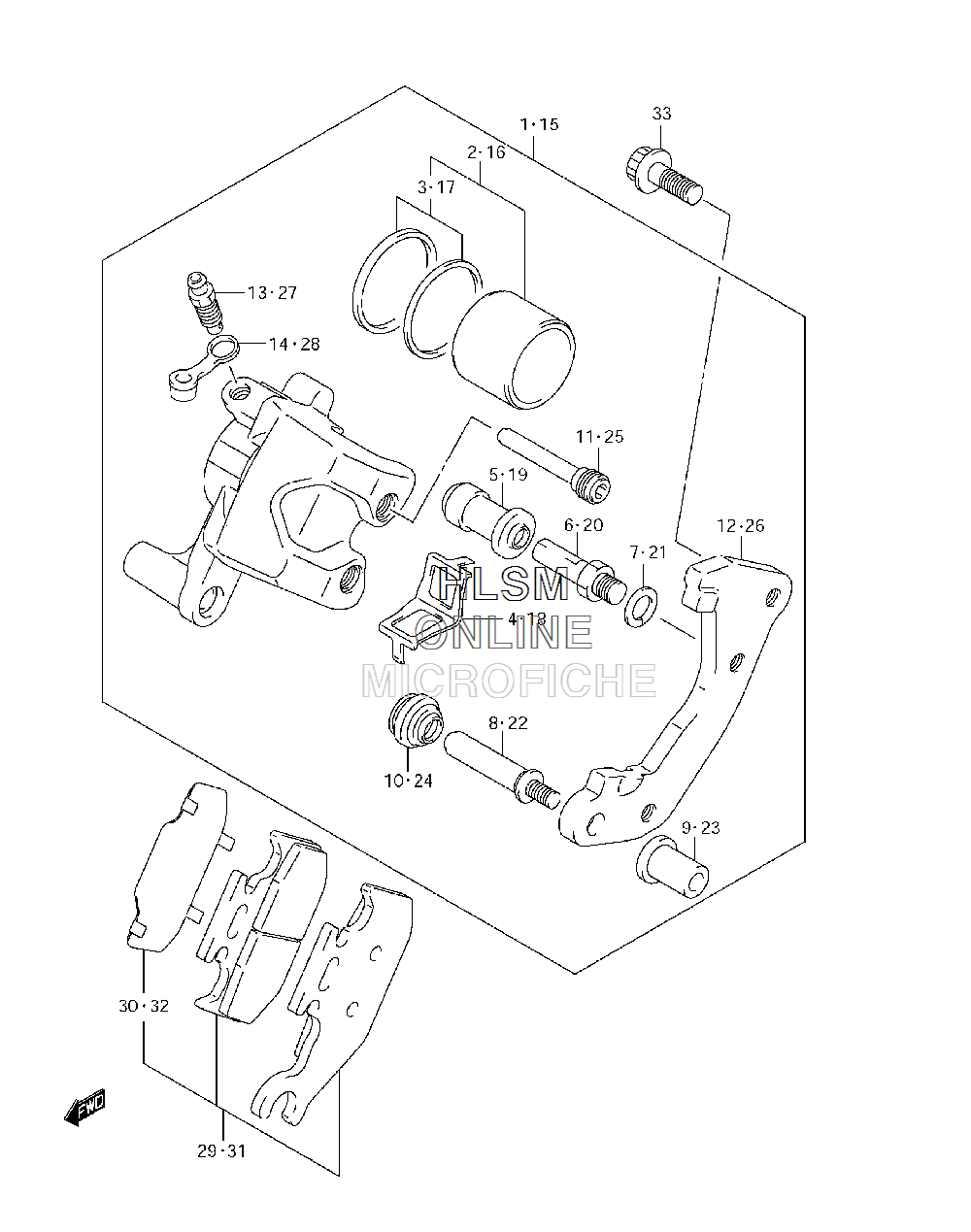

BRAKE - FRONT CALIPER для Suzuki LT-A500XZ KingQuad 500X (CAMO/LTD METALLIC RED) - 2013 года выпуска
-
№АртикулНазвание
-
159100-31G00-999 CALIPER ASSY, FRONT RIGHTCALIPER ASSY, FRONT RIGHT
-
259300-13810 ...PISTON SET...PISTON SET
-
369100-13820 ......SEAL SET, PISTON......SEAL SET, PISTON
-
459315-27C00 ...SPRING, PAD...SPRING, PAD
-
559386-13A00 ...BOOT...BOOT
-
659382-13A00 ...PIN...PIN
-
759314-13A00 ...WASHER...WASHER
-
859387-00B20 ...PIN...PIN
-
959388-00B20 ...NUT...NUT
-
1059303-14500 ...BOOT...BOOT
-
1159145-39D00 ...PIN, HANGER...PIN, HANGER
-
1259151-31G00 ...BRACKET, RH...BRACKET, RH
-
1359121-01A00 ...BLEEDER...BLEEDER
-
1459122-01A00 ...CAP...CAP
-
1559300-31G01-999 CALIPER ASSY, FRONT LEFTCALIPER ASSY, FRONT LEFT
-
1659300-13810 ...PISTON SET...PISTON SET
-
1769100-13820 ......SEAL SET, PISTON......SEAL SET, PISTON
-
1859315-27C00 ...SPRING, PAD...SPRING, PAD
-
1959386-13A00 ...BOOT...BOOT
-
2059382-13A00 ...PIN...PIN
-
2159314-13A00 ...WASHER...WASHER
-
2259387-00B20 ...PIN...PIN
-
2359388-00B20 ...NUT...NUT
-
2459303-14500 ...BOOT...BOOT
-
2559145-39D00 ...PIN, HANGER...PIN, HANGER
-
2659351-31G00 ...BRACKET, LH...BRACKET, LH
-
2759121-01A00 ...BLEEDER...BLEEDER
-
2859122-01A00 ...CAP...CAP
-
2959100-31850 PAD & SHIM SET RHPAD & SHIM SET RH
-
3069132-28C00 ...SHIM...SHIM
-
3159100-31860 PAD & SHIM SET LHPAD & SHIM SET LH
-
3269132-28C00 ...SHIM...SHIM
-
3309106-08176 BOLT (8X20)BOLT (8X20)
