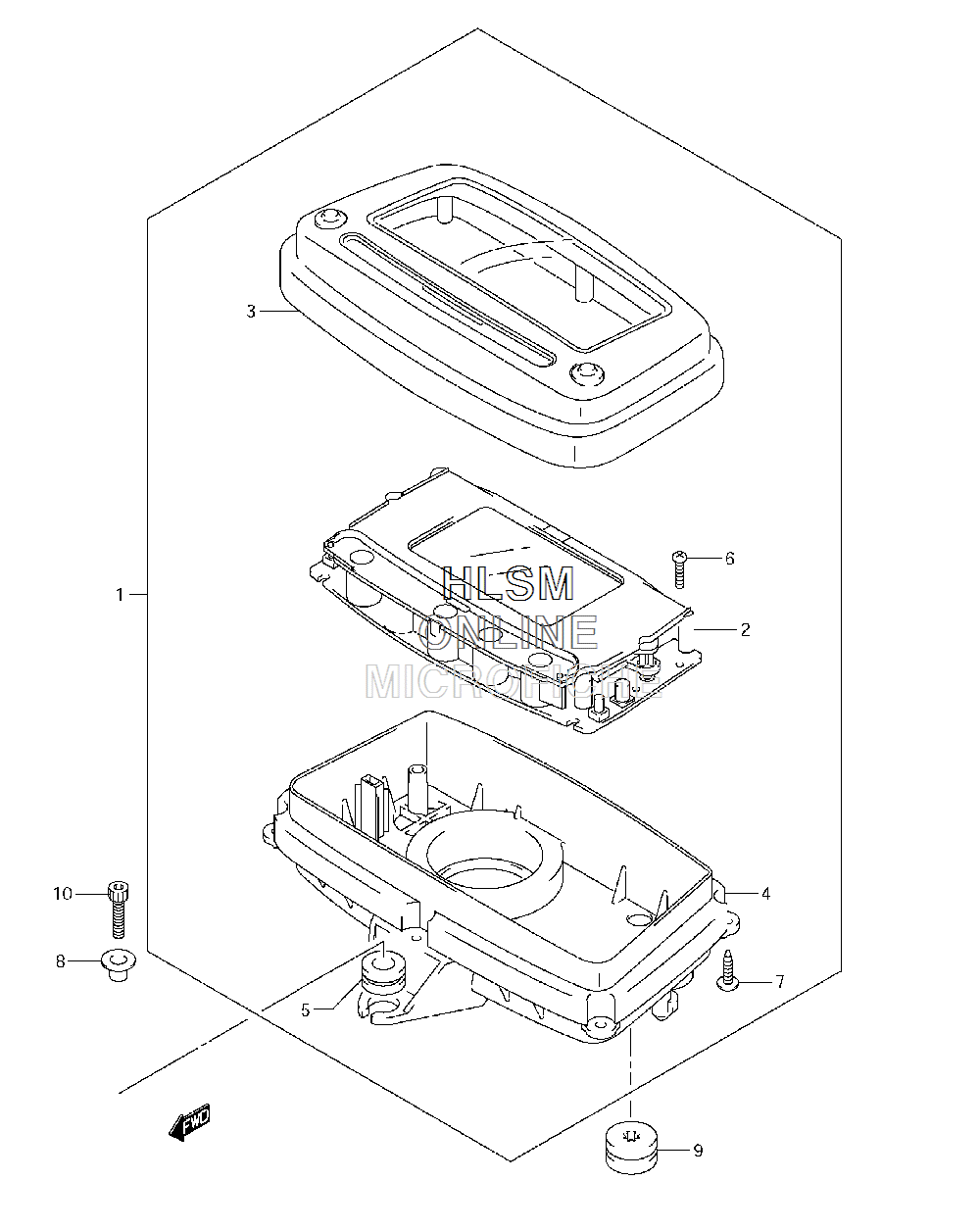

SPEEDOMETER для Suzuki LT-A500XZ KingQuad 500X (CAMO/LTD METALLIC RED) - 2013 года выпуска
-
№АртикулНазвание
-
134100-11HB0 SPEEDOMETER ASSYSPEEDOMETER ASSY
-
234120-11HA0 ...SPEEDOMETER...SPEEDOMETER
-
334150-31G30 ...CASE, UPPER...CASE, UPPER
-
434111-31G30 ...CASE, LOWER...CASE, LOWER
-
534995-31G30 ...CUSHION, METER...CUSHION, METER
-
634147-31G30 ...SCREW (3X10)...SCREW (3X10)
-
734149-31G30 ...SCREW (3X12)...SCREW (3X12)
-
834187-47F00 SPACER, SPEEDOMETERSPACER, SPEEDOMETER
-
934955-13E00 CUSHION, METER NO.1CUSHION, METER NO.1
-
1007130-0520B BOLTBOLT
