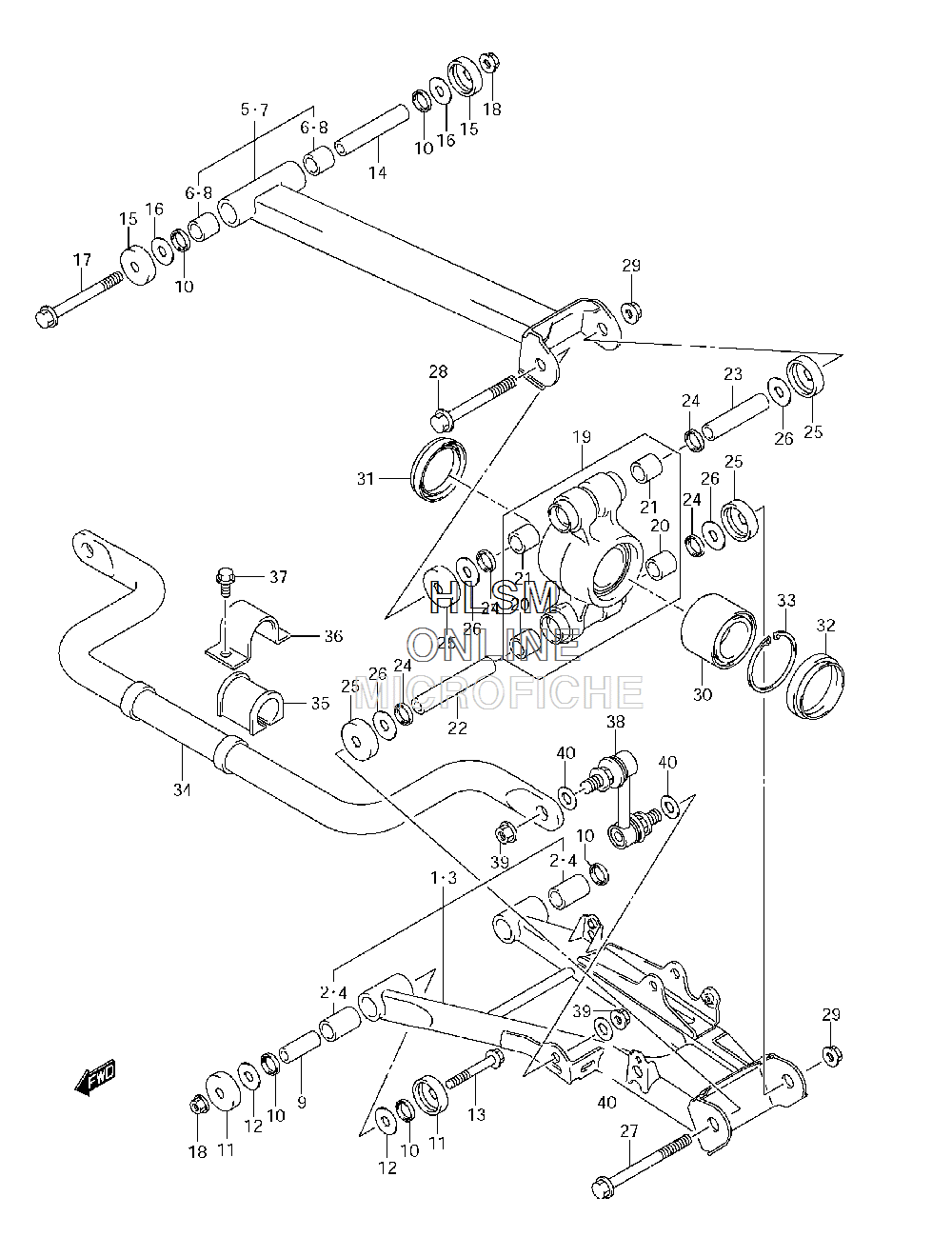

SUSPENSION - REAR ARM для Suzuki LT-A500XZ KingQuad 500X (CAMO/LTD METALLIC RED) - 2013 года выпуска
-
№АртикулНазвание
-
161510-31821 ARM SET, RR SUSPENSION LOWER RIGHTARM SET, RR SUSPENSION LOWER RIGHT
-
251236-31G00 ...BUSH, RR SPNSN ARM LOWER...BUSH, RR SPNSN ARM LOWER
-
361520-31821 ARM SET, RR SUSPENSION LOWER LEFTARM SET, RR SUSPENSION LOWER LEFT
-
451236-31G00 ...BUSH, RR SPNSN ARM LOWER...BUSH, RR SPNSN ARM LOWER
-
561530-31830 ARM SET, RR SUSPENSION UPPER RIGHTARM SET, RR SUSPENSION UPPER RIGHT
-
651236-31G00 ...BUSH, RR SPNSN ARM UPPER...BUSH, RR SPNSN ARM UPPER
-
761540-31830 ARM SET, RR SUSPENSION UPPER LEFTARM SET, RR SUSPENSION UPPER LEFT
-
851236-31G00 ...BUSH, RR SPNSN ARM UPPER...BUSH, RR SPNSN ARM UPPER
-
961552-31G10 SPACER, RR SPNSN ARM LOWERSPACER, RR SPNSN ARM LOWER
-
1052454-45G00 SEALSEAL
-
1151255-18900 SEAL, RR SPNSN ARM LOWERSEAL, RR SPNSN ARM LOWER
-
1208211-10281 WASHERWASHER
-
1309103-10392 BOLT (10X70)BOLT (10X70)
-
1461554-31G00 SPACER, RR SPNSN ARM UPPERSPACER, RR SPNSN ARM UPPER
-
1551255-31G00 SEAL, RR SPNSN ARM UPPERSEAL, RR SPNSN ARM UPPER
-
1608211-10281 WASHERWASHER
-
1709103-10388 BOLT (10X120)BOLT (10X120)
-
1809159-10115 NUTNUT
-
1961600-11820 KNUCKLE SET, RR SUSPENSIONKNUCKLE SET, RR SUSPENSION
-
2051236-31G00 ...BUSH, RR KNUCKLE...BUSH, RR KNUCKLE
-
2161551-31G10 ...BUSH, RR KNUCKLE UPPER...BUSH, RR KNUCKLE UPPER
-
2261554-31G00 SPACER, RR KNUCKLE LOWERSPACER, RR KNUCKLE LOWER
-
2361553-31G10 SPACER, RR KNUCKLE UPPERSPACER, RR KNUCKLE UPPER
-
2452454-45G00 SEALSEAL
-
2551255-18900 SEAL, RR KNUCKLE DUSTSEAL, RR KNUCKLE DUST
-
2608211-10281 WASHERWASHER
-
2709103-10388 BOLT (10X120)BOLT (10X120)
-
2809103-10387 BOLT (10X96)BOLT (10X96)
-
2909159-10115 NUTNUT
-
3043440-58J00 BEARING, RR HUBBEARING, RR HUB
-
3161615-31G00 SEAL, REAR HUB INNER DUSTSEAL, REAR HUB INNER DUST
-
3261616-31G00 SEAL, REAR HUB OUTER DUSTSEAL, REAR HUB OUTER DUST
-
3308331-4162A CIRCLIPCIRCLIP
-
3461651-31G10 BAR, RR STABILIZERBAR, RR STABILIZER
-
3561652-31G20 BUSH, RR STABILIZERBUSH, RR STABILIZER
-
3642415-66D00 BRACKET, STABILIZER BAR MOUNTBRACKET, STABILIZER BAR MOUNT
-
3709103-08283 BOLT (8X16)BOLT (8X16)
-
3861660-31G20 JOINT, RR STABILIZERJOINT, RR STABILIZER
-
3909159-10223 NUTNUT
-
4009160-10039 WASHERWASHER
