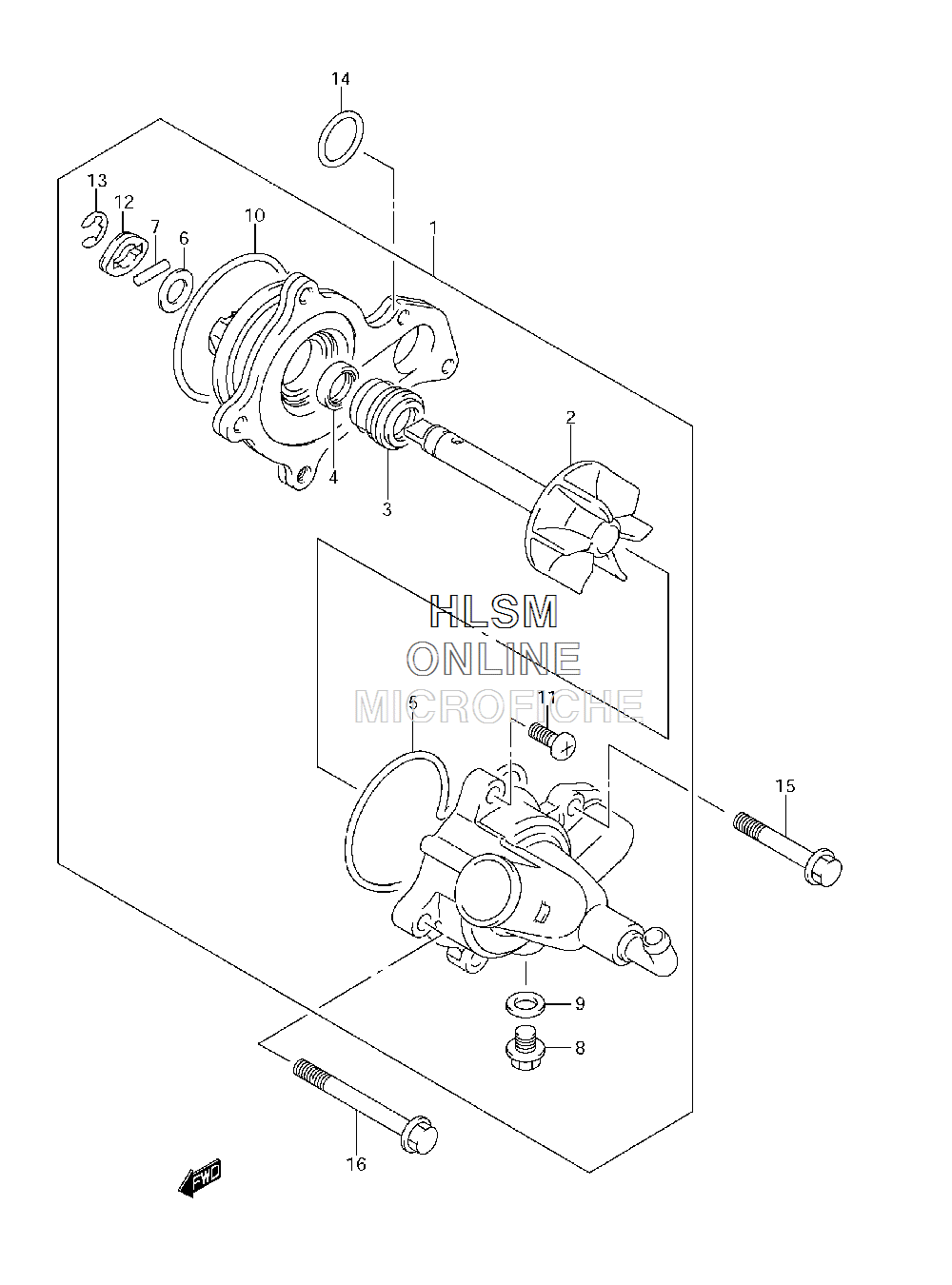

WATER PUMP для Suzuki LT-A500XZ KingQuad 500X (CAMO/LTD METALLIC RED) - 2013 года выпуска
-
№АртикулНазвание
-
117400-11H10 PUMP ASSY, WATERPUMP ASSY, WATER
-
217491-11H00 ...IMPELLER...IMPELLER
-
317470-02F01 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
417461-48G00 ...OIL SEAL...OIL SEAL
-
517418-11H00 ...O RING...O RING
-
617432-07G00 ...WASHER...WASHER
-
717482-03G00 ...PIN...PIN
-
817415-20920 ...BOLT...BOLT
-
909168-08016 ...GASKET (8.2X14X1)...GASKET (8.2X14X1)
-
1017435-33400 ...O RING...O RING
-
1102112-0616A ...SCREW...SCREW
-
1217432-11H00 ...CAP...CAP
-
1308332-1108A ...E RING...E RING
-
1409280-22001 O RING (D:2.4,ID:21.8)O RING (D:2.4,ID:21.8)
-
1509103-06297 BOLT (6X30)BOLT (6X30)
-
1601547-0645A BOLTBOLT
