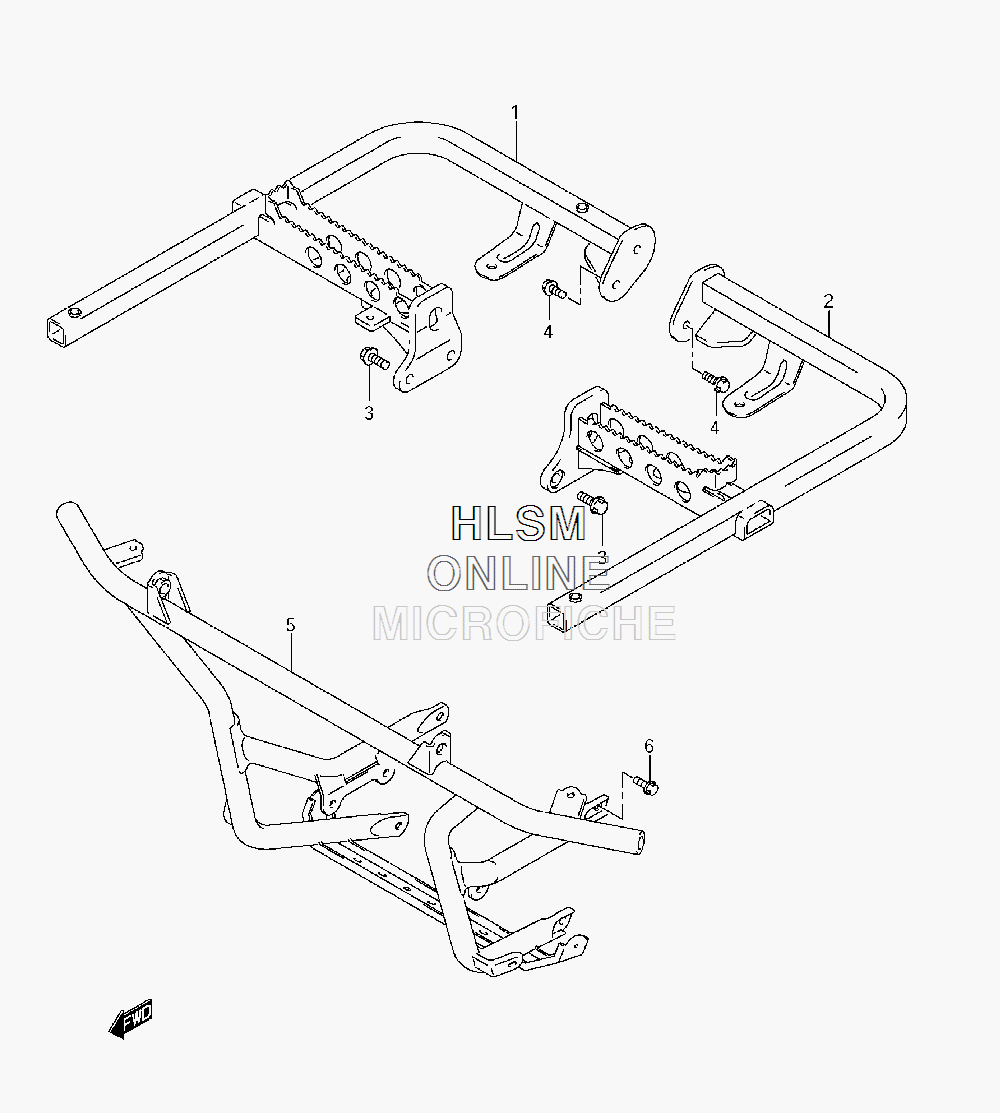

FOOTREST W/ BUMBER для Suzuki LT-A500XZ KingQuad 500X (CAMO/LTD METALLIC RED) - 2013 года выпуска
-
№АртикулНазвание
-
143510-11HA0 FOOTREST, FRONT RIGTHFOOTREST, FRONT RIGTH
-
243520-11HA0 FOOTREST, FRONT LEFTFOOTREST, FRONT LEFT
-
309103-10378 BOLT (10X25)BOLT (10X25)
-
409103-08286 BOLT (8X20)BOLT (8X20)
-
543990-31GB0 GRIP, FRONTGRIP, FRONT
-
609103-08283 BOLT (8X16)BOLT (8X16)
