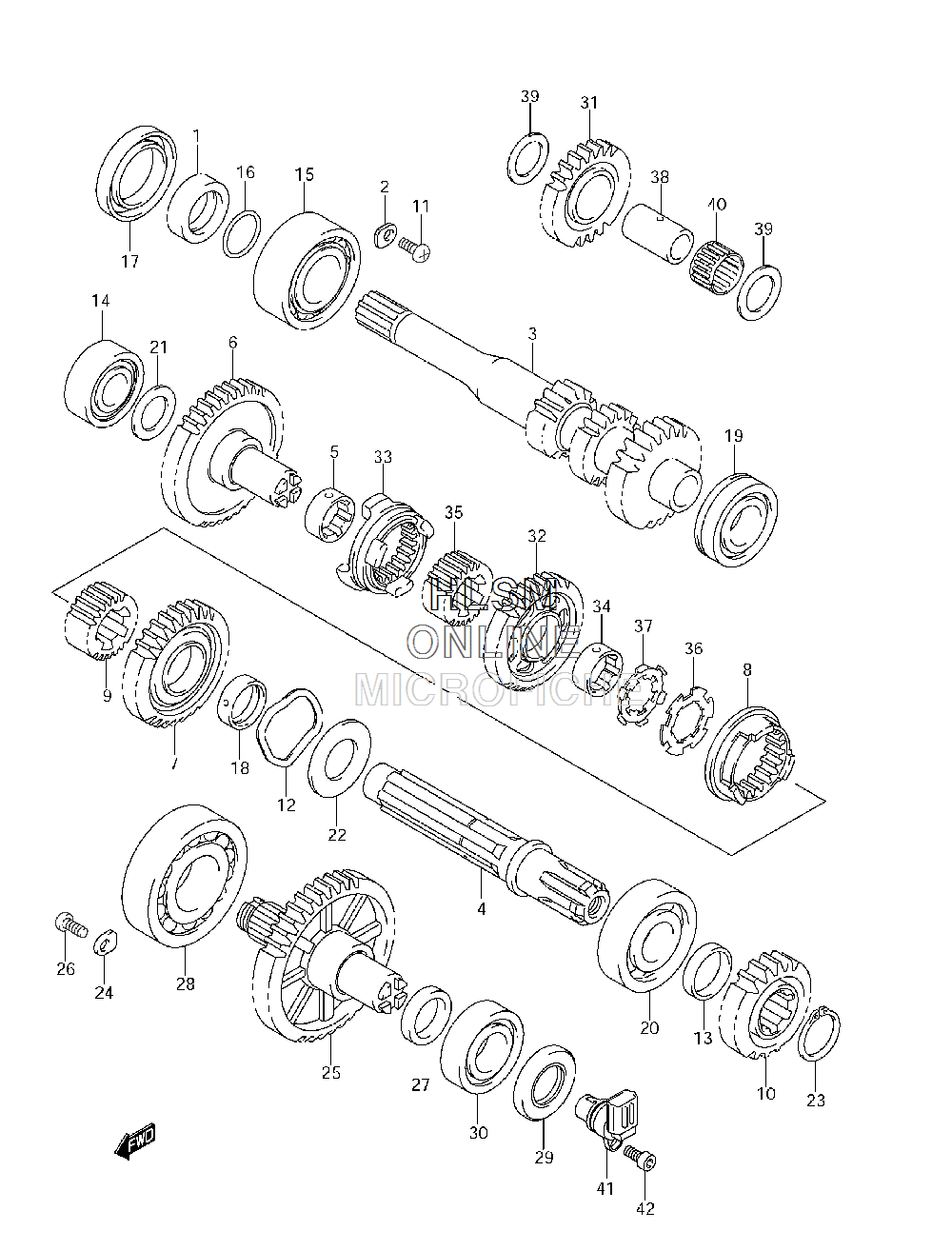

TRANSMISSION (2) для Suzuki LT-A500XZ KingQuad 500X (CAMO/LTD METALLIC RED) - 2013 года выпуска
-
№АртикулНазвание
-
121102-31G00 SPACER, DRIVE SHAFTSPACER, DRIVE SHAFT
-
224741-21A00 RETAINER, DRIVE SHAFT RHRETAINER, DRIVE SHAFT RH
-
329111-11H01 SHAFT, DRIVE (NT:25/16)SHAFT, DRIVE (NT:25/16)
-
429131-31G00 SHAFT, SUB T/M COUNTERSHAFT, SUB T/M COUNTER
-
529215-07G00 BUSH, SUB T/M DRIVEN GR LOWBUSH, SUB T/M DRIVEN GR LOW
-
629311-31G00 GEAR, SUB T/M DRIVEN LOW (NT:41)GEAR, SUB T/M DRIVEN LOW (NT:41)
-
729321-31G00 GEAR, SUB T/M DRIVEN HIGH (NT:31)GEAR, SUB T/M DRIVEN HIGH (NT:31)
-
829331-31G00 DOG, GEAR SHIFT HIGHDOG, GEAR SHIFT HIGH
-
929332-31G00 SPACER, SUB T/M SELECTSPACER, SUB T/M SELECT
-
1029411-31H00 GEAR, SUB T/M DRIVE NO.2 (NT:18)GEAR, SUB T/M DRIVE NO.2 (NT:18)
-
1109125-06122 SCREW (6X12)SCREW (6X12)
-
1209164-34001 WASHERWASHER
-
1309180-25097 SPACER (25X30X7)SPACER (25X30X7)
-
1409262-20139 BEARING (20X47X14)BEARING (20X47X14)
-
1509262-25153 BEARING (25X62X17)BEARING (25X62X17)
-
1609280-25004 O RING (D:2.4,ID:24.7)O RING (D:2.4,ID:24.7)
-
1709283-38025 OIL SEAL (38X56X7)OIL SEAL (38X56X7)
-
1824252-19F00 BUSH, SUB T/M DRIVEN GRBUSH, SUB T/M DRIVEN GR
-
1909262-25142 BEARING (25X44.1X15)BEARING (25X44.1X15)
-
2009262-25073 BEARING (25X62X17)BEARING (25X62X17)
-
2108211-20363 WASHERWASHER
-
2208211-25463 WASHERWASHER
-
2308331-31259 CIRCLIPCIRCLIP
-
2424741-21A00 RETAINER, SEC DRIVE SHAFTRETAINER, SEC DRIVE SHAFT
-
2529120-31H00 SHAFT, SUB T/M OUTPUTSHAFT, SUB T/M OUTPUT
-
2609125-06122 SCREW (6X12)SCREW (6X12)
-
2709180-25083 SPACER (25X34X5.5)SPACER (25X34X5.5)
-
2809262-30077 BEARING (30X72X19)BEARING (30X72X19)
-
2909283-25076 OIL SEAL (25X45X5)OIL SEAL (25X45X5)
-
3009262-25003 BEARING (25X52X15)BEARING (25X52X15)
-
3124561-31G20 GEAR, REVERSE IDLE (NT:23)GEAR, REVERSE IDLE (NT:23)
-
3224571-31G00 GEAR, REVERSE DRIVEN (NT:32)GEAR, REVERSE DRIVEN (NT:32)
-
3324581-31G00 DOG, SUB T/M SELECT SLDOG, SUB T/M SELECT SL
-
3429215-07G00 BUSH, REVERSE DRIVEN GEARBUSH, REVERSE DRIVEN GEAR
-
3529332-31G00 SPACER, REVERSE SELECTSPACER, REVERSE SELECT
-
3609167-25013 LOCK WASHER (25.1X41X1.5)LOCK WASHER (25.1X41X1.5)
-
3709169-25001 WASHERWASHER
-
3824551-31G00 SHAFT, REVERSE IDLESHAFT, REVERSE IDLE
-
3909181-20195 SHIM (20X30X1)SHIM (20X30X1)
-
4009263-20060 BEARING (20X24X13)BEARING (20X24X13)
-
4134990-31G01 SENSOR, SPEEDSENSOR, SPEED
-
4207130-0616A BOLTBOLT
