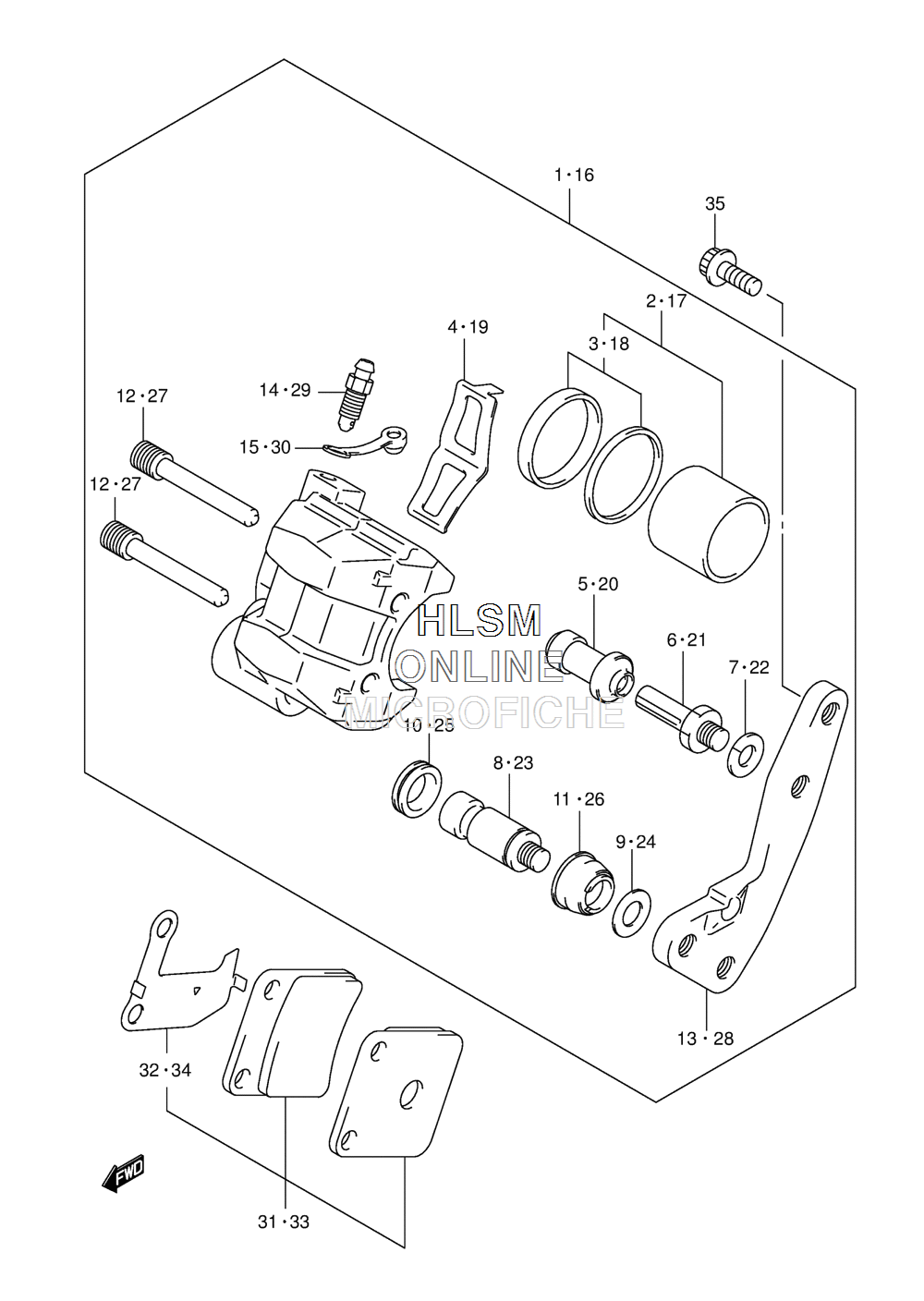

BRAKE - FRONT CALIPER для Suzuki LT-F250 Ozark 250 - 2014 года выпуска
-
№АртикулНазвание
-
159100-38F31-999 CALIPER ASSY, FRONT RIGHT HANDCALIPER ASSY, FRONT RIGHT HAND
-
259100-38850 PISTON SETPISTON SET
-
359100-38860 SEAL SET, PISTONSEAL SET, PISTON
-
459315-13A00 SPRING, PADSPRING, PAD
-
559386-13A00 BOOTBOOT
-
659382-13A00 BOLTBOLT
-
759314-13A00 WASHERWASHER
-
859105-38F00 PIN, SLIDEPIN, SLIDE
-
959306-13A00 SPRINGSPRING
-
1059384-13A00 SEAL, DUSTSEAL, DUST
-
1159303-13A00 BOOTBOOT
-
1259345-00B20 PINPIN
-
1359151-38F00 BRACKET, RIGHT HANDBRACKET, RIGHT HAND
-
1459121-01A00 BLEEDERBLEEDER
-
1559122-01A00 CAPCAP
-
1659300-38F31-999 CALIPER ASSY, FRONT LEFT HANDCALIPER ASSY, FRONT LEFT HAND
-
1759100-38850 PISTON SETPISTON SET
-
1859100-38860 SEAL SET, PISTONSEAL SET, PISTON
-
1959315-13A00 SPRING, PADSPRING, PAD
-
2059386-13A00 BOOTBOOT
-
2159382-13A00 BOLTBOLT
-
2259314-13A00 WASHERWASHER
-
2359105-38F00 PIN, SLIDEPIN, SLIDE
-
2459306-13A00 SPRINGSPRING
-
2559384-13A00 SEAL, DUSTSEAL, DUST
-
2659303-13A00 BOOTBOOT
-
2759345-00B20 PINPIN
-
2859351-38F00 BRACKET, LEFT HANDBRACKET, LEFT HAND
-
2959121-01A00 BLEEDERBLEEDER
-
3059122-01A00 CAPCAP
-
3159101-38851 PAD AND SHIM SET RIGHT HANDPAD AND SHIM SET RIGHT HAND
-
3259371-13A00 SHIM RIGHT HANDSHIM RIGHT HAND
-
3359101-38861 PAD AND SHIM SET LEFT HANDPAD AND SHIM SET LEFT HAND
-
3469372-00B20 SHIM LEFT HANDSHIM LEFT HAND
-
3509106-08174 BOLT (8X16)BOLT (8X16)
