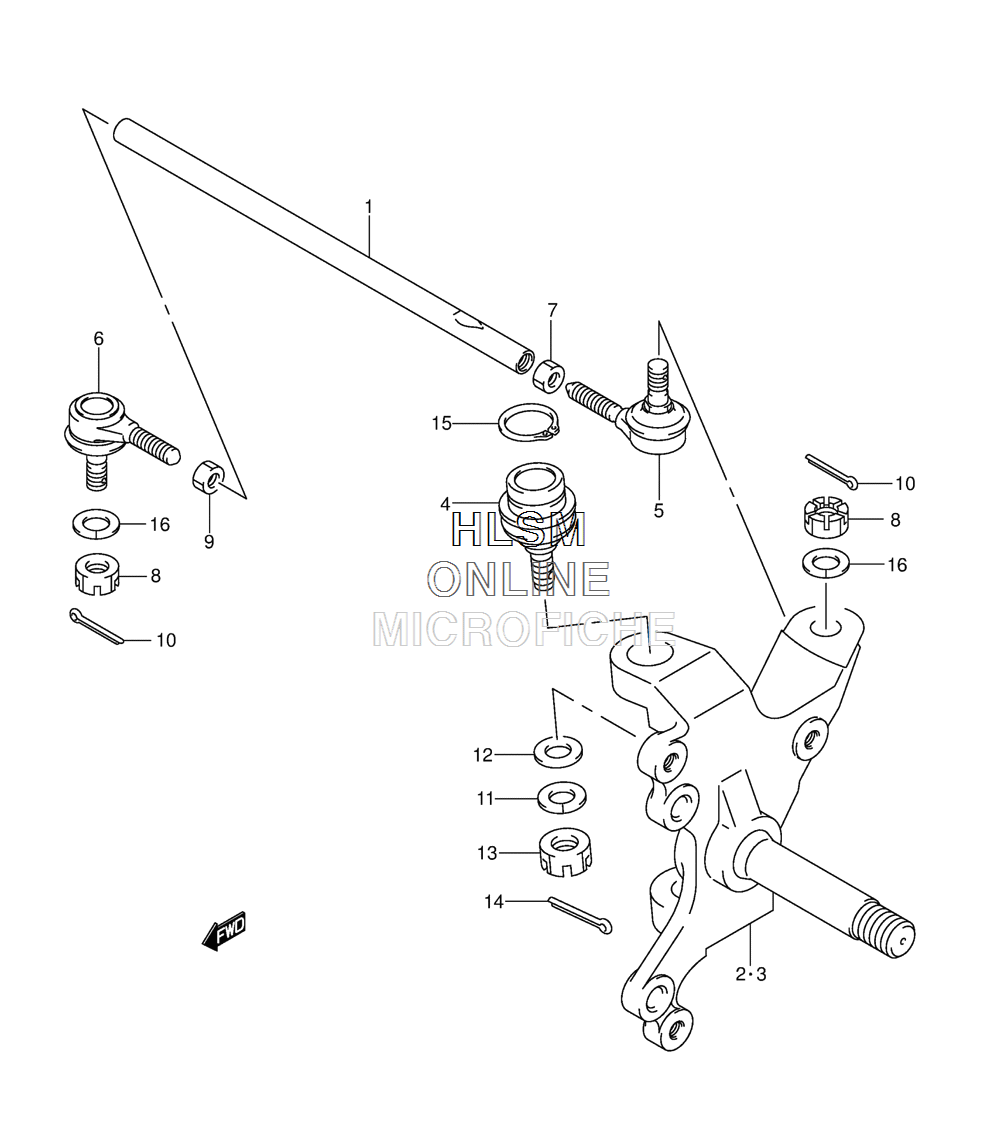

STEERING KNUCKLE W/ TIE RODS для Suzuki LT-F250 Ozark 250 - 2014 года выпуска
-
№АртикулНазвание
-
151281-05G00 TIE ROD, STEERINGTIE ROD, STEERING
-
251230-05G20 KNUCKLE, STEERING RIGHT HANDKNUCKLE, STEERING RIGHT HAND
-
351240-05G20 KNUCKLE, STEERING LEFT HANDKNUCKLE, STEERING LEFT HAND
-
451210-31G10 END, KNUCKLE STEERING UPPEREND, KNUCKLE STEERING UPPER
-
551260-21G00 ROD, END RIGHT HANDROD, END RIGHT HAND
-
651270-21G00 ROD, END LEFT HANDROD, END LEFT HAND
-
751283-21G00 NUT, TIE ROD RIGHT HANDNUT, TIE ROD RIGHT HAND
-
808314-4010A NUTNUT
-
909140-10027 NUTNUT
-
1004111-2020A COTTER PINCOTTER PIN
-
1109162-10010 LOCK WASHERLOCK WASHER
-
1208322-0110A WASHERWASHER
-
1308314-4010A NUTNUT
-
1404111-2020A COTTER PINCOTTER PIN
-
1508331-31309 CIRCLIPCIRCLIP
-
1609162-10010 LOCK WASHERLOCK WASHER
