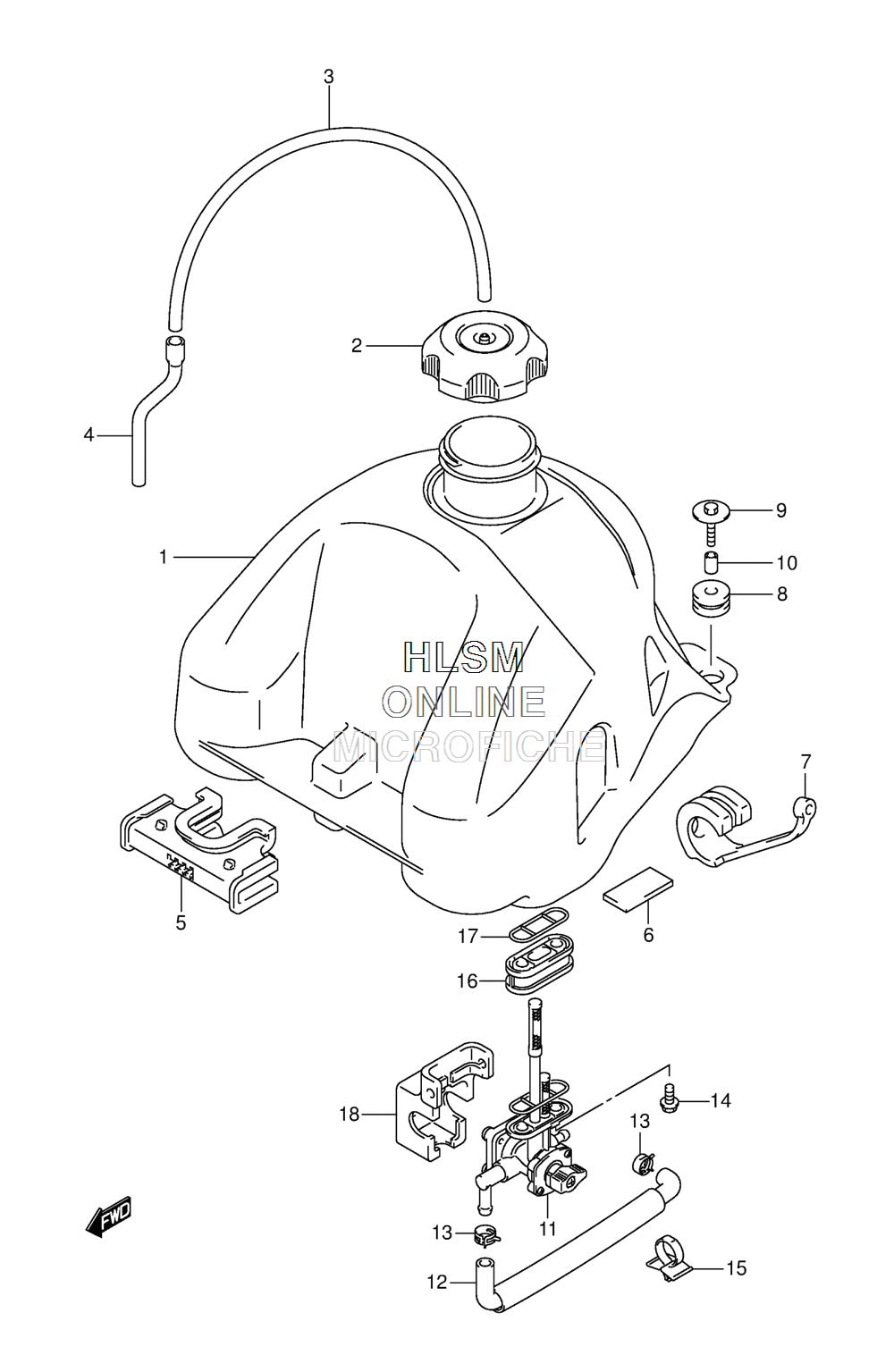

FUEL TANK для Suzuki LT-F250 Ozark 250 - 2014 года выпуска
-
№АртикулНазвание
-
144100-05GA1 TANK ASSY, FUELTANK ASSY, FUEL
-
244200-29F00 CAP ASSY, FUEL TANKCAP ASSY, FUEL TANK
-
309352-50823-600 HOSE (5X8.2X600)HOSE (5X8.2X600)
-
444433-21G00 HOSE, BREATHER NO.2HOSE, BREATHER NO.2
-
544511-03G00 CUSHION, FRONTCUSHION, FRONT
-
644556-33H00 CUSHIONCUSHION
-
744541-05GA0 CUSHION, LOWERCUSHION, LOWER
-
844281-03G00 CUSHION, REARCUSHION, REAR
-
909116-06190 BOLT (6X25)BOLT (6X25)
-
1009180-06293 SPACER (6.5X10X14)SPACER (6.5X10X14)
-
1144300-05G1V COCK ASSY, FUELCOCK ASSY, FUEL
-
1244420-05G00 HOSE, FUELHOSE, FUEL
-
1309401-11415 CLIPCLIP
-
1401547-0635B BOLTBOLT
-
1509403-12312 CLAMPCLAMP
-
1644365-05GA0 SPACERSPACER
-
1744366-05GA0 GASKETGASKET
-
1844542-05GA0 CUSHION, COCKCUSHION, COCK
