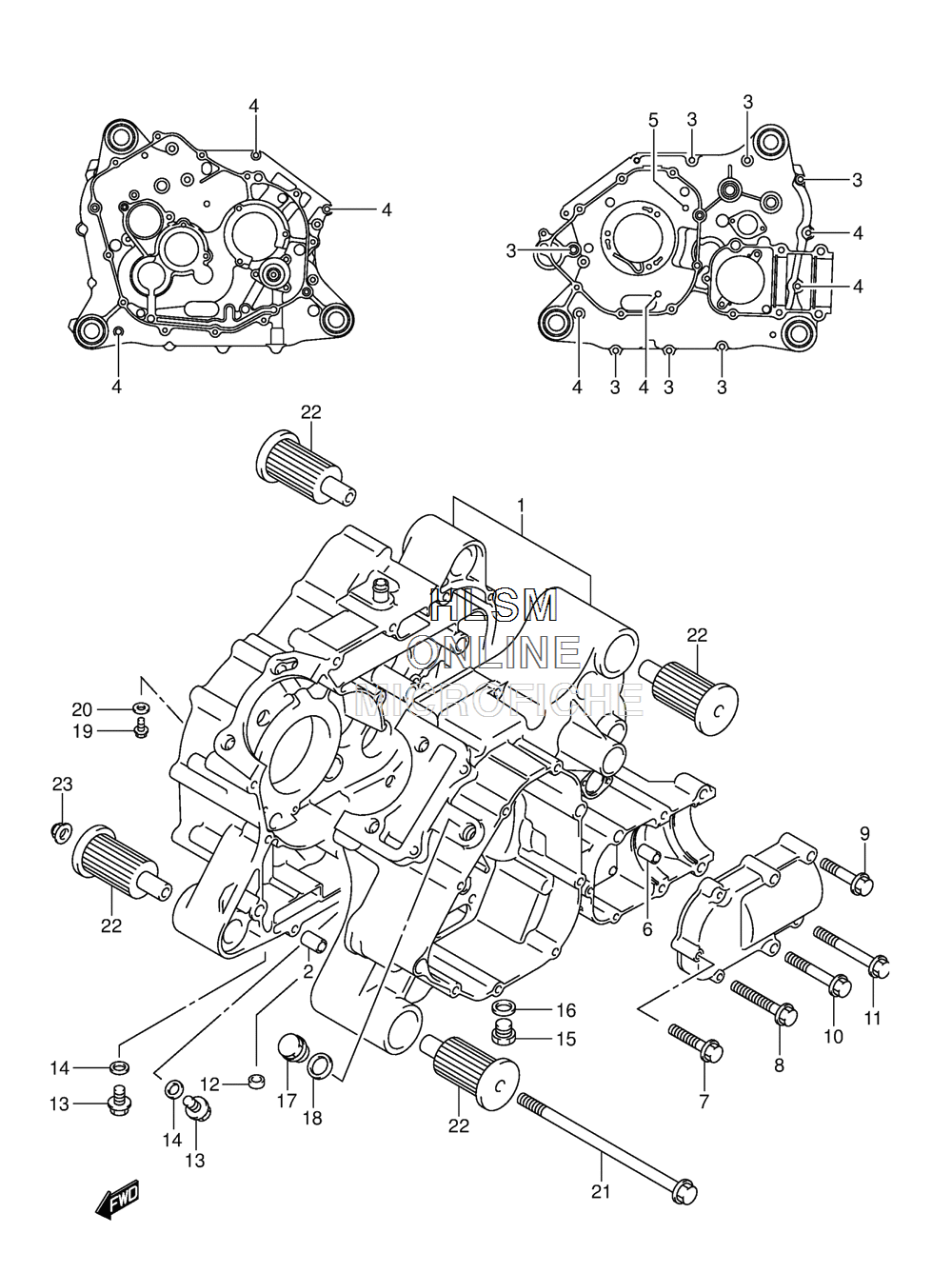

CRANKCASE для Suzuki LT-F250 Ozark 250 - 2014 года выпуска
-
№АртикулНазвание
-
111301-05830 CRANKCASE SETCRANKCASE SET
-
204211-11189 PIN (10.4X13X18)PIN (10.4X13X18)
-
301547-0640A BOLTBOLT
-
401547-0655A BOLTBOLT
-
501547-0665A BOLTBOLT
-
604211-11189 PIN (10.4X13X18)PIN (10.4X13X18)
-
701547-0630A BOLT, SEC CASEBOLT, SEC CASE
-
801547-0640A BOLT, SEC CASEBOLT, SEC CASE
-
901550-0850A BOLT, SEC CASEBOLT, SEC CASE
-
1001550-0860A BOLT, SEC CASEBOLT, SEC CASE
-
1101550-0870A BOLT, SEC CASEBOLT, SEC CASE
-
1211329-09410 JET, OIL GALLERY MISSIONJET, OIL GALLERY MISSION
-
1301550-0610A PLUG, OIL GALLERYPLUG, OIL GALLERY
-
1409168-06018 GASKET (6.2X13X1.2)GASKET (6.2X13X1.2)
-
1501550-1016A PLUG, OIL GALLERYPLUG, OIL GALLERY
-
1609168-10002 GASKET (10X14X3.6)GASKET (10X14X3.6)
-
1709247-14026 PLUG, TDCPLUG, TDC
-
1809168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
1909247-12102 PLUGPLUG
-
2009168-12002 GASKET (12.1X16.2X3.7)GASKET (12.1X16.2X3.7)
-
2109103-10278 BOLT (10X160)BOLT (10X160)
-
2211651-05G01 BUSH, ENGINE MTGBUSH, ENGINE MTG
-
2309159-10115 NUTNUT
