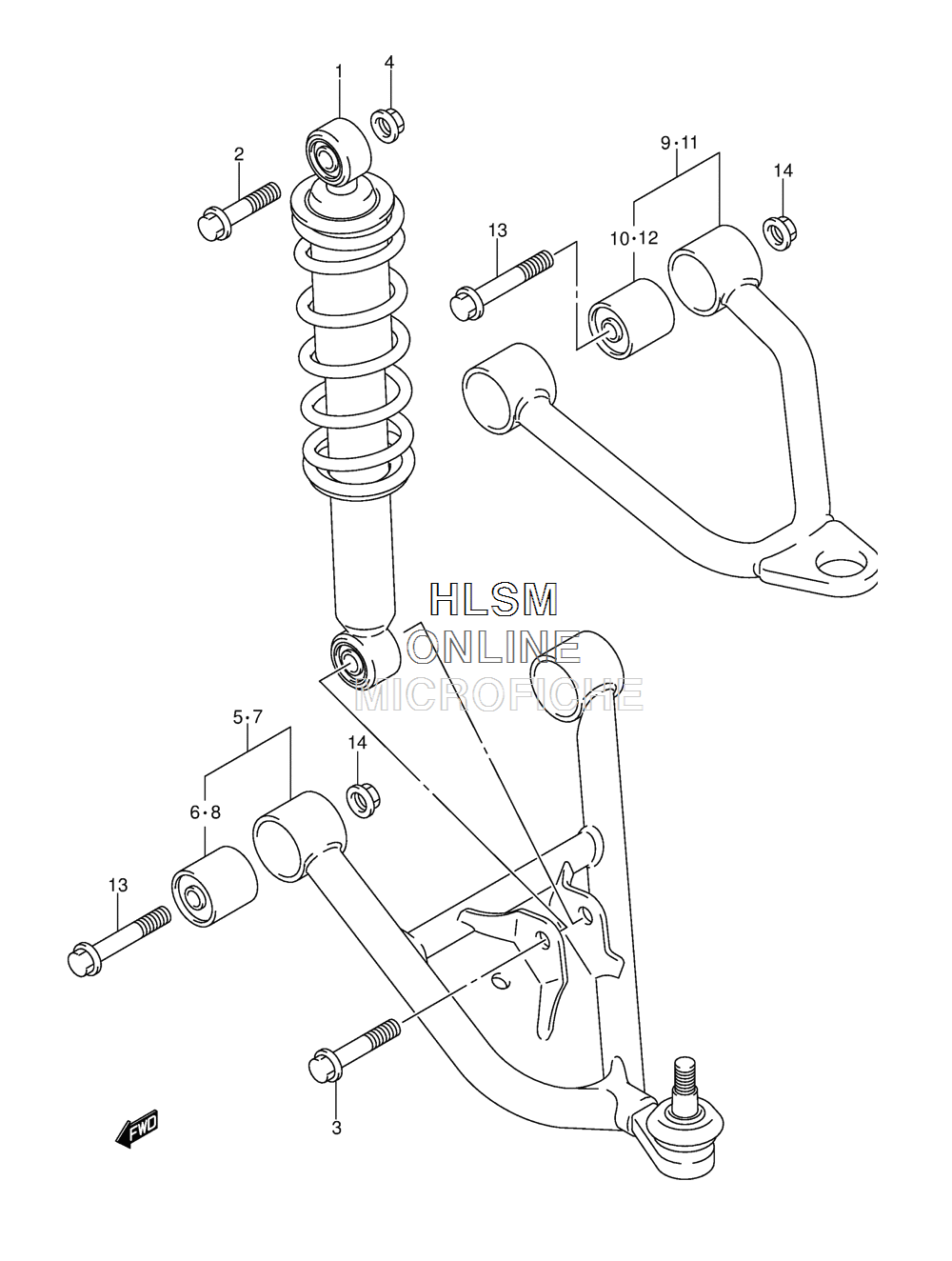

SUSPENSION - FRONT ARM W/ SHOCK для Suzuki LT-F250 Ozark 250 - 2014 года выпуска
-
№АртикулНазвание
-
152100-05G10-019 ABSORBER ASSY, FRONT SHOCK (BLACK)ABSORBER ASSY, FRONT SHOCK (BLACK)
-
209103-10019 BOLT (10X37)BOLT (10X37)
-
309103-10126 BOLT (10X48)BOLT (10X48)
-
409159-10115 NUTNUT
-
552410-05831 ARM SET, SUSPENSION LOWER RIGHT HANDARM SET, SUSPENSION LOWER RIGHT HAND
-
609319-10055 BUSHBUSH
-
752420-05831 ARM SET, SUSPENSION LOWER LEFT HANDARM SET, SUSPENSION LOWER LEFT HAND
-
809319-10055 BUSHBUSH
-
952430-05811 ARM SET, SUSPENSION UPPER RIGHT HANDARM SET, SUSPENSION UPPER RIGHT HAND
-
1009319-10055 BUSHBUSH
-
1152440-05811 ARM SET, SUSPENSION UPPER LEFT HANDARM SET, SUSPENSION UPPER LEFT HAND
-
1209319-10055 BUSHBUSH
-
1309103-10301 BOLT (10X60)BOLT (10X60)
-
1409159-10115 NUTNUT
