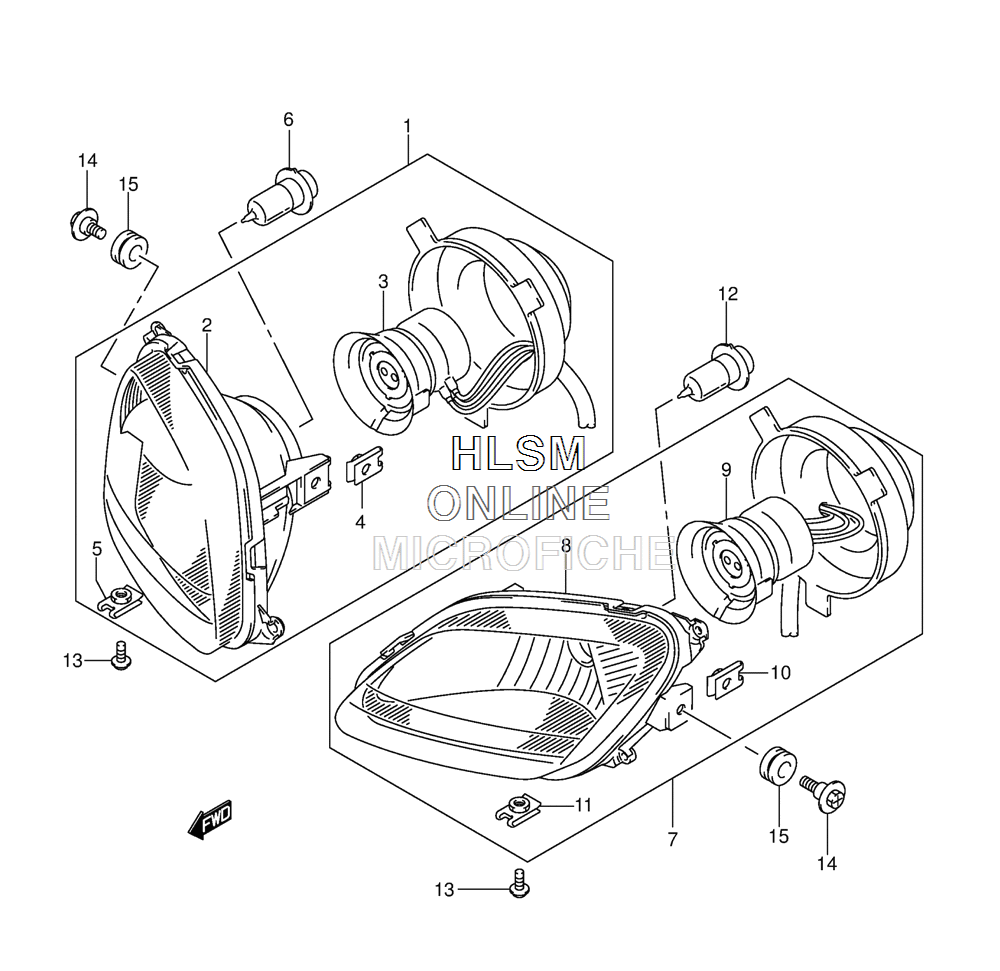

HEADLAMP для Suzuki LT-F250 Ozark 250 - 2014 года выпуска
-
№АртикулНазвание
-
135100-05G00-999 HEADLAMP ASSY, RIGHT HANDHEADLAMP ASSY, RIGHT HAND
-
235121-03G00 UNIT, RIGHT HANDUNIT, RIGHT HAND
-
335171-05GR0 CORD ASSY, RIGHT HANDCORD ASSY, RIGHT HAND
-
435157-05G90 NUT (M6)NUT (M6)
-
535157-05G50 NUT (M5)NUT (M5)
-
609471-12097 BULB (14V,30/30W)BULB (14V,30/30W)
-
735300-05G00-999 HEADLAMP ASSY, LEFT HANDHEADLAMP ASSY, LEFT HAND
-
835321-03G00 UNIT, LEFT HANDUNIT, LEFT HAND
-
935171-05GL0 CORD ASSY, LEFT HANDCORD ASSY, LEFT HAND
-
1035157-05G90 NUT (M6)NUT (M6)
-
1135157-05G50 NUT (M5)NUT (M5)
-
1209471-12097 BULB (14V,30/30W)BULB (14V,30/30W)
-
1309136-05046 SCREW (5X16)SCREW (5X16)
-
1409139-06118 SCREW (6X22.5)SCREW (6X22.5)
-
1509320-10501 CUSHIONCUSHION
