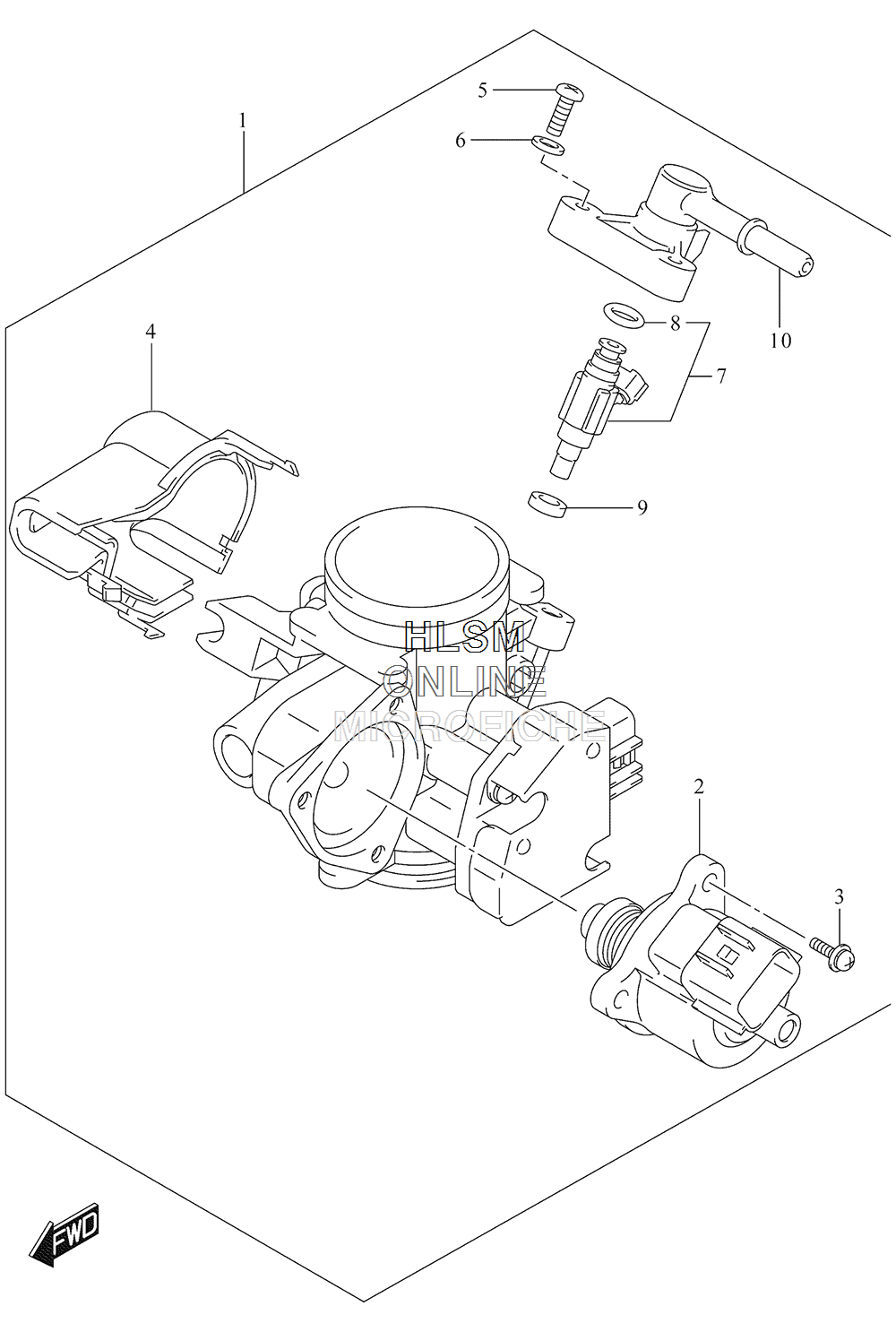

CARBURETOR - THROTTLE BODY для Suzuki LTA500XZL5 King Quad 500 AXi - 2015 года выпуска
-
№АртикулНазвание
-
113400-31H10 BODY ASSY, THROTTLEBODY ASSY, THROTTLE
-
213520-31G00 .MOTOR, ISC STEPPING.MOTOR, ISC STEPPING
-
313601-13G00 .SCREW.SCREW
-
413578-31G00 .COVER.COVER
-
513601-11J00 .SCREW.SCREW
-
613602-29G00 .PACKING.PACKING
-
715710-31G10 .INJECTOR ASSY, FUEL.INJECTOR ASSY, FUEL
-
815717-31G00 ..O RING..O RING
-
915722-29G00 .SEAL.SEAL
-
1015731-31G10 .DELIVERY PIPE.DELIVERY PIPE
