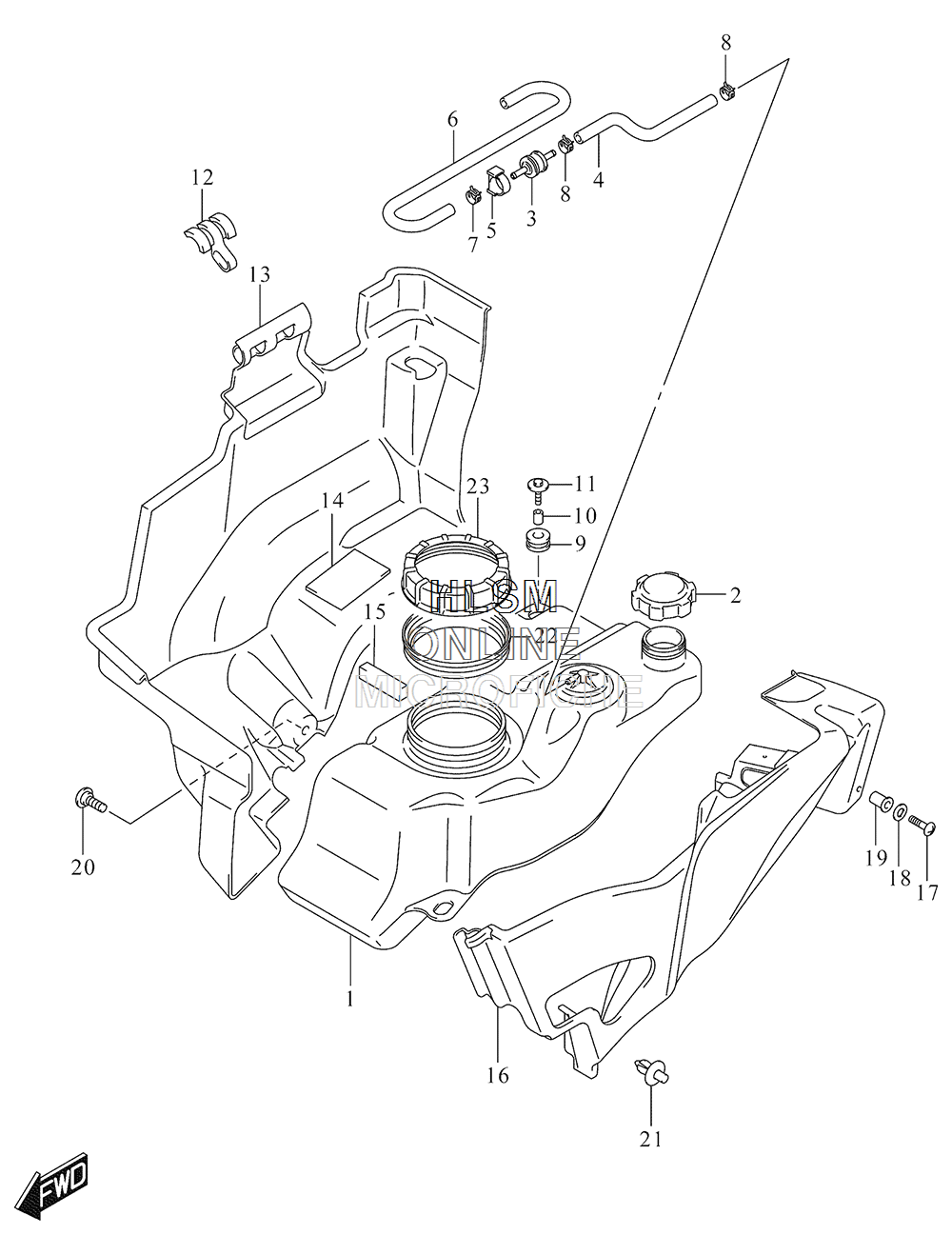

FUEL TANK для Suzuki LTA500XZL5 King Quad 500 AXi - 2015 года выпуска
-
№АртикулНазвание
-
144100-31G20 TANK ASSY, FUELTANK ASSY, FUEL
-
244200-31G00 CAP ASSY, FUEL TANKCAP ASSY, FUEL TANK
-
385451-75100 VALVE, CHECKVALVE, CHECK
-
444425-31G00 HOSE, CHECK VALVEHOSE, CHECK VALVE
-
544881-31G00 CUSHION, CHECK VALVECUSHION, CHECK VALVE
-
644434-31G10 HOSE, TANK BREATHERHOSE, TANK BREATHER
-
709401-08409 CLIPCLIP
-
809401-09403 CLIPCLIP
-
944281-03G00 CUSHION, REARCUSHION, REAR
-
1009180-06293 SPACER (6.5X10X14)SPACER (6.5X10X14)
-
1109116-06050 BOLT (6X30)BOLT (6X30)
-
1244541-31G00 CUSHION, SIDECUSHION, SIDE
-
1344390-31G00 COVER, FUEL TANK LOWERCOVER, FUEL TANK LOWER
-
1444542-10G00 CUSHION, COVER NO.1CUSHION, COVER NO.1
-
1553146-05G00 CUSHION, COVER NO.2CUSHION, COVER NO.2
-
1644391-31G00 COVER, OUTERCOVER, OUTER
-
1702142-0520B SCREWSCREW
-
1809160-05046 WASHER (5.5X20X1.4)WASHER (5.5X20X1.4)
-
1909159-05019 NUTNUT
-
2009139-06137 SCREW (6X16)SCREW (6X16)
-
2109409-07333 CLIPCLIP
-
2244596-26J00 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
2344597-26J00 RETAINER, FUEL PUMPRETAINER, FUEL PUMP
