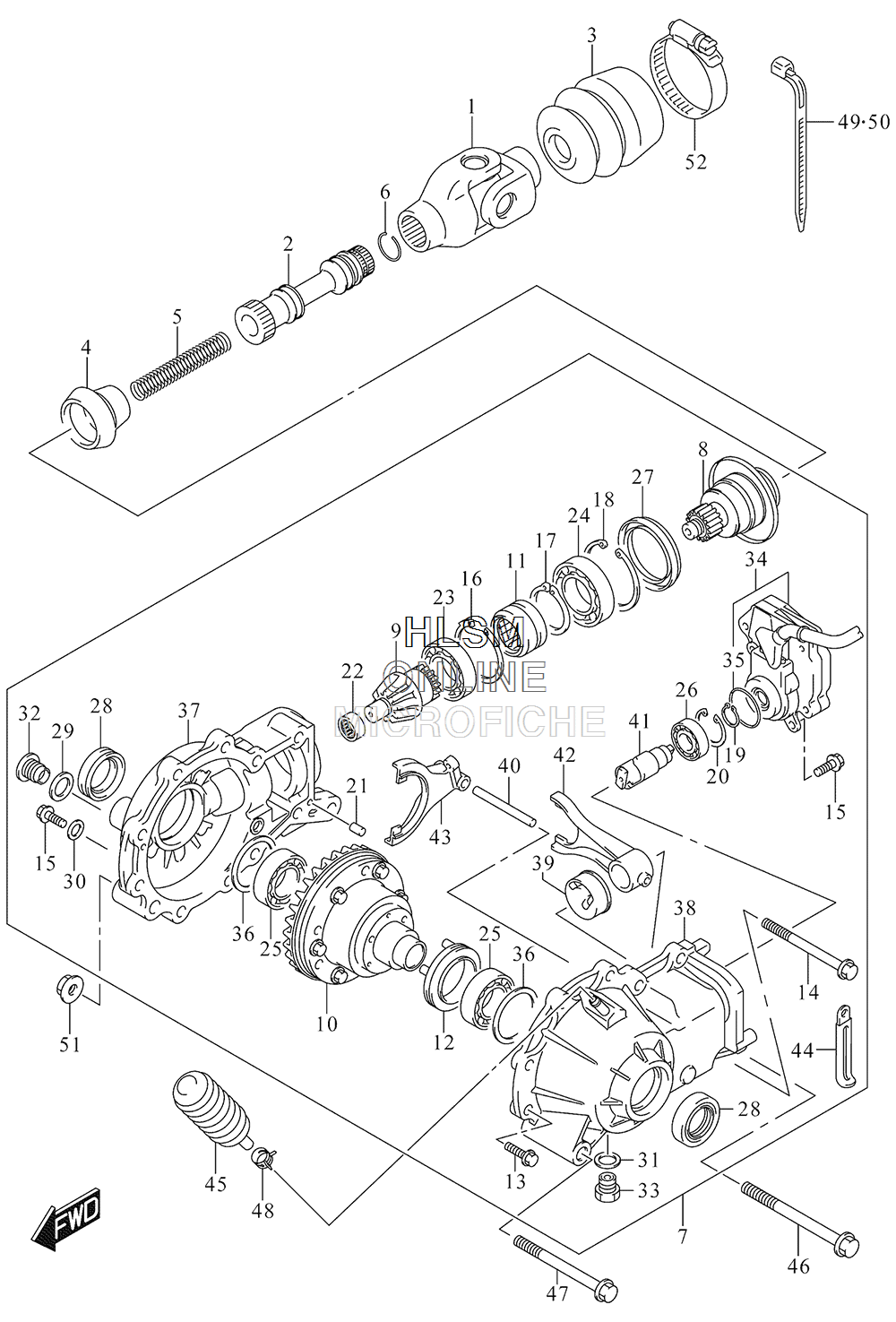

FINAL BEVEL GEAR - FRONT для Suzuki LTA500XZL5 King Quad 500 AXi - 2015 года выпуска
-
№АртикулНазвание
-
127100-31G00 YOKE, FR PROP SHAFTYOKE, FR PROP SHAFT
-
227151-31G30 SHAFT, PROPELLERSHAFT, PROPELLER
-
327153-31G21 BOOT, FRONT PROP SHAFTBOOT, FRONT PROP SHAFT
-
427153-31G30 BOOT, FRONT PROP SHAFTBOOT, FRONT PROP SHAFT
-
527191-31G00 SPRING, FR PROPELLERSPRING, FR PROPELLER
-
609381-20004 SNAP RINGSNAP RING
-
727400-31H01 CASE ASSY, FR DIFFERENTIALCASE ASSY, FR DIFFERENTIAL
-
827130-31HA0 .SHAFT ASSY, INPUT.SHAFT ASSY, INPUT
-
927311-31HA0 .PINION, DRIVE.PINION, DRIVE
-
1027320-31HA0 .GEAR RING ASSY.GEAR RING ASSY
-
1127371-31HA0 .SLEEVE.SLEEVE
-
1227381-31HA0 .SLEEVE DIFF LOCK.SLEEVE DIFF LOCK
-
1327401-31HA0 .FLANGE BOLT, HEX HEAD.FLANGE BOLT, HEX HEAD
-
1427401-31HB0 .FLANGE BOLT, HEX HEAD.FLANGE BOLT, HEX HEAD
-
1527401-31HC0 .FLANGE BOLT, HEX HEAD.FLANGE BOLT, HEX HEAD
-
1627403-31HA0 .SNAP RING.SNAP RING
-
1727403-31HB0 .SNAP RING.SNAP RING
-
1827403-31HC0 .SNAP RING.SNAP RING
-
1927403-31HD0 .RING SNAP.RING SNAP
-
2027403-31HE0 .RING SNAP.RING SNAP
-
2127404-31HA0 .PIN.PIN
-
2227405-31HA0 .BEARING, PINION.BEARING, PINION
-
2327405-31HB0 .BEARING.BEARING
-
2427405-31HC0 .BEARING.BEARING
-
2527405-31HD0 .BEARING.BEARING
-
2627405-31HE0 .BEARING.BEARING
-
2727406-31HA0 .OIL SEAL.OIL SEAL
-
2827406-31HB0 .OIL SEAL.OIL SEAL
-
2927407-31HA0 .WASHER.WASHER
-
3027407-31HB0 .WASHER.WASHER
-
3127407-31HC0 .WASHER.WASHER
-
3227409-31HA0 .PLUG.PLUG
-
3327409-31HB0 .PLUG.PLUG
-
3427421-31HA1 .CASE MOTOR.CASE MOTOR
-
3527406-31HC0 ..O RING..O RING
-
3627445-31HA0 .SHIM SET.SHIM SET
-
3727451-31HA0 .CASE, FR DIFFERENTIAL.CASE, FR DIFFERENTIAL
-
3827460-31HA0 .COVER, BUSH, FR DIFFERENTIAL.COVER, BUSH, FR DIFFERENTIAL
-
3927911-31HA0 .CAM DIFFLOCK.CAM DIFFLOCK
-
4027913-31HA0 .SHAFT, DIFFLOCK FORK.SHAFT, DIFFLOCK FORK
-
4127921-31HA0 .SHAFT, SCREW.SHAFT, SCREW
-
4227940-31HA0 .FORK, FRONT DIFFERENTIAL.FORK, FRONT DIFFERENTIAL
-
4327950-31HA0 .FORK, DIFFLOCK.FORK, DIFFLOCK
-
4409404-08418 .CLAMP (L:65).CLAMP (L:65)
-
4527491-38F00 CASE, BREATHERCASE, BREATHER
-
4609103-10061 BOLT (10X90)BOLT (10X90)
-
4709103-10148 BOLT (10X110)BOLT (10X110)
-
4809401-08411 CLIPCLIP
-
4909407-14403 CLAMP (L:125)CLAMP (L:125)
-
5009407-14403 CLAMP (L:125)CLAMP (L:125)
-
5109159-10115 NUTNUT
-
5209402-80501 CLAMPCLAMP
