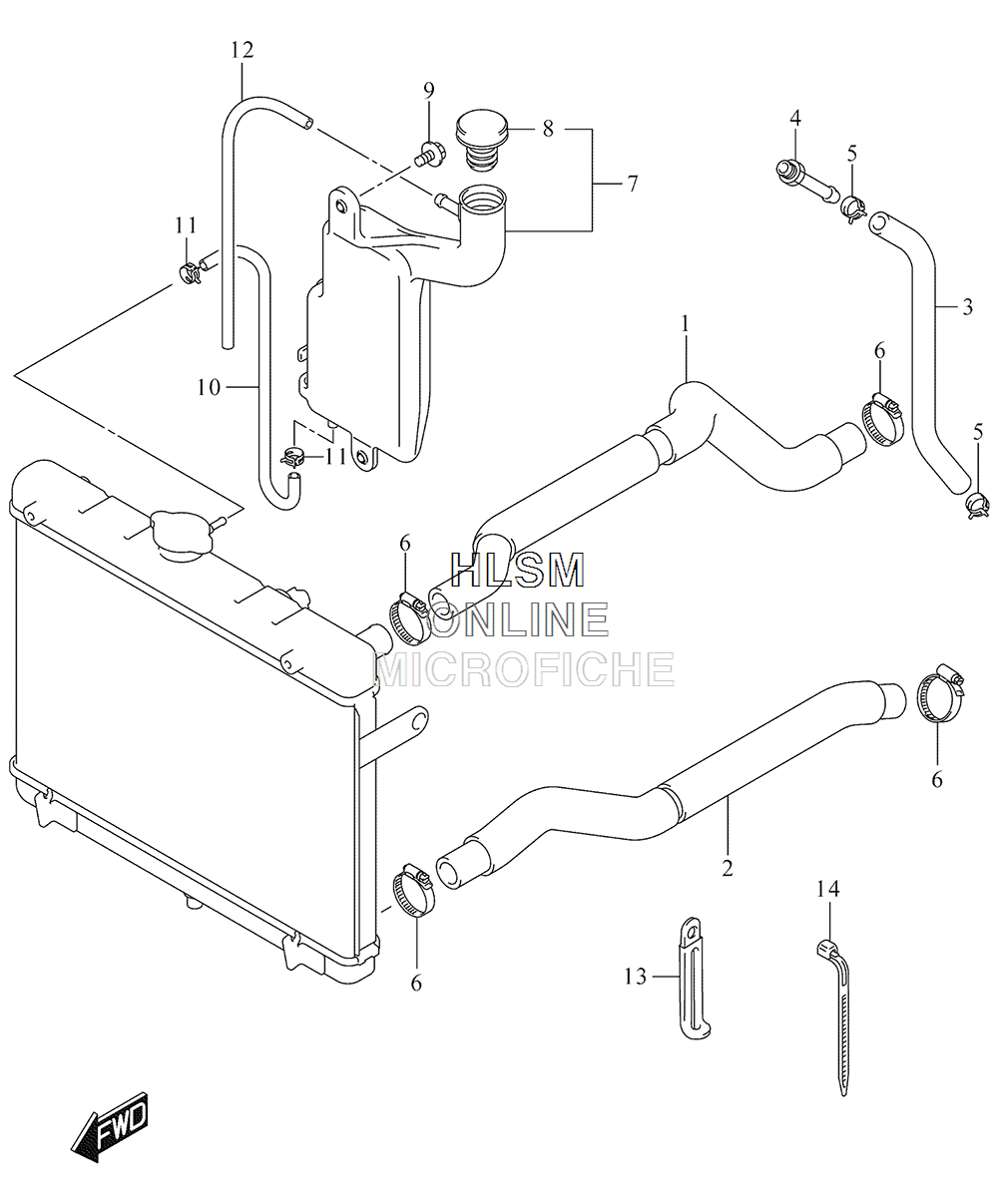

RADIATOR HOSE W/ RESERVOIR для Suzuki LTA500XZL5 King Quad 500 AXi - 2015 года выпуска
-
№АртикулНазвание
-
117851-31G00 HOSE, RADIATOR INLETHOSE, RADIATOR INLET
-
217852-31G00 HOSE, RADIATOR OUTLETHOSE, RADIATOR OUTLET
-
317854-11H00 HOSE, WATER BYPASSHOSE, WATER BYPASS
-
409362-09011 UNIONUNION
-
509401-12414 CLAMPCLAMP
-
609402-32512 CLAMPCLAMP
-
717911-31G01 TANK ASSY, RESERVOIRTANK ASSY, RESERVOIR
-
817931-02FA0 CAPCAP
-
909116-06165 BOLT (6X16)BOLT (6X16)
-
1017900-44810 HOSE, RSVR TANK INLET (L:600->450)HOSE, RSVR TANK INLET (L:600->450)
-
1109401-08411 CLIPCLIP
-
1209352-50901-600 HOSE (5X9X600) (L:600->360)HOSE (5X9X600) (L:600->360)
-
1309404-06429 CLAMP (L:45)CLAMP (L:45)
-
1409407-19401 CLAMP (L:190)CLAMP (L:190)
