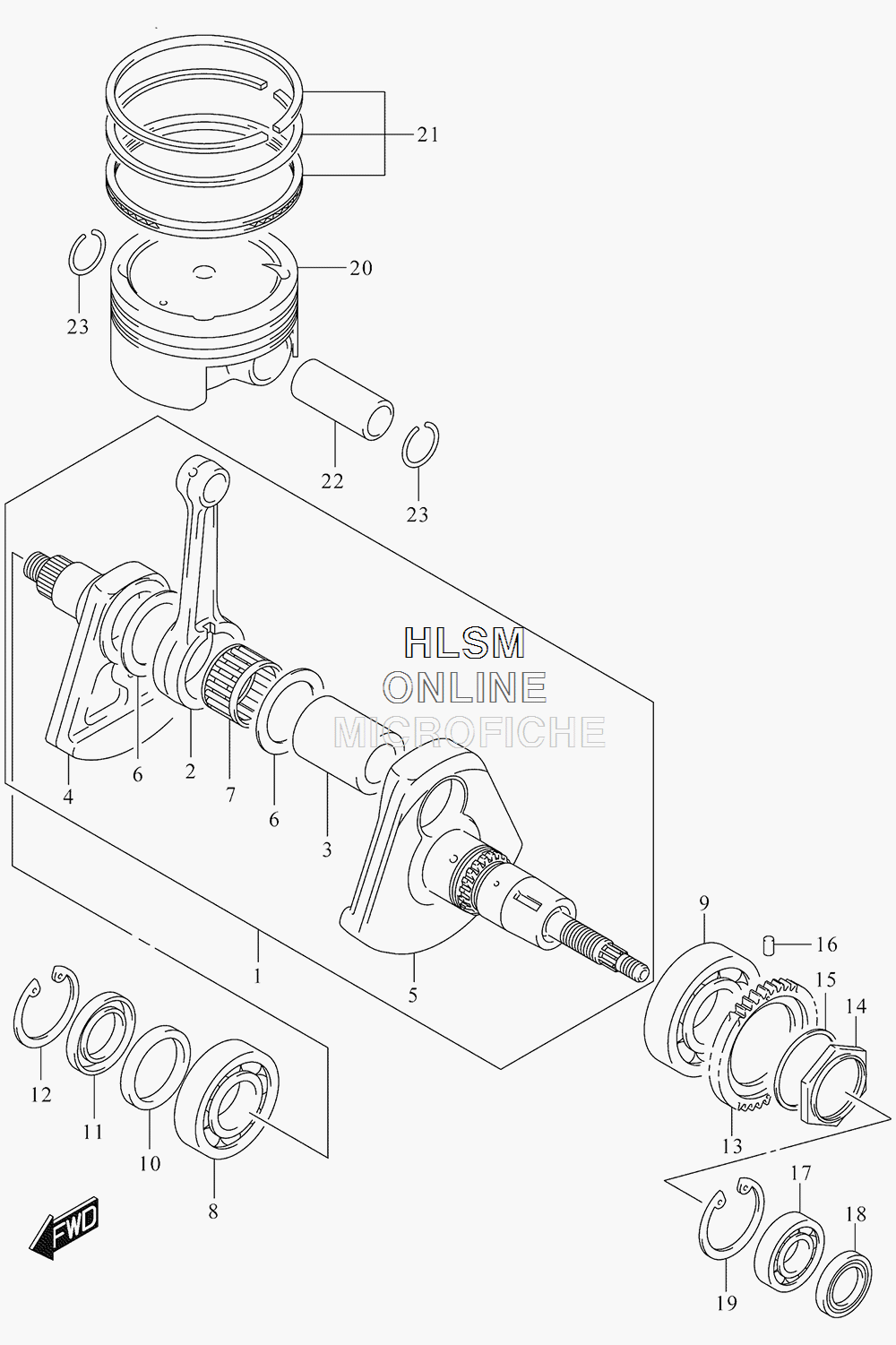

CRANKSHAFT W/ PISTON для Suzuki LTA500XZL5 King Quad 500 AXi - 2015 года выпуска
-
№АртикулНазвание
-
112200-11H00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
212161-11H00 .CONNROD.CONNROD
-
312210-11H00 .PIN, CRANK.PIN, CRANK
-
412220-11H00 .CRANKSHAFT RIGHT HAND.CRANKSHAFT RIGHT HAND
-
512261-11H00 .CRANKSHAFT LEFT HAND.CRANKSHAFT LEFT HAND
-
609160-35005 .WASHER (35X55X1).WASHER (35X55X1)
-
709263-35043 .BEARING (35X44X25).BEARING (35X44X25)
-
809262-40008 BEARING (40X80X18)BEARING (40X80X18)
-
909262-45007 BEARING (45X85X19)BEARING (45X85X19)
-
1009282-34003 OIL SEAL (34X49X6)OIL SEAL (34X49X6)
-
1109282-34001 OIL SEAL (34X52X6)OIL SEAL (34X52X6)
-
1208331-41529 CIRCLIPCIRCLIP
-
1312661-31G01 GEAR, CRANK BALANCER DRIVE (NT:43)GEAR, CRANK BALANCER DRIVE (NT:43)
-
1412664-31G00 NUT, CRANK BALANCER DRIVE GEARNUT, CRANK BALANCER DRIVE GEAR
-
1509160-45006 WASHER (45X60X1.2)WASHER (45X60X1.2)
-
1609261-05005 PIN (5X8)PIN (5X8)
-
1709262-25006 BEARING (25X47X8)BEARING (25X47X8)
-
1809283-25095 OIL SEAL (25X42X6)OIL SEAL (25X42X6)
-
1908331-41479 CIRCLIPCIRCLIP
-
2012111-31H10-0F0 PISTONPISTON
-
2112140-03G20 RING SET, PISTONRING SET, PISTON
-
2212151-24A00 PIN, PISTONPIN, PISTON
-
2309381-20004 SNAP RINGSNAP RING
