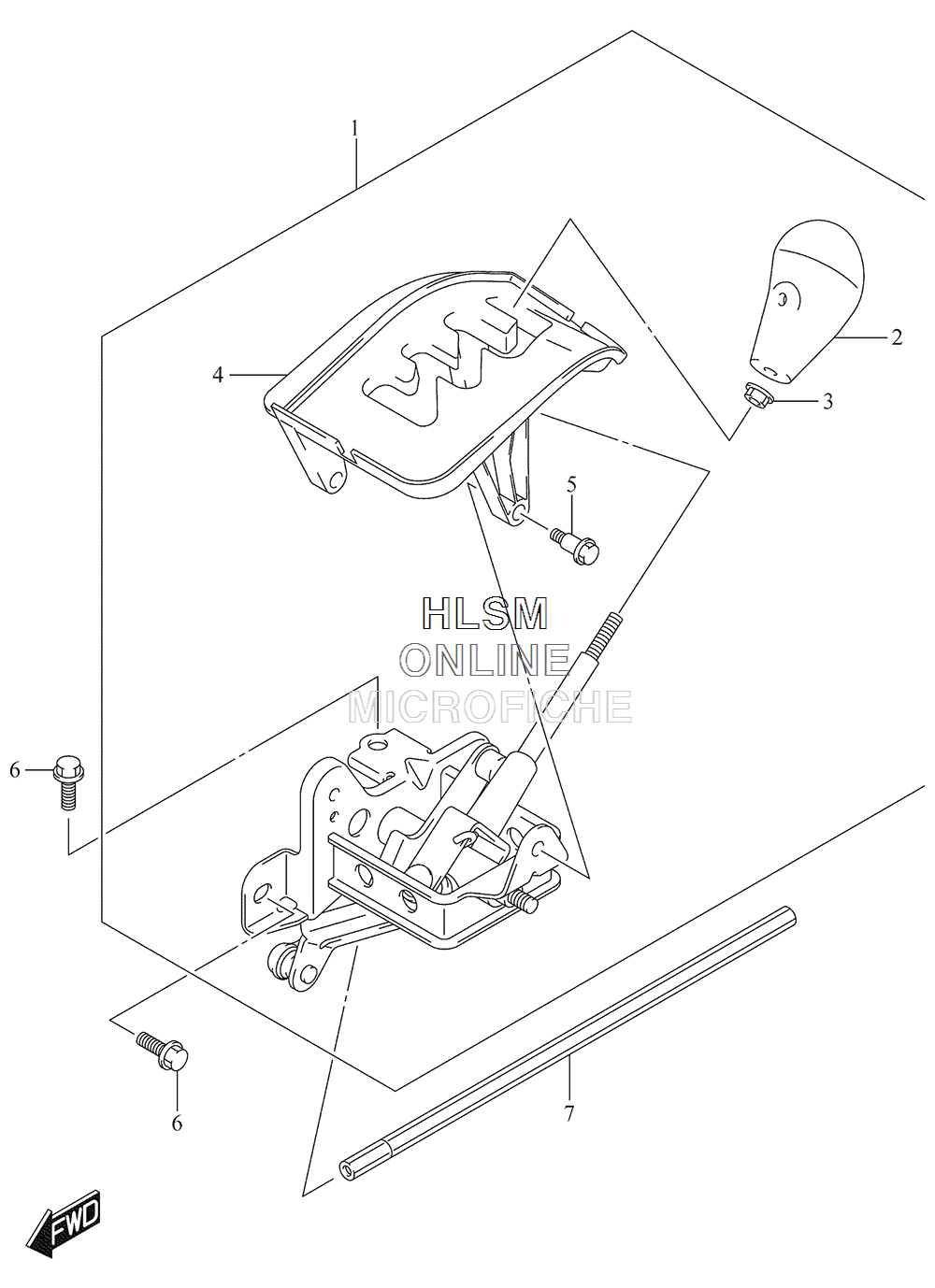

SHIFT LEVER для Suzuki LTA500XZL5 King Quad 500 AXi - 2015 года выпуска
-
№АртикулНазвание
-
157800-31G11 LEVER ASSY, TRANSMISSIONLEVER ASSY, TRANSMISSION
-
257830-27H00 .KNOB, T/M LEVER.KNOB, T/M LEVER
-
308316-1008B .NUT.NUT
-
457940-31G10 .COVER, T/M LEVER.COVER, T/M LEVER
-
509111-06243 .BOLT (6X20).BOLT (6X20)
-
601550-0816A BOLTBOLT
-
757911-31H00 ROD, LEVERROD, LEVER
