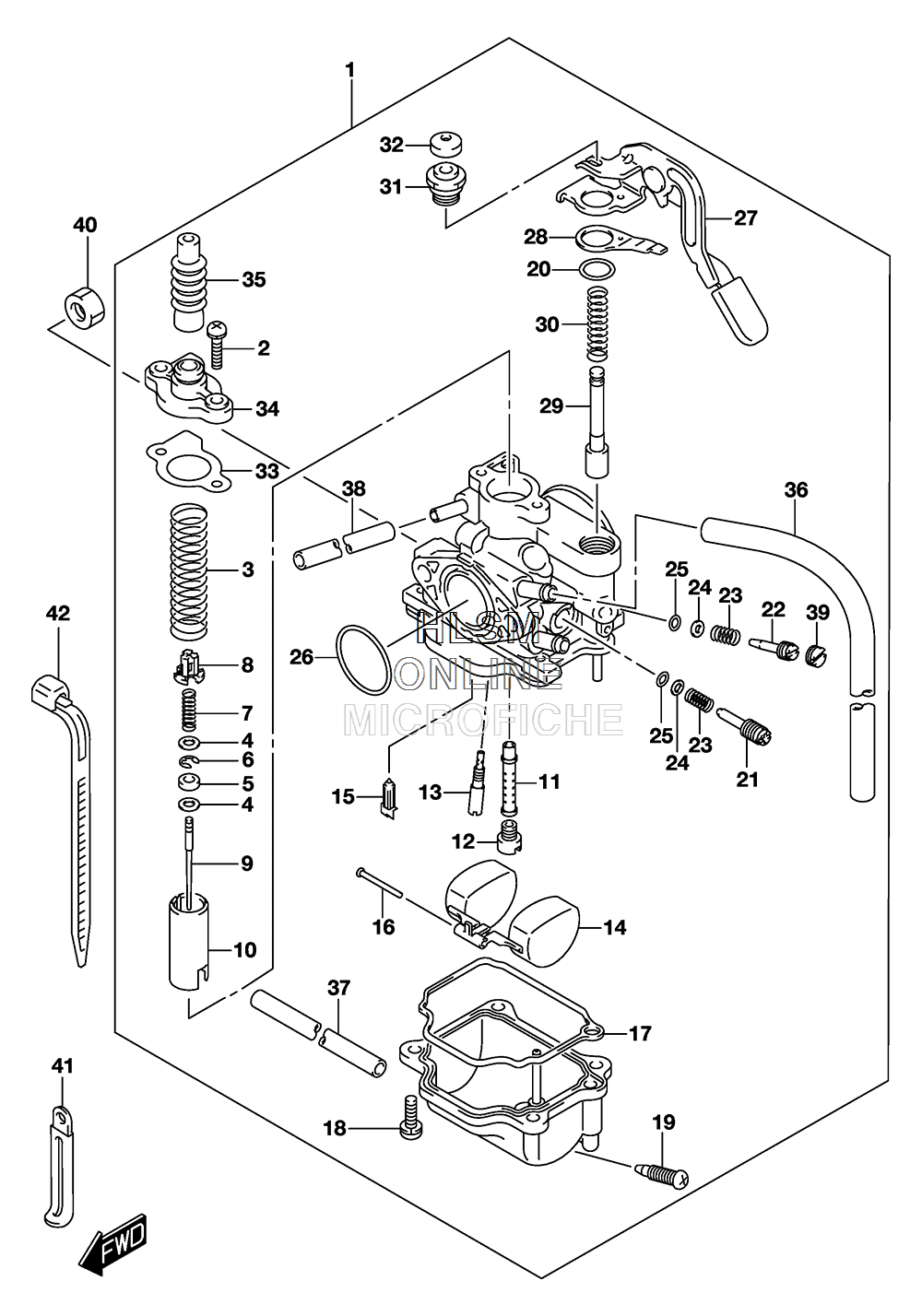

CARBURETOR для Suzuki QUADSPORT Z90 [LT-Z90] - 2017 года выпуска
-
№АртикулНазвание
-
113200-08H00 CARBURETORCARBURETOR
-
202112-3412B ...SCREW...SCREW
-
313573-08H00 ...SPRING...SPRING
-
413382-23F00 ...WASHER...WASHER
-
513387-23F00 ...RING...RING
-
613533-98410 ...E RING...E RING
-
713481-23F00 ...SPRING...SPRING
-
813418-12F40 ...HOLDER...HOLDER
-
913383-08H00 ...NEEDLE, JET...NEEDLE, JET
-
1013511-08H00 ...PISTON VALVE...PISTON VALVE
-
1113341-08H00 ...JET, NEEDLE...JET, NEEDLE
-
1209491-80011 ...JET, MAIN (80)...JET, MAIN (80)
-
1309492-17012 ...JET, PILOT (17.5)...JET, PILOT (17.5)
-
1413250-06410 ...FLOAT ASSY...FLOAT ASSY
-
1513370-09D00 ...NEEDLE ASSY...NEEDLE ASSY
-
1613254-29C50 ...PIN...PIN
-
1713258-30A00 ...O RING...O RING
-
1813601-04148 ...SCREW...SCREW
-
1913247-13A00 ...SCREW...SCREW
-
2013278-47090 ...O RING...O RING
-
2113267-47A00 ...ADJUSTER...ADJUSTER
-
2213269-08H00 ...ADJUSTER...ADJUSTER
-
2313494-09410 ...SPRING...SPRING
-
2413291-29900 ...WASHER...WASHER
-
2513295-29900 ...O RING...O RING
-
2609280-24006 ...O RING...O RING
-
2713420-08H00 ...LEVER ASSY...LEVER ASSY
-
2813421-08H00 ...PLATE...PLATE
-
2913411-08H00 ...PLUNGER...PLUNGER
-
3013417-43G00 ...SPRING...SPRING
-
3113418-08H00 ...HOLDER...HOLDER
-
3213416-46710 ...CAP...CAP
-
3313249-30A10 ...GASKET...GASKET
-
3413261-09G20 ...TOP CAP...TOP CAP
-
3513681-36GA0 ...CAP...CAP
-
3609352-50901-600 ...HOSE (5X9X600) (L:600->225)...HOSE (5X9X600) (L:600->225)
-
3709355-25705-600 ...HOSE (2.5X7X600) (L:600->250)...HOSE (2.5X7X600) (L:600->250)
-
3813683-08H00 ...HOSE...HOSE
-
3913281-05A00 ...PLUG...PLUG
-
4009140-06023 NUTNUT
-
4109404-06429 CLAMP (L:45)CLAMP (L:45)
-
4209407-14403 CLAMP (L:125)CLAMP (L:125)
