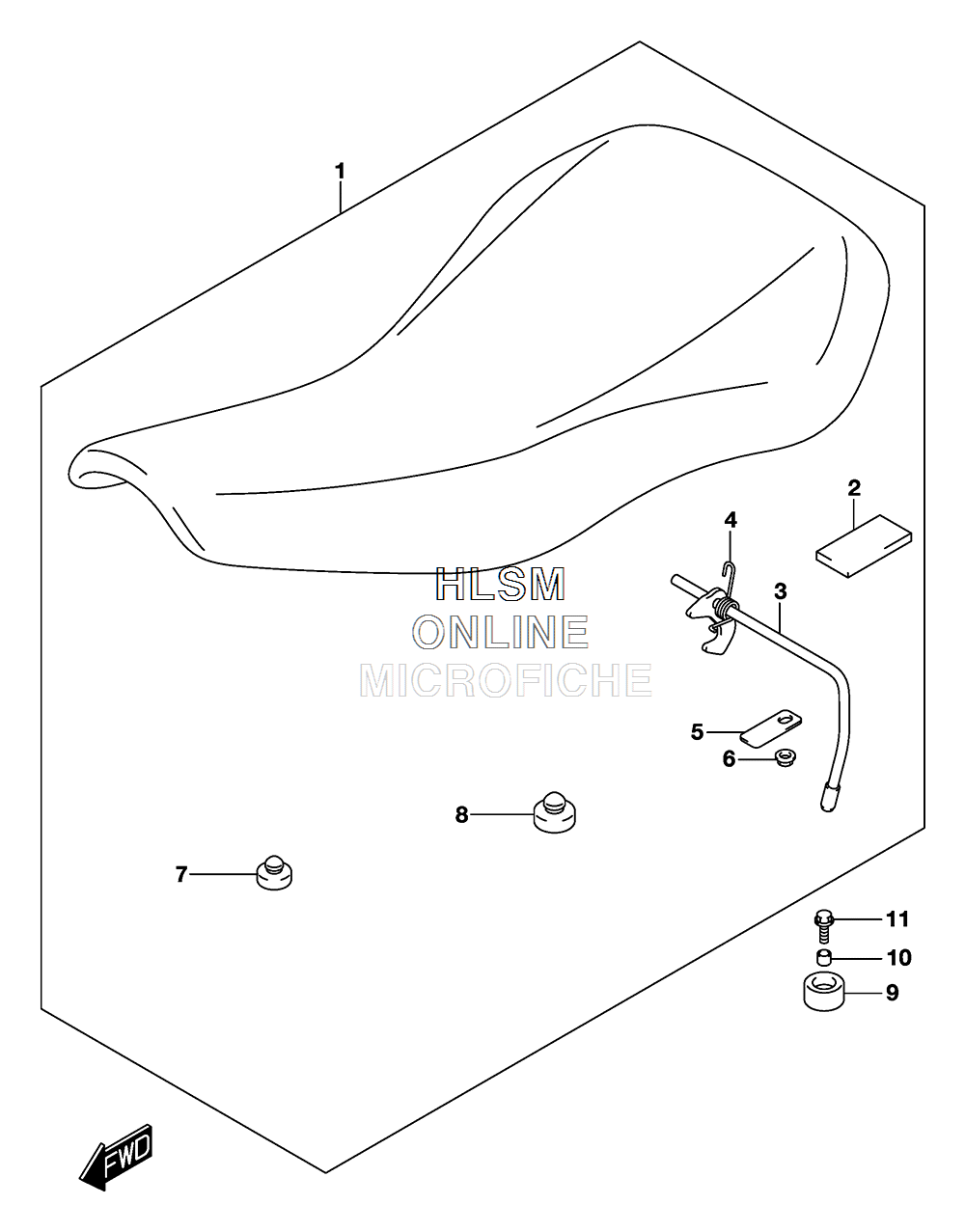

SEAT для Suzuki QUADSPORT Z90 [LT-Z90] - 2017 года выпуска
-
№АртикулНазвание
-
145100-08H00-6BY SEAT ASSY (BLACK)SEAT ASSY (BLACK)
-
245149-08H00 ...CUSHION, SEAT MOUNT BOSS...CUSHION, SEAT MOUNT BOSS
-
345210-08H00 ...CLAMP, SEAT LOCK...CLAMP, SEAT LOCK
-
445135-43F00 ...SPRING, SEAT LOCK...SPRING, SEAT LOCK
-
545222-43G00 ...PLATE, SEAT LOCK RIGHT HAND...PLATE, SEAT LOCK RIGHT HAND
-
608316-1006B ...NUT...NUT
-
709321-10012 ...CUSHION, SEAT MOUNT...CUSHION, SEAT MOUNT
-
845148-08H00 ...CUSHION, SEAT MOUNT...CUSHION, SEAT MOUNT
-
945141-08H00 CUSHIONCUSHION
-
1009180-06261 SPACER (6.5X9X8)SPACER (6.5X9X8)
-
1101550-0616B BOLTBOLT
