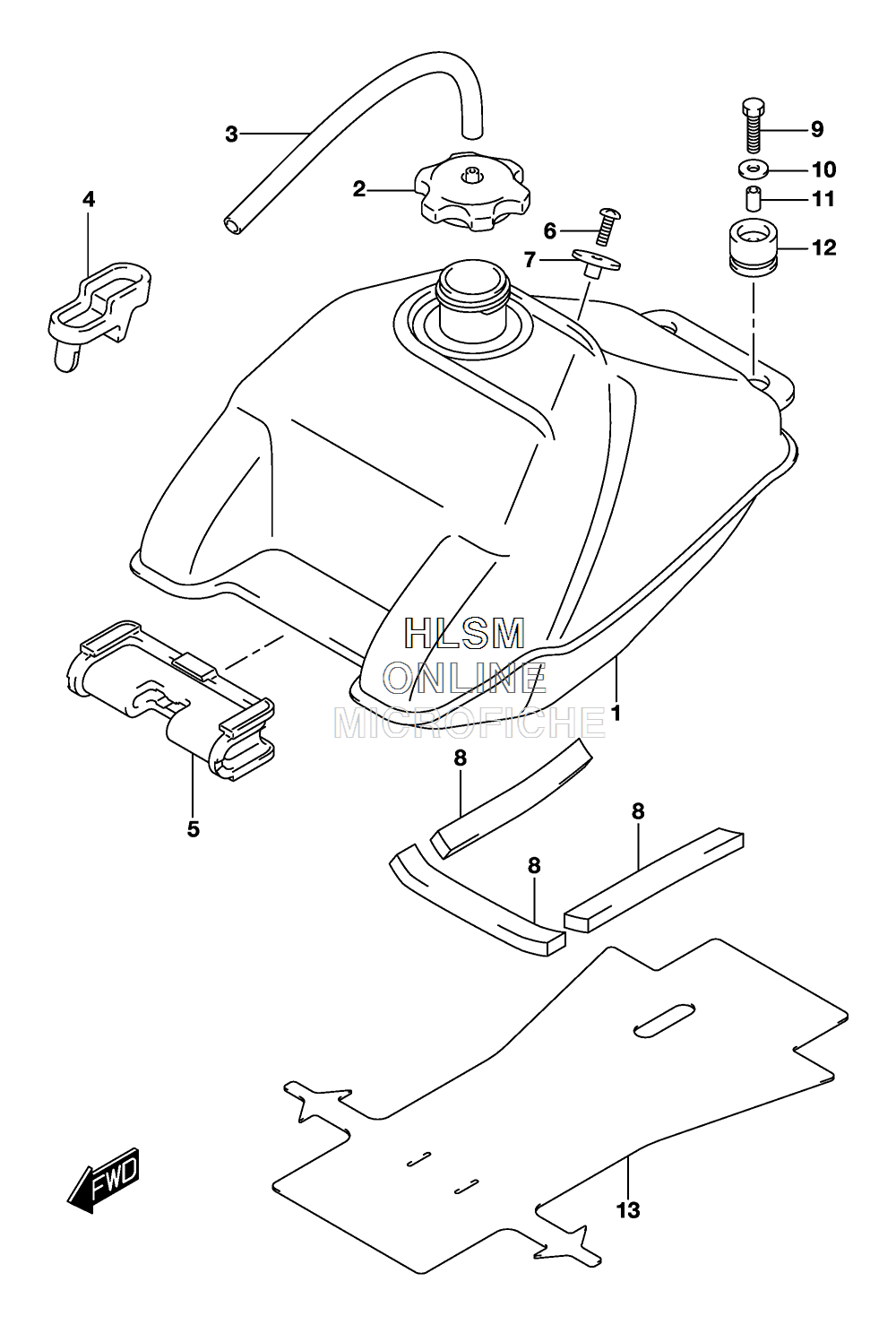

FUEL TANK для Suzuki QUADSPORT Z90 [LT-Z90] - 2017 года выпуска
-
№АртикулНазвание
-
144100-08HA0 TANK ASSY, FUELTANK ASSY, FUEL
-
244200-09AA0 CAP ASSY, FUEL TANKCAP ASSY, FUEL TANK
-
344411-08H00 HOSE, BREATHERHOSE, BREATHER
-
444333-08H00 TRAY, FUEL BREATHER HOSETRAY, FUEL BREATHER HOSE
-
544541-08H00 CUSHION, FRONTCUSHION, FRONT
-
602142-0620A SCREWSCREW
-
744132-27C01 HOOK, SEAT FRONTHOOK, SEAT FRONT
-
844543-08H00 CUSHION, LOWERCUSHION, LOWER
-
901500-0625A BOLT, REARBOLT, REAR
-
1009160-06132 WASHER (6.5X18X1.6)WASHER (6.5X18X1.6)
-
1109180-06267 SPACER (6.5X9X12.5)SPACER (6.5X9X12.5)
-
1244541-43F00 CUSHION, REARCUSHION, REAR
-
1344542-08H00 RUBBER, FUEL TANK LOWERRUBBER, FUEL TANK LOWER
