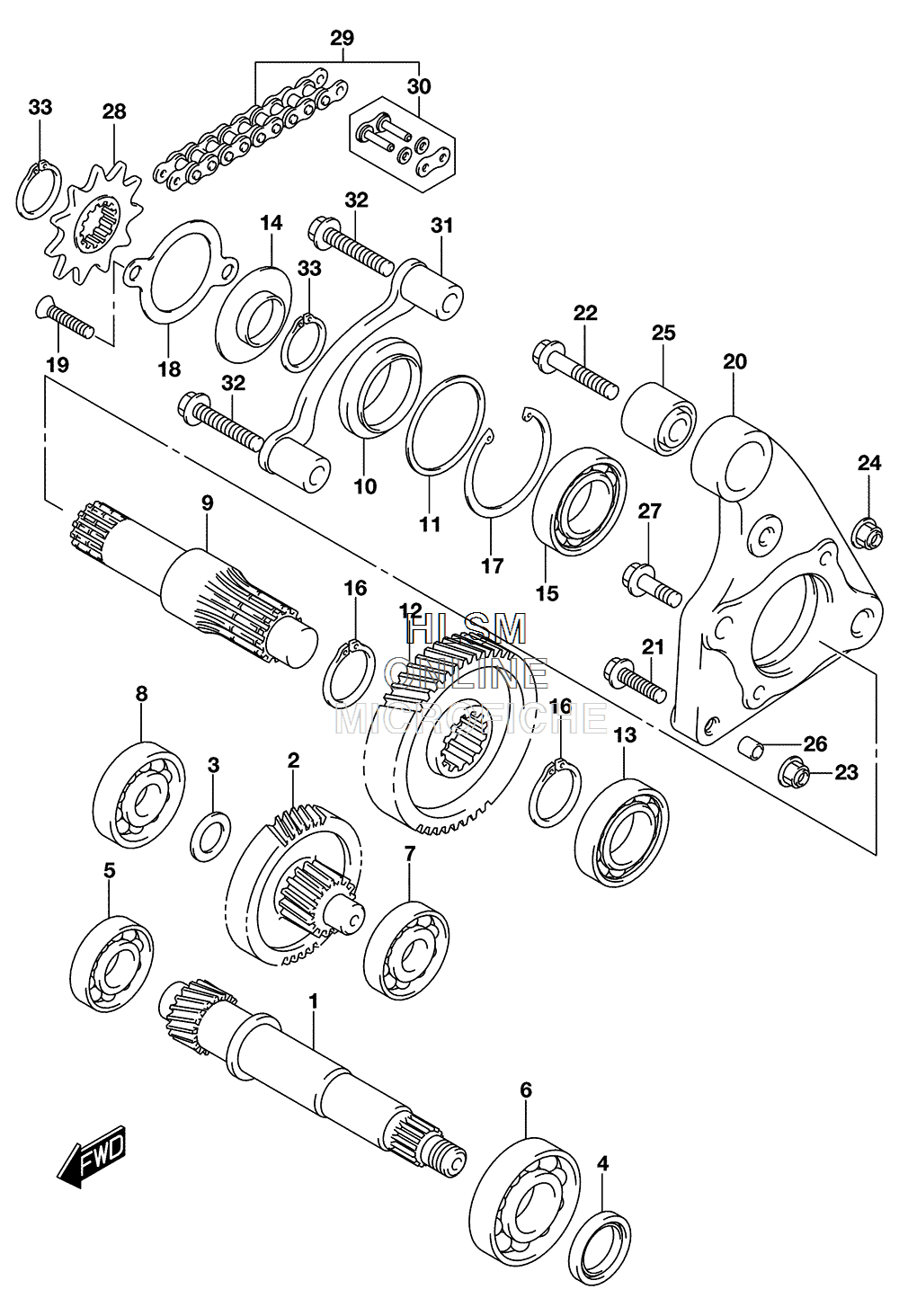

TRANSMISSION (2) для Suzuki QUADSPORT Z90 [LT-Z90] - 2017 года выпуска
-
№АртикулНазвание
-
124131-08H00 SHAFT, DRIVE (NT:17)SHAFT, DRIVE (NT:17)
-
224150-33G00 SHAFT, IDLE (NT:15/45)SHAFT, IDLE (NT:15/45)
-
309181-12167 SHIM (12X20X1.0)SHIM (12X20X1.0)
-
409283-20052 SEAL, OIL (20X28X5)SEAL, OIL (20X28X5)
-
509262-15031 BEARING (15X35X11)BEARING (15X35X11)
-
609262-20069 BEARING (20X47X14)BEARING (20X47X14)
-
709262-12001 BEARING (12X28X8)BEARING (12X28X8)
-
808113-62017 BEARINGBEARING
-
924141-08H00 SHAFT, REAR AXLESHAFT, REAR AXLE
-
1024142-40B00 SEAL, DRIVE SHAFT OIL NO.2SEAL, DRIVE SHAFT OIL NO.2
-
1124143-08H00 WASHER, AXLE SHAFT BEARINGWASHER, AXLE SHAFT BEARING
-
1224371-33G00 GEAR, FINAL DRIVEN (NT:47)GEAR, FINAL DRIVEN (NT:47)
-
1309262-20121 BEARING (20X47X14)BEARING (20X47X14)
-
1409283-20047 SEA OIL (20X47X12)SEA OIL (20X47X12)
-
1508110-62030 BEARING, AXLE SHAFT, LBEARING, AXLE SHAFT, L
-
1608331-31229 CIRCLIPCIRCLIP
-
1708331-4147A CIRCLIPCIRCLIP
-
1824751-08H00 RETAINER, AXLE SHAFTRETAINER, AXLE SHAFT
-
1902122-0630A SCREWSCREW
-
2024145-08H00 HOUSING, REAR AXLE SHAFTHOUSING, REAR AXLE SHAFT
-
2109103-10086 BOLT (10X44)BOLT (10X44)
-
2209103-10218 BOLT (10X45)BOLT (10X45)
-
2309159-10115 NUT (M10X1.25)NUT (M10X1.25)
-
2409159-10115 NUT (M10X1.25)NUT (M10X1.25)
-
2509319-10032 BUSH (10.2X22.3X20)BUSH (10.2X22.3X20)
-
2604211-13149 PIN, REAR AXLE SHAFT BEARINGPIN, REAR AXLE SHAFT BEARING
-
2709103-10395 BOLT (10X30)BOLT (10X30)
-
2827511-08H00 SPROCKET, ENGINE (NT:11)SPROCKET, ENGINE (NT:11)
-
2927600-24F20-060 CHAIN, DRIVE (RK50GSVZ3M)CHAIN, DRIVE (RK50GSVZ3M)
-
3027620-24F20 ...JOINT SET, CHAIN...JOINT SET, CHAIN
-
3127640-08H00 PLATE, FRONT CHAIN GUIDEPLATE, FRONT CHAIN GUIDE
-
3201550-0840B BOLTBOLT
-
3309380-20009 CIRCLIPCIRCLIP
