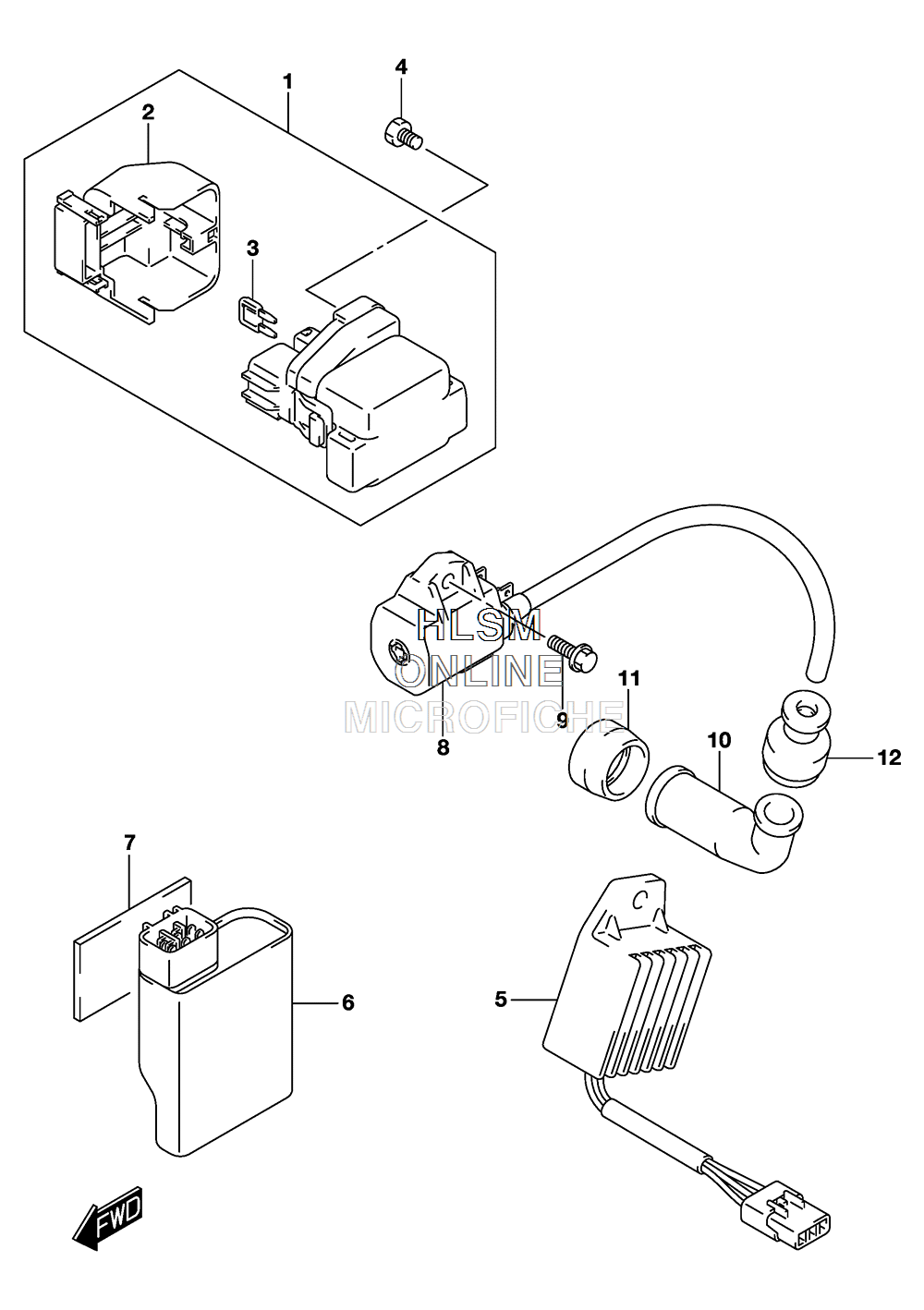

ELECTRICAL для Suzuki QUADSPORT Z90 [LT-Z90] - 2017 года выпуска
-
№АртикулНазвание
-
131800-08H00 RELAY ASSY, STARTING MOTORRELAY ASSY, STARTING MOTOR
-
231861-38G00 ...COVER...COVER
-
309481-10501 ...FUSE (10A)...FUSE (10A)
-
409128-06013 BOLT (6X8)BOLT (6X8)
-
532800-08H01 RECTIFIER ASSYRECTIFIER ASSY
-
632900-08H00 CDI UNITCDI UNIT
-
733652-36000 PROTECTOR, CDI (30X50X3.0)PROTECTOR, CDI (30X50X3.0)
-
833410-36G00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
902162-0620B BOLTBOLT
-
1033510-20E00 CAP ASSY, SPARK PLUGCAP ASSY, SPARK PLUG
-
1133541-47D00 SEAL, SPARK PLUGSEAL, SPARK PLUG
-
1233542-38B00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
