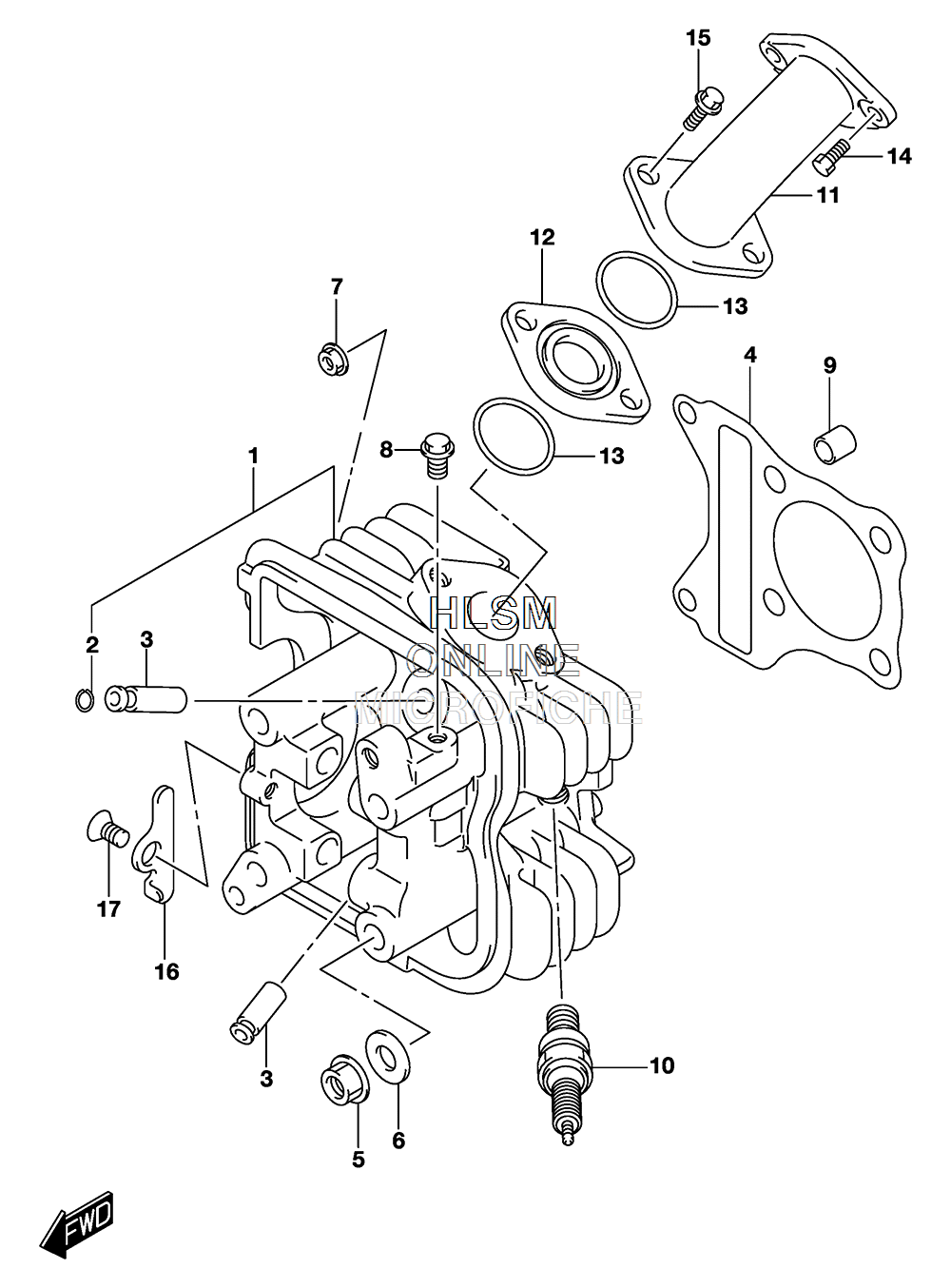

CYLINDER HEAD для Suzuki QUADSPORT Z90 [LT-Z90] - 2017 года выпуска
-
№АртикулНазвание
-
111110-08H00 HEAD, CYLINDERHEAD, CYLINDER
-
209381-10004 ...RING, SNAP...RING, SNAP
-
311115-30D70 GUIDE, VALVE (OS:0.3) (OPT)GUIDE, VALVE (OS:0.3) (OPT)
-
411141-08H00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
508316-1008B NUTNUT
-
609160-08039 WASHER (8.5X19X2.3)WASHER (8.5X19X2.3)
-
708316-1006B NUTNUT
-
801547-0610B BOLTBOLT
-
904211-11129 PINPIN
-
1009482-00406 SPARK PLUG (NGK,CR6HSA)SPARK PLUG (NGK,CR6HSA)
-
1009482-00407 SPARK PLUG (DENSO,U20FSR-U)SPARK PLUG (DENSO,U20FSR-U)
-
1113111-08H00 PIPE, INTAKEPIPE, INTAKE
-
1213117-08H00 INSULATOR, INTAKE PIPEINSULATOR, INTAKE PIPE
-
1309280-25004 O RING (D:2.4,OD:24.7)O RING (D:2.4,OD:24.7)
-
1407120-0616B BOLTBOLT
-
1507120-0620B BOLTBOLT
-
1612862-33G00 RETAINER, CAMSHAFTRETAINER, CAMSHAFT
-
1702122-0612B SCREWSCREW
