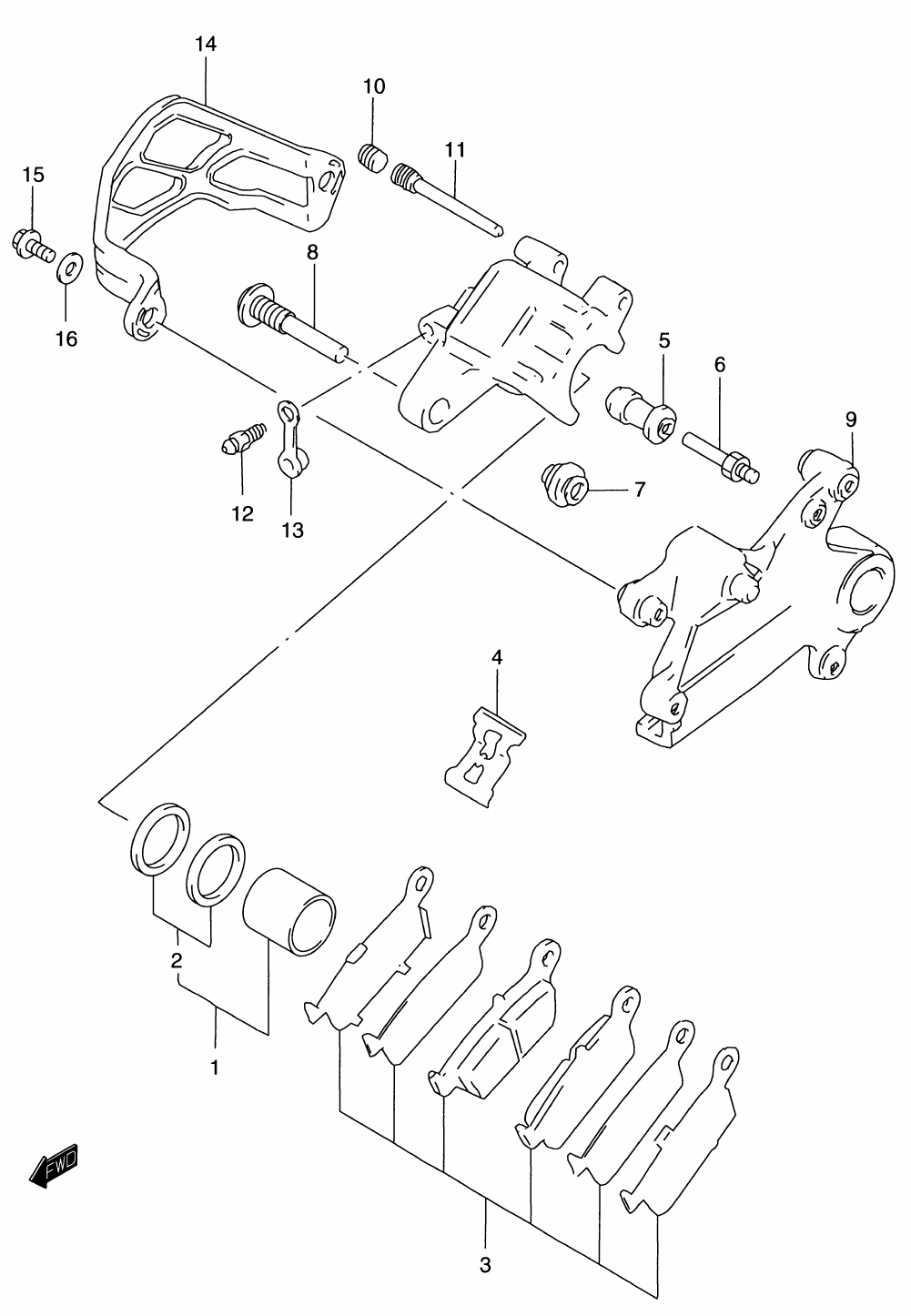

BRAKE - REAR CALIPER ASSY. для Suzuki RM125Y - 2000 года выпуска
-
№АртикулНазвание
-
69100-36E40 CALIPER ASSY (REAR)CALIPER ASSY (REAR)
-
169100-43810 ...PISTON SET...PISTON SET
-
269100-36810 ......SEAL SET, PISTON......SEAL SET, PISTON
-
3-569100-36860 ...PAD SET...PAD SET
-
459315-36E00 ...SPRING...SPRING
-
559386-13A00 ...BOOT...BOOT
-
659382-27C30 ...PIN...PIN
-
759303-14500 ...BOOT...BOOT
-
859305-36E00 ...PIN...PIN
-
9-369350-36E20 ...BRACKET...BRACKET
-
1059146-21E10 ...PLUG, PIN...PLUG, PIN
-
1169345-43D00 ...PIN...PIN
-
1259121-01A00 ...BLEEDER...BLEEDER
-
1359122-01A00 ...CAP...CAP
-
1459371-36SHM ...SHIM PLATE, BRAKE PAD...SHIM PLATE, BRAKE PAD
-
1569725-36E00 GUARD, REAR CALIPERGUARD, REAR CALIPER
-
1601547-06123 BOLTBOLT
-
1708322-01063 WASHERWASHER
