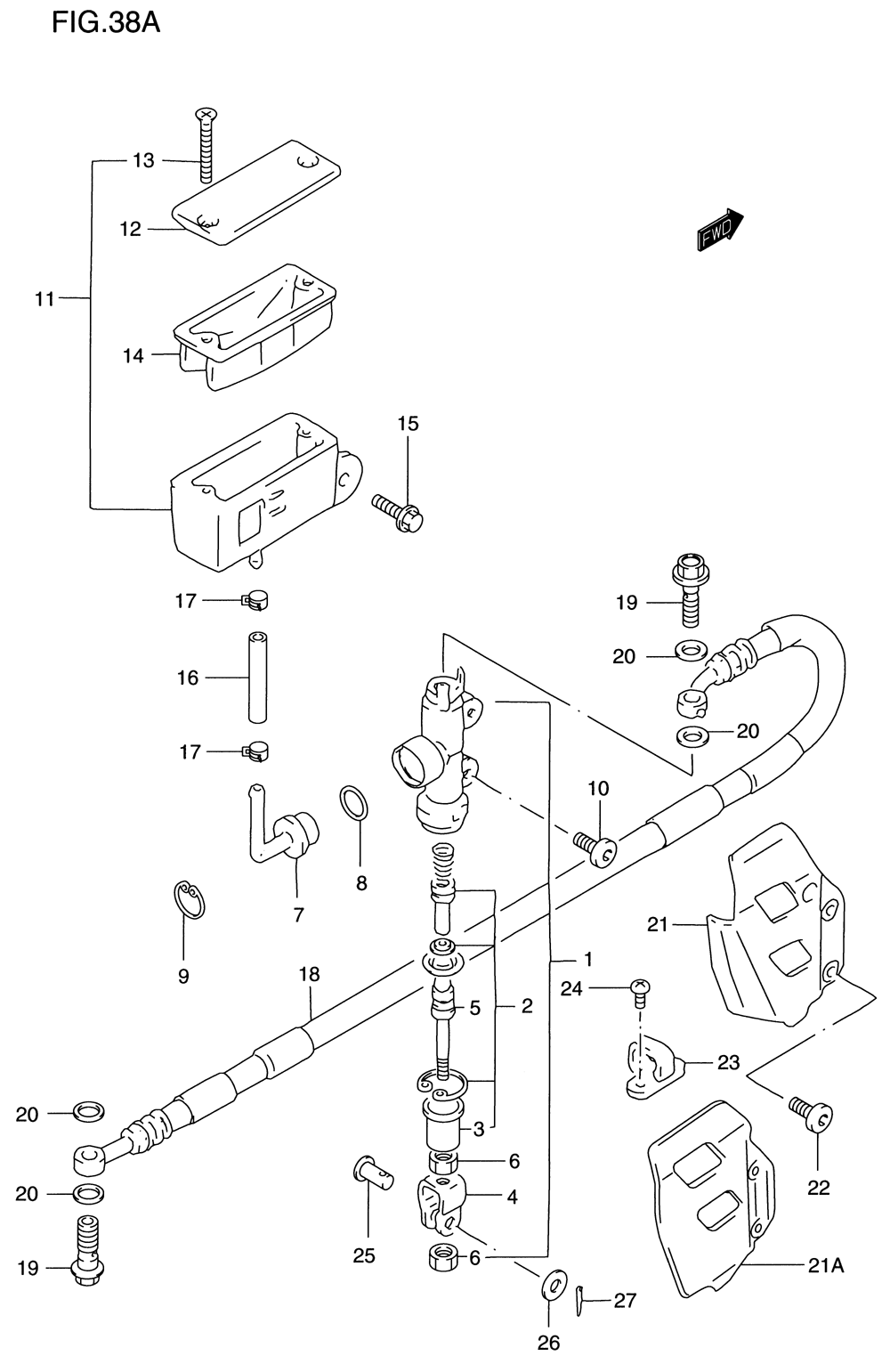

BRAKE - REAR MASTER CYLINDER ASSY. для Suzuki RM125Y - 2000 года выпуска
-
№АртикулНазвание
-
169600-36E00 CYLINDER ASSY, REAR MASTERCYLINDER ASSY, REAR MASTER
-
269600-04820 ...PISTON/CUP SET...PISTON/CUP SET
-
369691-00A00 ......BOOT......BOOT
-
469692-00B21 ...YOKE...YOKE
-
569670-36E00 ...ROD, PUSH...ROD, PUSH
-
669693-05A00 ...NUT...NUT
-
769672-00B20 ...CONNECTOR...CONNECTOR
-
869686-34200 ...O RING...O RING
-
969674-00B20 ...CIRCLIP...CIRCLIP
-
1009139-06067 SCREW (6X16)SCREW (6X16)
-
1169740-36E00 TANK ASSY, RESERVOIRTANK ASSY, RESERVOIR
-
1259669-27C01 ...CAP...CAP
-
1369689-36E00 ...SCREW...SCREW
-
1459667-14500 ...DIAPHRAGM...DIAPHRAGM
-
1501547-06123 BOLTBOLT
-
1659731-42E00 HOSE, RESERVOIR TANK (L:85) (CUT L:70)HOSE, RESERVOIR TANK (L:85) (CUT L:70)
-
1769735-00B20 CLAMPCLAMP
-
1869480-36E00 HOSE, BRAKE (REAR)HOSE, BRAKE (REAR)
-
1909360-10042 BOLT (10X1.25X22)BOLT (10X1.25X22)
-
2009161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
21A43570-36E00 GUARD, MASTER CYLINDER (REAR)GUARD, MASTER CYLINDER (REAR)
-
2209139-06067 BOLT (6X16)BOLT (6X16)
-
23-261196-27C30 GUIDE, HOSEGUIDE, HOSE
-
24-202142-05103 SCREWSCREW
-
2509200-08048 PINPIN
-
26-209160-08119 WASHERWASHER
-
2704111-20158 PIN, COTTERPIN, COTTER
