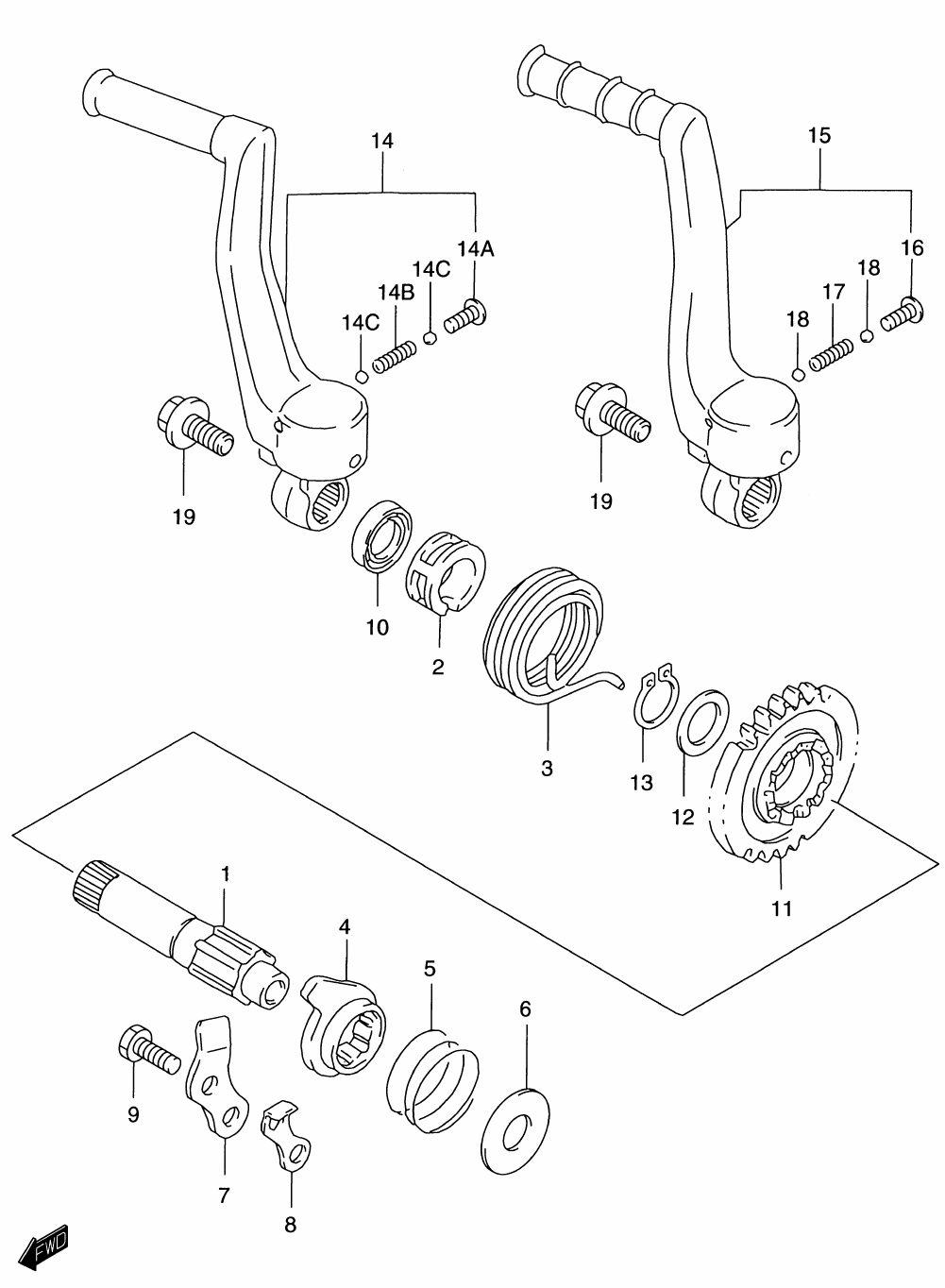

STARTER - KICK для Suzuki RM125Y - 2000 года выпуска
-
№АртикулНазвание
-
1-226211-27C01 SHAFT, KICK STARTERSHAFT, KICK STARTER
-
226221-27C00 GUIDE, SPRINGGUIDE, SPRING
-
309448-45013 SPRINGSPRING
-
4-226231-02B01 STARTER, KICKSTARTER, KICK
-
509440-31002 SPRINGSPRING
-
726232-40200 GUIDE, KICK STARTERGUIDE, KICK STARTER
-
901500-06123 BOLTBOLT
-
1009283-16004 OIL SEAL (15.8X24X5)OIL SEAL (15.8X24X5)
-
11-226241-43D01 GEAR, KICK DRIVE (NT:27)GEAR, KICK DRIVE (NT:27)
-
12-209181-16158 WASHER (16X24X0.50)WASHER (16X24X0.50)
-
1308331-31166 CIRCLIPCIRCLIP
-
14A09127-06016 ...SCREW (6X27.5)...SCREW (6X27.5)
-
14B09440-05031 ...SPRING...SPRING
-
14C06111-07004 ...BALL...BALL
-
1526300-36E10 LEVER, KICK STARTERLEVER, KICK STARTER
-
1609127-06016 ...SCREW (6X27.5)...SCREW (6X27.5)
-
1709440-05031 ...SPRING...SPRING
-
1806111-07004 ...BALL...BALL
-
1909103-08253 BOLT (8X14)BOLT (8X14)
