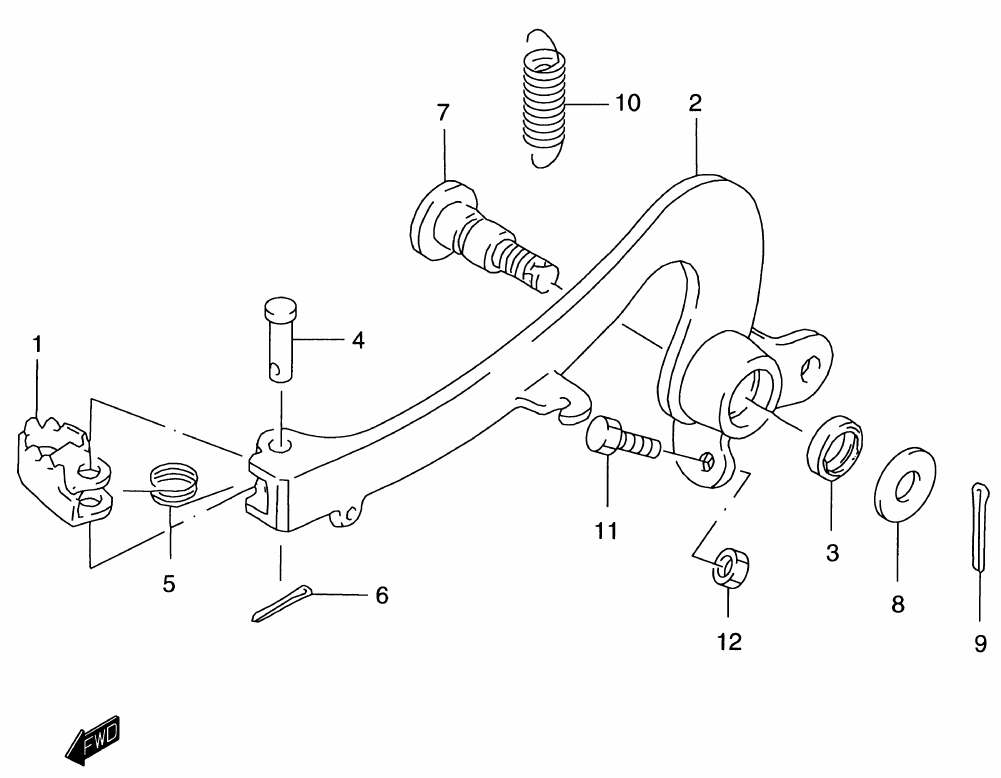

BRAKE - REAR PEDAL для Suzuki RM125Y - 2000 года выпуска
-
№АртикулНазвание
-
143110-43D00 PEDAL, BRAKEPEDAL, BRAKE
-
243120-43D10 ARM, REAR BRAKEARM, REAR BRAKE
-
309284-15006 ...DUST SEAL...DUST SEAL
-
409200-06062 PINPIN
-
509444-11006 SPRINGSPRING
-
604111-20158 COTTER PINCOTTER PIN
-
743142-27C00 SHAFTSHAFT
-
808211-10261 THRUST WASHERTHRUST WASHER
-
904111-20208 COTTER PINCOTTER PIN
-
1009443-11039 SPRINGSPRING
-
1109100-06009 BOLTBOLT
-
1208310-00063 NUTNUT
