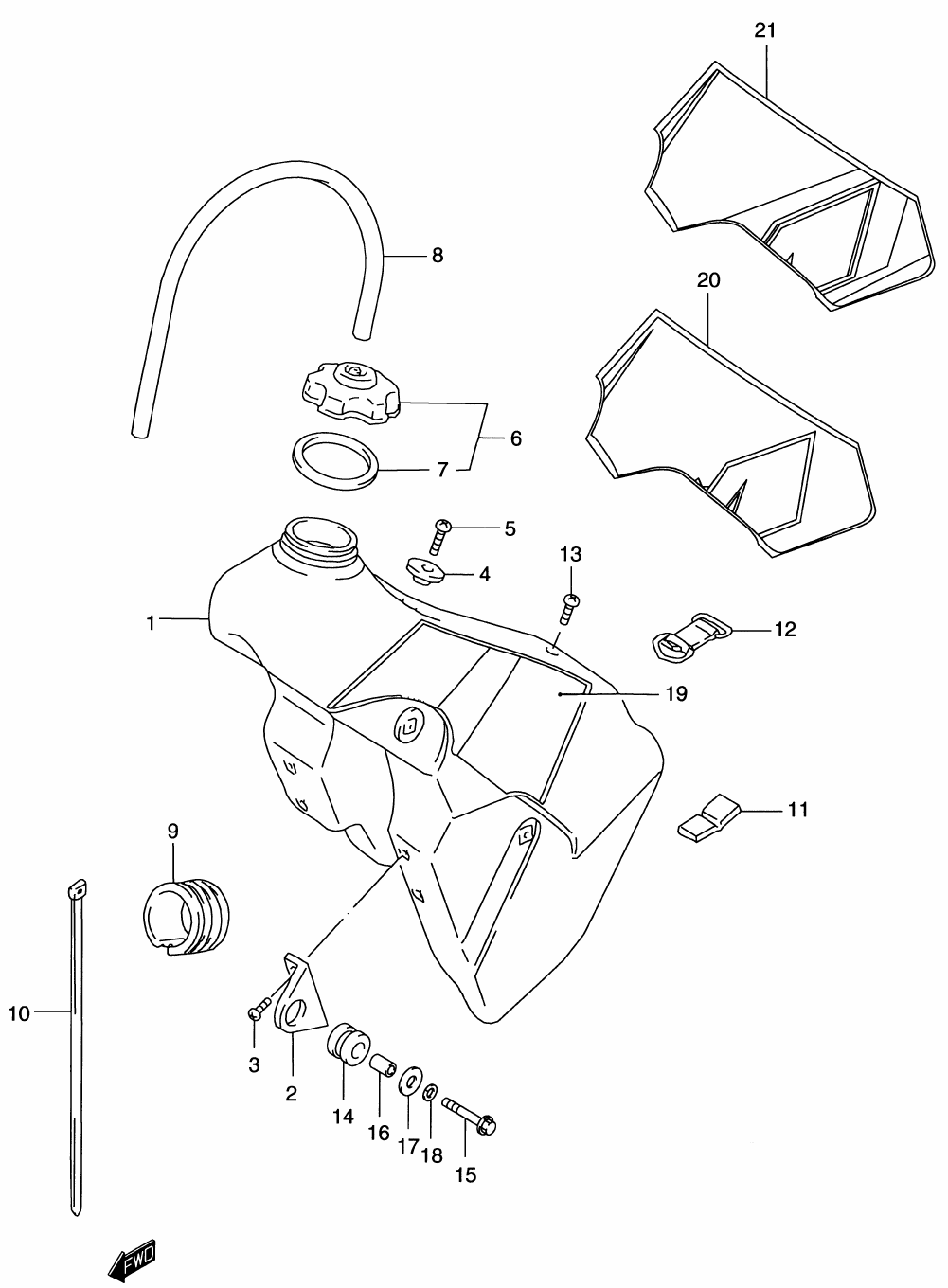

FUEL TANK для Suzuki RM125Y - 2000 года выпуска
-
№АртикулНазвание
-
144110-36E00-25Y TANK, FUEL (YELLOW)TANK, FUEL (YELLOW)
-
244131-27C01 ...BRACKET (FRONT)...BRACKET (FRONT)
-
302112-06123 ...SCREW (FRONT)...SCREW (FRONT)
-
444132-27C01 ...HOOK, SEAT (FRONT)...HOOK, SEAT (FRONT)
-
502142-06203 ...SCREW, HOOK...SCREW, HOOK
-
644200-27870 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
744248-27C00 ...GASKET...GASKET
-
809352-53103-600 HOSE (L:600?380)HOSE (L:600?380)
-
944541-26C00 CUSHIONCUSHION
-
10-109407-30402 CLAMPCLAMP
-
10-209407-14407 CLAMPCLAMP
-
1109321-05006 CUSHION (REAR)CUSHION (REAR)
-
1244560-27C00 BAND (REAR)BAND (REAR)
-
1302142-06163 SCREWSCREW
-
1414762-01B01 CUSHION (FRONT)CUSHION (FRONT)
-
1501547-06303 BOLT (FRONT)BOLT (FRONT)
-
16-209180-06268 SPACERSPACER
-
1709160-06114 WASHERWASHER
-
1808321-01063 LOCK WASHERLOCK WASHER
-
2168110-36E40-N8H TAPE SET, FUEL TANKTAPE SET, FUEL TANK
