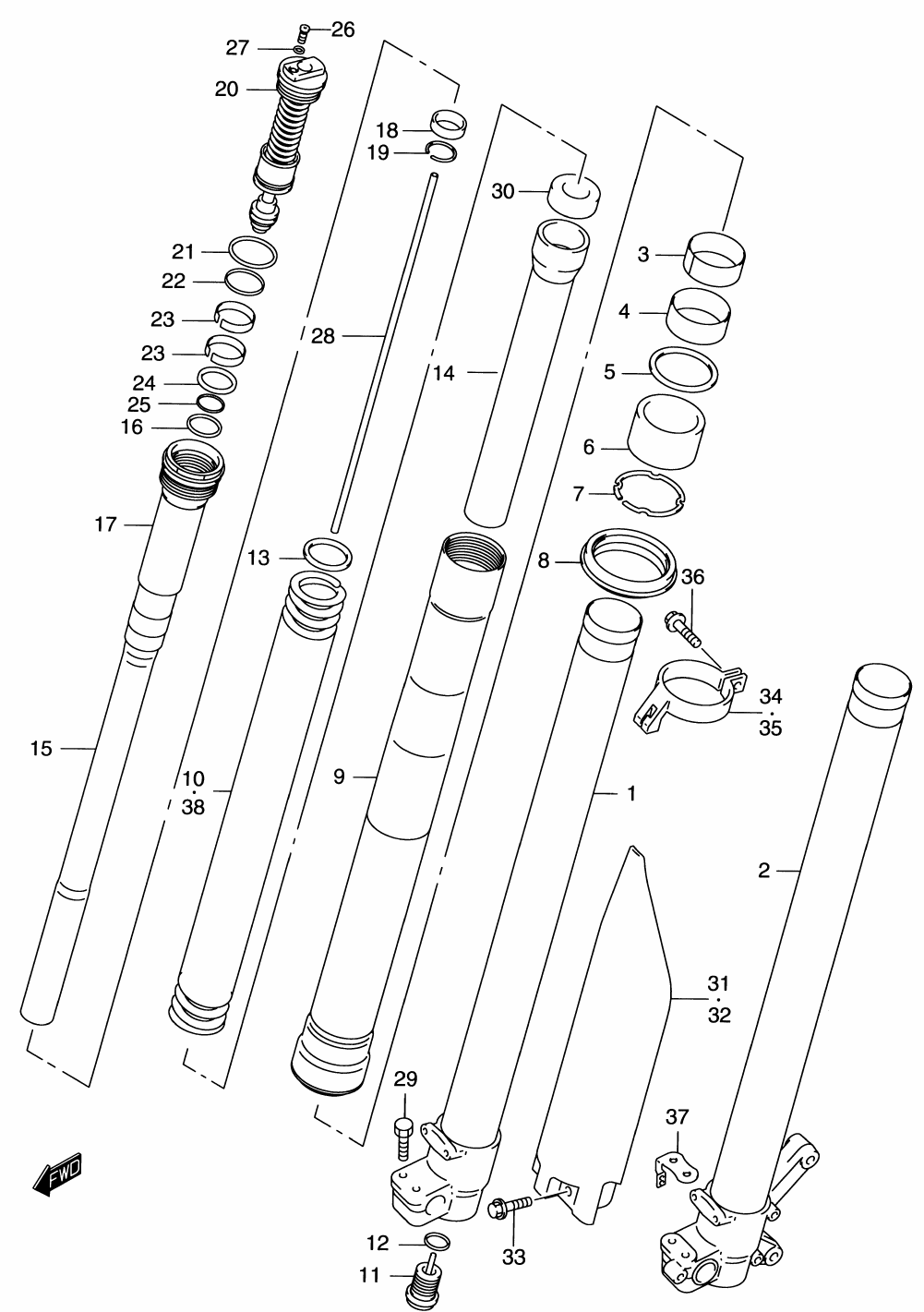

SUSPENSION - FRONT FORK для Suzuki RM125Y - 2000 года выпуска
-
№АртикулНазвание
-
51103-36E80 DAMPER ASSY, FORK (FRONT/RIGHT)DAMPER ASSY, FORK (FRONT/RIGHT)
-
51104-36E80 DAMPER ASSY, FORK (FRONT/LEFT)DAMPER ASSY, FORK (FRONT/LEFT)
-
151110-36E80 ...TUBE (INNER/RIGHT)...TUBE (INNER/RIGHT)
-
251120-36E80 ...TUBE (INNER/LEFT)...TUBE (INNER/LEFT)
-
351121-36E80 ......BUSH, SLIDE......BUSH, SLIDE
-
451167-36E80 ......BUSH, GUIDE......BUSH, GUIDE
-
551158-36E00 ......SPACER, SEAL......SPACER, SEAL
-
651153-36E00 ......SEAL, OIL......SEAL, OIL
-
751156-36E00 ......RING, OIL SEAL STOPPER......RING, OIL SEAL STOPPER
-
851173-36E80 ......SEAL, DUST......SEAL, DUST
-
951130-36E80 ...TUBE (OUTER)...TUBE (OUTER)
-
1051171-37E70 ...SPRING (FRONT) (K=0.42)...SPRING (FRONT) (K=0.42)
-
1151170-36E20 ...BOLT (CENTER)...BOLT (CENTER)
-
1251177-36E20 ......O RING......O RING
-
1351355-36E60 ...STOPPER, SPRING...STOPPER, SPRING
-
1451176-36E80 ...COLLAR, SPRING...COLLAR, SPRING
-
1551190-36E80 ...DAMPER, CARTRIDGE...DAMPER, CARTRIDGE
-
1662131-28E30 ......O RING......O RING
-
1751198-36E60 ......SUB TANK......SUB TANK
-
1851157-36E60 ...VALVE, OIL LOCK...VALVE, OIL LOCK
-
1951154-36E60 ...RING, VALVE STOPPER...RING, VALVE STOPPER
-
2051351-36E80 ...BOLT, FORK...BOLT, FORK
-
2151117-36E60 ......O RING (UPPER)......O RING (UPPER)
-
2251117-36E00 ......O RING, BOLT......O RING, BOLT
-
2351123-28E30 ......BUSH, FORK BOLT SLIDE......BUSH, FORK BOLT SLIDE
-
2451174-36E40 ......O RING (CENTER)......O RING (CENTER)
-
2551175-36E60 ......O RING (LOWER)......O RING (LOWER)
-
2651357-28E30 ......BOLT, PLUG......BOLT, PLUG
-
2751358-28E30 ......O RING, PLUG......O RING, PLUG
-
2851191-36E80 ...ROD, PUSH...ROD, PUSH
-
2951321-27C40 ...BOLT...BOLT
-
3051180-36E80 ...SEAT, SPRING...SEAT, SPRING
-
3151501-36E80 PROTECTOR (RIGHT)PROTECTOR (RIGHT)
-
3251511-36E80 PROTECTOR (LEFT)PROTECTOR (LEFT)
-
3358627-27C40 BOLTBOLT
-
3451220-36E61 GUIDE, PROTECTOR (RIGHT)GUIDE, PROTECTOR (RIGHT)
-
3551210-36E61 GUIDE, PROTECTOR (LEFT)GUIDE, PROTECTOR (LEFT)
-
3601547-06207 BOLT, GUIDE PROTECTORBOLT, GUIDE PROTECTOR
-
3751231-36E60 STOPPER, BRAKE HOSE (LEFT)STOPPER, BRAKE HOSE (LEFT)
-
38-151171-37E50 SPRING (FRONT) (SOFT,K=0.38) (OPT)SPRING (FRONT) (SOFT,K=0.38) (OPT)
-
38-251171-37E60 SPRING (FRONT) (SOFT,K=0.40) (OPT)SPRING (FRONT) (SOFT,K=0.40) (OPT)
-
38-351171-37E80 SPRING, FRONT (HARD,K=0.44) (OPT)SPRING, FRONT (HARD,K=0.44) (OPT)
-
51103-36E80 DAMPER ASSY, FORK (FRONT/RIGHT)DAMPER ASSY, FORK (FRONT/RIGHT)
-
51104-36E80 DAMPER ASSY, FORK (FRONT/LEFT)DAMPER ASSY, FORK (FRONT/LEFT)
-
151110-36E80 ...TUBE (INNER/RIGHT)...TUBE (INNER/RIGHT)
-
251120-36E80 ...TUBE (INNER/LEFT)...TUBE (INNER/LEFT)
-
351121-36E80 ......BUSH, SLIDE......BUSH, SLIDE
-
451167-36E80 ......BUSH, GUIDE......BUSH, GUIDE
-
551158-36E00 ......SPACER, SEAL......SPACER, SEAL
-
651153-36E00 ......SEAL, OIL......SEAL, OIL
-
751156-36E00 ......RING, OIL SEAL STOPPER......RING, OIL SEAL STOPPER
-
851173-36E80 ......SEAL, DUST......SEAL, DUST
-
951130-36E80 ...TUBE (OUTER)...TUBE (OUTER)
-
1051171-37E70 ...SPRING (FRONT) (K=0.42)...SPRING (FRONT) (K=0.42)
-
1151170-36E20 ...BOLT (CENTER)...BOLT (CENTER)
-
1251177-36E20 ......O RING......O RING
-
1351355-36E60 ...STOPPER, SPRING...STOPPER, SPRING
-
1451176-36E80 ...COLLAR, SPRING...COLLAR, SPRING
-
1551190-36E80 ...DAMPER, CARTRIDGE...DAMPER, CARTRIDGE
-
1662131-28E30 ......O RING......O RING
-
1751198-36E60 ......SUB TANK......SUB TANK
-
1851157-36E60 ...VALVE, OIL LOCK...VALVE, OIL LOCK
-
1951154-36E60 ...RING, VALVE STOPPER...RING, VALVE STOPPER
-
2051351-36E80 ...BOLT, FORK...BOLT, FORK
-
2151117-36E60 ......O RING (UPPER)......O RING (UPPER)
-
2251117-36E00 ......O RING, BOLT......O RING, BOLT
-
2351123-28E30 ......BUSH, FORK BOLT SLIDE......BUSH, FORK BOLT SLIDE
-
2451174-36E40 ......O RING (CENTER)......O RING (CENTER)
-
2551175-36E60 ......O RING (LOWER)......O RING (LOWER)
-
2651357-28E30 ......BOLT, PLUG......BOLT, PLUG
-
2751358-28E30 ......O RING, PLUG......O RING, PLUG
-
2851191-36E80 ...ROD, PUSH...ROD, PUSH
-
2951321-27C40 ...BOLT...BOLT
-
3051180-36E80 ...SEAT, SPRING...SEAT, SPRING
-
3151501-36E80 PROTECTOR (RIGHT)PROTECTOR (RIGHT)
-
3251511-36E80 PROTECTOR (LEFT)PROTECTOR (LEFT)
-
3358627-27C40 BOLTBOLT
-
3451220-36E61 GUIDE, PROTECTOR (RIGHT)GUIDE, PROTECTOR (RIGHT)
-
3551210-36E61 GUIDE, PROTECTOR (LEFT)GUIDE, PROTECTOR (LEFT)
-
3601547-06207 BOLT, GUIDE PROTECTORBOLT, GUIDE PROTECTOR
-
3751231-36E60 STOPPER, BRAKE HOSE (LEFT)STOPPER, BRAKE HOSE (LEFT)
-
38-151171-37E50 SPRING (FRONT) (SOFT,K=0.38) (OPT)SPRING (FRONT) (SOFT,K=0.38) (OPT)
-
38-251171-37E60 SPRING (FRONT) (SOFT,K=0.40) (OPT)SPRING (FRONT) (SOFT,K=0.40) (OPT)
-
38-351171-37E80 SPRING, FRONT (HARD,K=0.44) (OPT)SPRING, FRONT (HARD,K=0.44) (OPT)
