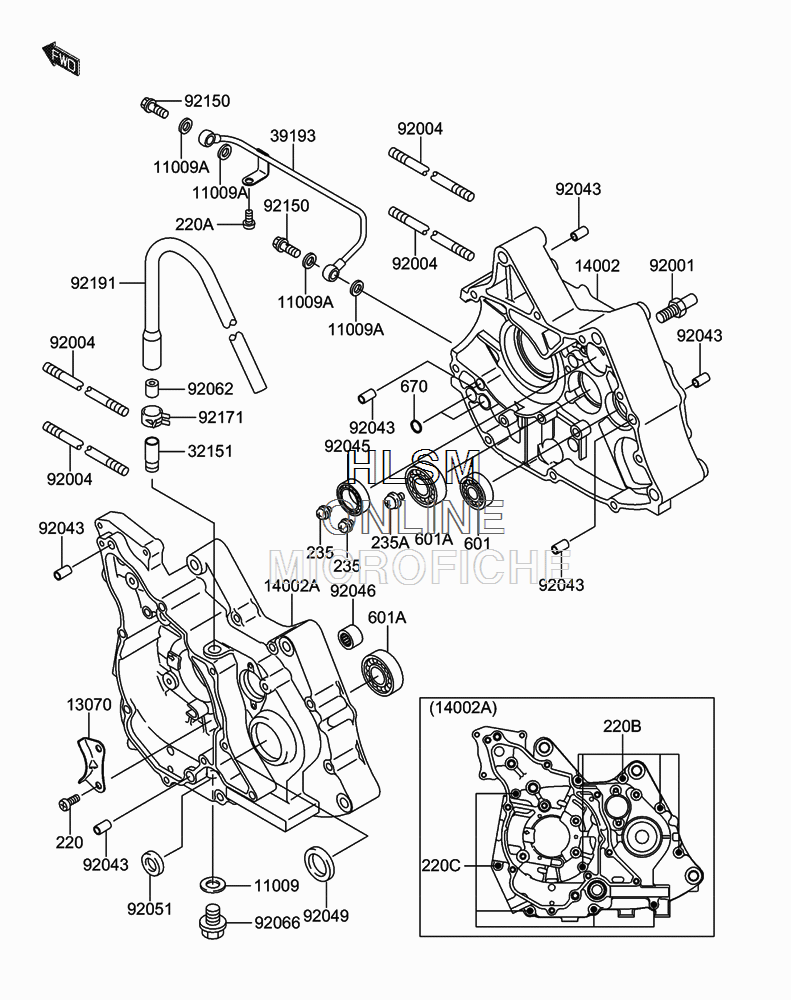

CRANKCASE для Suzuki DR-Z110K5 - 2005 года выпуска
-
№АртикулНазвание
-
11009K1100-91332 GASKET,DRAIN PLUGGASKET,DRAIN PLUG
-
11009AK1100-91344 GASKET,8.2X14X1.0GASKET,8.2X14X1.0
-
13070K1307-01319 GUIDEGUIDE
-
14002K1400-21971 CRANKCASE, RIGHT HANDCRANKCASE, RIGHT HAND
-
14002AK1400-21973 CRANKCASE, LEFT HANDCRANKCASE, LEFT HAND
-
32151K3215-11961 PIPEPIPE
-
39193K3919-31042 PIPE-OILPIPE-OIL
-
92001K9200-11455 BOLT,RETURN SPRINGBOLT,RETURN SPRING
-
92004K9200-41281 STUD,8X208STUD,8X208
-
92043K9204-31263 PIN,6.2X8X14PIN,6.2X8X14
-
92045K9204-51171 BEARING-BALL,6804BEARING-BALL,6804
-
92046K9204-61148 BEARING-NEEDLE,HK1312BEARING-NEEDLE,HK1312
-
92049K9204-91048 SEAL-OIL,SC22325SEAL-OIL,SC22325
-
92051KK920-51005 SEAL-OIL,TB13225.5SEAL-OIL,TB13225.5
-
92062K9206-21090 NOZZLE,5X11.5X12NOZZLE,5X11.5X12
-
92066K9206-61174 PLUG,OIL DRAIN,12X15PLUG,OIL DRAIN,12X15
-
92150K9215-01556 BOLT,BANJO,8X20BOLT,BANJO,8X20
-
92171K9217-11055 CLAMPCLAMP
-
92191K9219-11724 TUBE,BREATHERTUBE,BREATHER
-
220KK220-B0614 SCREW-PAN-CROS,6X14SCREW-PAN-CROS,6X14
-
220AKK220-X0612 SCREW-PAN-CROSSCREW-PAN-CROS
-
220BKK220-X0650 SCREW-PAN-CROSSCREW-PAN-CROS
-
220CKK220-X0675 SCREW-PAN-CROSSCREW-PAN-CROS
-
235KK235-B0510 SCREW-PAN-WP-CROSSCREW-PAN-WP-CROS
-
235AKK235-B0614 SCREW-PAN-WP-CROSSCREW-PAN-WP-CROS
-
601KK601-A6201 BEARING-BALLBEARING-BALL
-
601AKK601-A6203 BEARING-BALL,#6203BEARING-BALL,#6203
-
670KK670-B1510 O RING,10MMO RING,10MM
